Vibrating Wire Strain Gauge

RST Vibrating Wire Strain Gauges are designed to be welded to or embedded in various structures for monitoring strain.

Quantity

Add to Quote

Overview

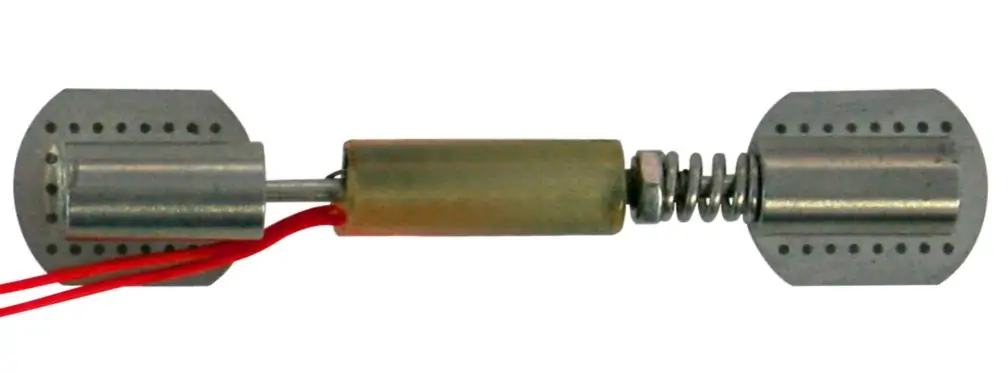

RST Vibrating Wire Strain Gauges are designed to be welded to or embedded in various structures for monitoring strain. RST vibrating wire strain gauges are available in 3 models: VWSG-A, for arc welding to steel structures; VWSG-S, for spot welding to steel structures and VWSG-E for embedment in concrete.

Each strain gauge consists of two end blocks (designed specifically for each application) with a tensioned steel wire between them. As the steel or concrete surface that encompasses the strain gauge undergoes strain, the end blocks will move relative to each other. The tension in the wire between the blocks will change accordingly, thus altering the resonant frequency of the wire. A
vibrating wire readout is utilized to generate voltage pulses in the magnet/coil assembly located at the center of the strain gauge. The magnet/coil assembly plucks the wire and measures the resulting resonant frequency of vibration.

The advantages of vibrating wire strain gauges are that the frequency output is immune to electrical noise, able to tolerate wet wiring common to geotechnical applications, and capable of signal transmission of several kilometers without loss of signal.

The RST VW2106 Vibrating Wire Readout or “DT Series” Data Logger can be used to read the vibrating wire strain gauges.


ITEM VWSG-A VWSG-E VWSG-S-3000 OR VWSG-S-5000
Installation by Arc welding Embedment Spot Welding
Standard Gauge Length 165 mm (6.5 in.) 156 mm (6.125 in.) 50.8 mm (2 in.)
Strain Range 3000 µε 3000 µε 3000 µε / 5000 µε
Sensitivity 1.0 microstrain 1.0 microstrain 0.5 to 1 microstrain
Operating Temperature -4 to 176°F
(-20°C to 80°C)
-4 to 176°F
(-20°C to 80°C)
-4 to 176°F
(-20°C to 80°C)
Thermal Coefficient of Expansion 12.2 ppm/°C 12.2 ppm/°C 12.2 ppm/°C
Accuracy +/- 0.5% F.S. (batch calibration)
+/- 0.1% F.S. (individual calibration – upon request) contact RST for complete details.
+/- 0.5% F.S. (batch calibration)
+/- 0.1% F.S. (individual calibration – upon request) contact RST for complete details.
+/- 0.5% F.S. (batch calibration)
+/- 0.1% F.S. (individual calibration – upon request) contact RST for complete details.
Thermistor Accuracy 0.9°F (0.5°C) 0.9°F (0.5°C) 0.9°F (0.5°C)
Signal Cable EL370004 or EL380004 EL370004 or EL380004 EL370004 or EL380004
Accessories Please contact RST for complete information about accessories: VWSG-A-INST (installation tools)
VWSG-A-ENDS
VWSG-A-SPACER
Please contact RST for complete information about accessories: VWSG-A-INST (installation tools)
VWSG-A-ENDS
VWSG-A-SPACER
Please contact RST for complete information about accessories: VWSG-A-INST (installation tools)
VWSG-A-ENDS
VWSG-A-SPACER

Vibrating Wire Strain Gauge Specifications

The Vibrating Wire Strain Gauge is commonly used for measuring strain in steel members and concrete structures including bridges, piles, dams, tunnels, and buildings.

View illustrations on how the Vibrating Wire Strain Gauge is used for:

Vibrating Wire Strain Gauge Ordering Info

Model number
Length of cable required
Accessories required
