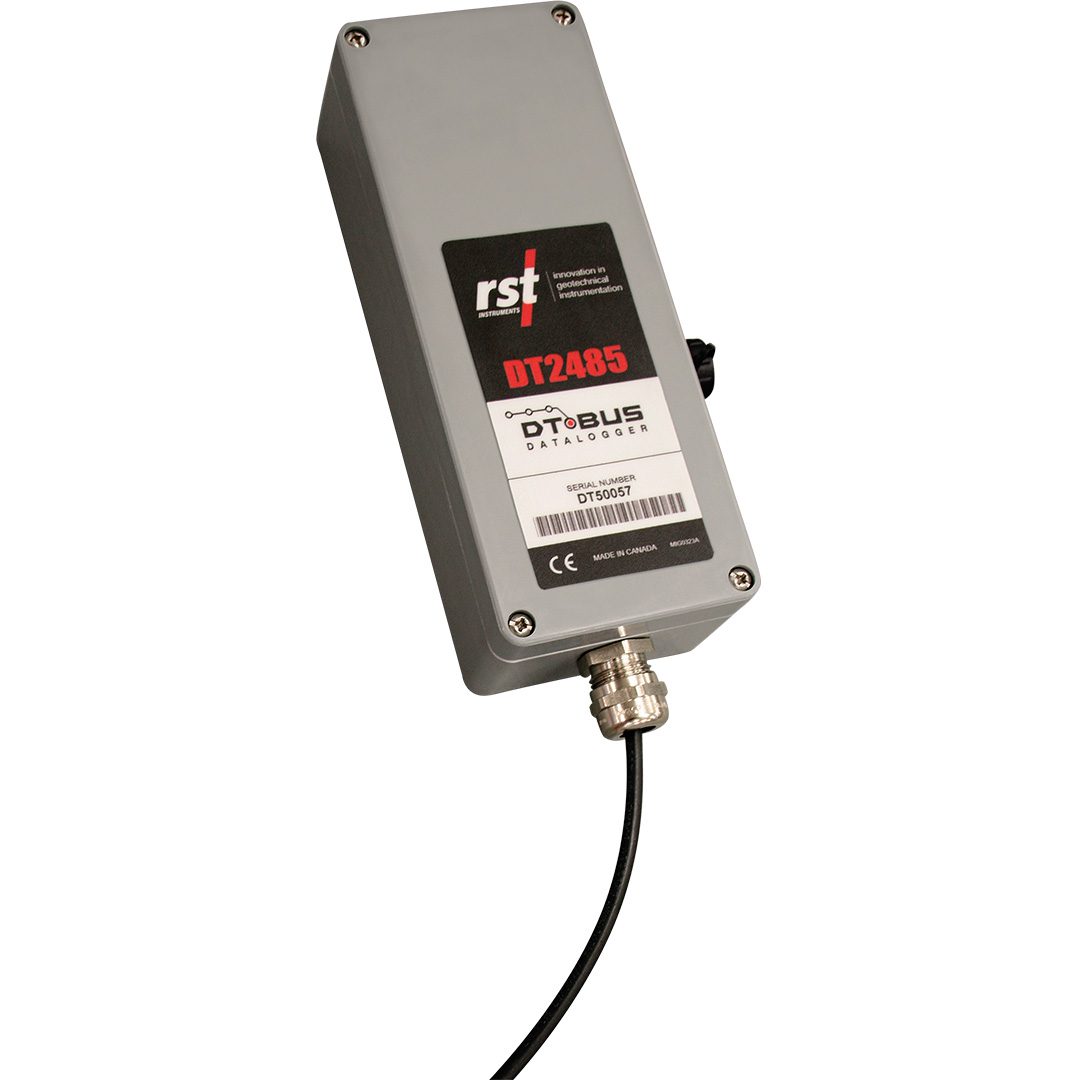

DT2485: DT-BUS Data Logger
The DT2485 enables low cost, stand alone, and radio-linked data collection of In-Place Inclinometer Strings and other digital bus (DT-BUS) sensors.
Overview
DT-BUS sensors/instruments can be incorporated into a wireless, or stand-alone, data collection system by using the DT2485 Data Logger. The DT2485 provides wireless transmission of data collected from the DT-BUS sensors to an RSTAR Hub in a fixed location, or to a portable hub in a DT LINK System. More information on the RSTAR and DT LINK wireless data collection options can be found by viewing their separate brochures at rstinstruments.com.
DT-BUS instruments feature a single cable running the length of an entire chain of connected sensors/instruments, which are all individually addressable. As a result, DT-BUS simplifies installation and minimizes costs by eliminating the need of a separate cable for each sensor and also reduces the amount of cable to be managed during installation. The DT2485 also supports MODBUS sensors.
DT2485: DT-BUS Data Logger Specifications
| ITEM | SPECIFICATION |
| Memory Records | Up to 32,000 records; maximum of 56 sensors (*Note: The DT2485 has a total of 170 channels available; however, each biaxial in-place inclinometer sensor occupies 3 channels: A, B, and temperature). |
| Power Source | Lithium standard cell battery |
| Battery Life | 1-2 years with 10 sensors 6-7 months with 30 sensors (NOTE: above specs based on 1 hour reading frequency and dependent on temperature and use) |
| Resolution | Dependent on connected sensor type |
| Communication | USB Type B connector (radio optional) |
| Dimensions | 190 x 75 x 55 mm (7.48 x. 2.95 x 2.17 in.) |
| Temperature Range | -40°C to 60°C (-40° to 140°F) |
| Enclosure | NEMA 4X (IP66) |
Memory Specifications
| ITEM | SPECIFICATION |
| Memory Size | 4MB |
| Data Transfer | 4,000 data points per second |
| Interval Mode | Biaxial Node: 3 seconds, Uniaxial Node: 2 seconds |
| Variable Rate Mode | 16 user programmable sampling rates |
| Time Format | Month / day / year Hour / minute / second |
| Memory Full Behaviour | “Wrap around” or “fill & stop” option |
The DT2485: DT-BUS Data Logger is commonly used where automated collection of data, wireless or otherwise, is required from instruments that are bussed together along one single cable running the length of the entire chain of connected sensors.
DT2485: DT-BUS Data Logger Ordering Info
| ITEM | PART # |
| DT2485 DT-BUS Data Logger | DT2485 |
| Cable Gland Nut Wrench | DT100 |

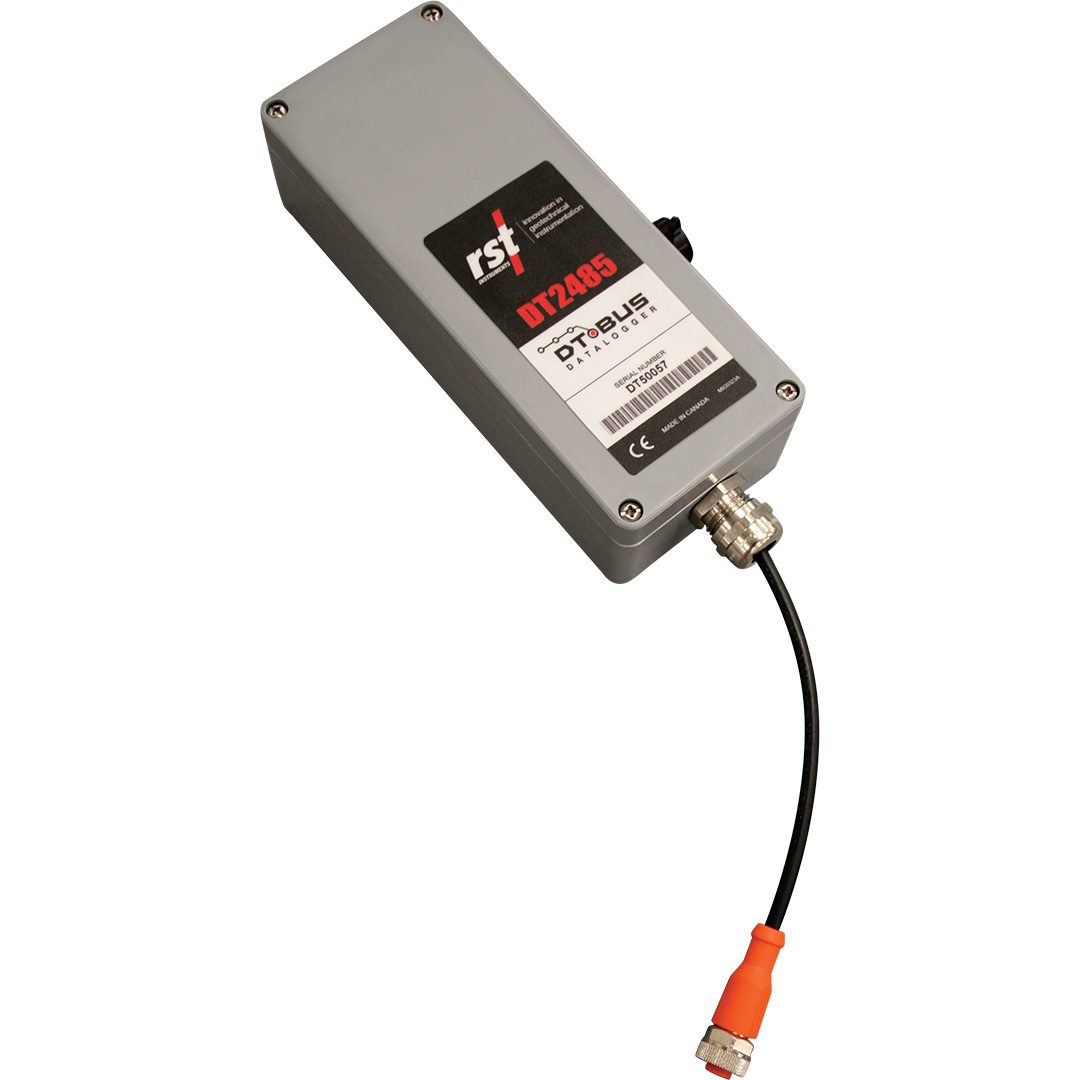

| Flylead with M12 for easy connection | DT2485-M12 |
| Pole Mount Kit | DT20XX-M1 |
| 4” Secondary Enclosure | DT2011-SE |
Options

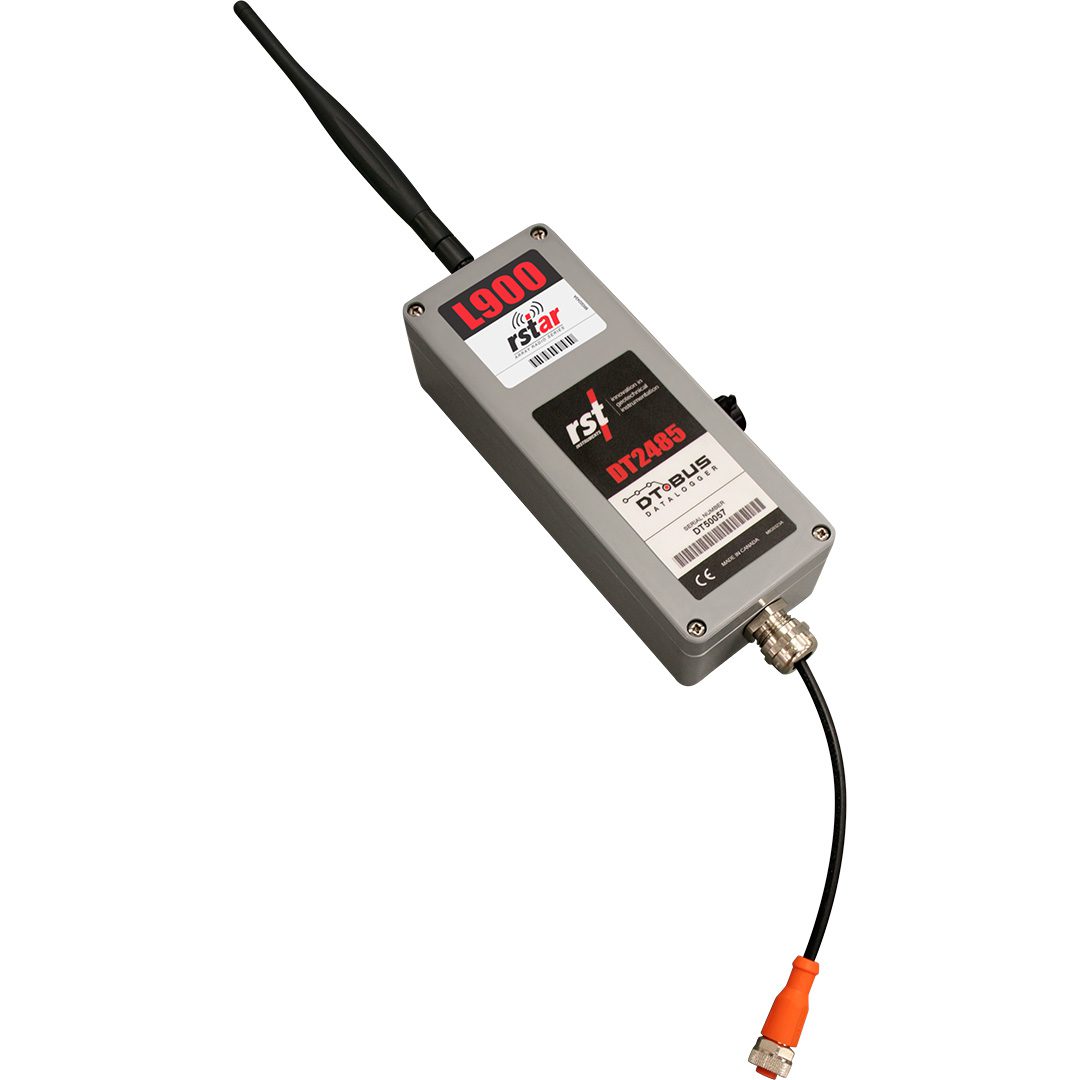

| RSTAR L900 – automated wireless data collection |
| DT LINK – semi-automated wireless data collection |
