Digital MEMS Inclinometer System
For measuring any lateral movement down in the earth, via inclinometer casing, the Digital MEMS Inclinometer System from RST Instruments Ltd. was the first, and is still the best, Digital MEMS Inclinometer System available
Overview
Since 2003, RST’s Inclinometer systems have had the shortest overall length available for a given base length compared to competitive inclinometers.
With a minimum negotiable casing radius of 1.93 m, RST’s Digital MEMS Inclinometer can still traverse a smaller radius bend than all other inclinometers available in the industry. A local microcontroller in the probe manages data collection, applies precision digital calibration, and provides a fast settling time which results in very efficient data collection.
The RST Digital Inclinometer App functions as the data collector. The app is designed for field personnel to easily configure and collect readings from the inclinometer probe.
INCLINOMETER SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Wheelbase | 0.5 m | 24 in |
| Probe diameter | 25.4 mm | 1.00 in |

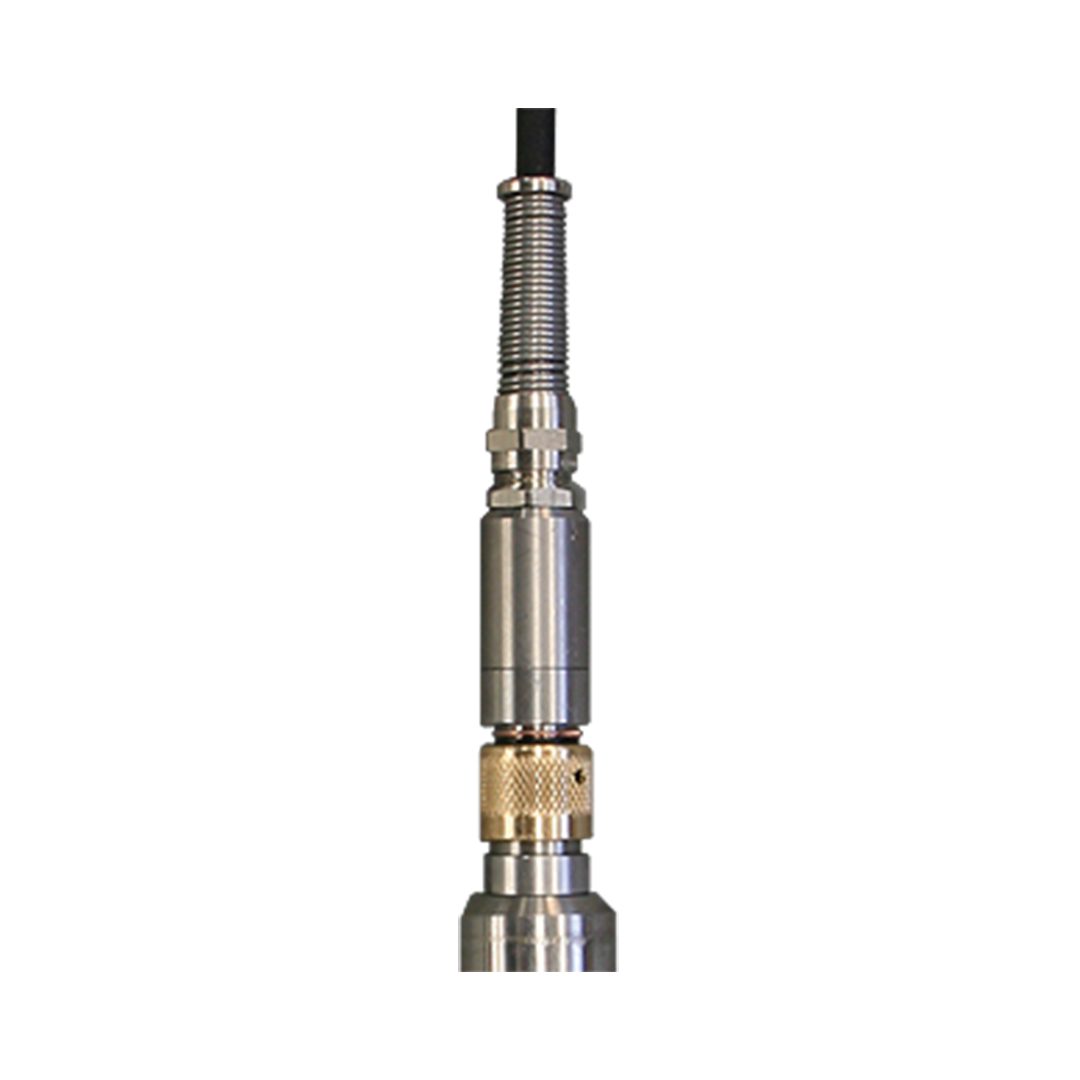

| Probe length (including connector) | 719 mm | 32.6 in |
| Probe weight | 1.06 kg | 2.45 lbs |
| Probe material | Stainless steel | Stainless steel |
| Full-scale range (other ranges available) | ±30 degrees | ±30 degrees |
| Data resolution | 0.005 mm per 500 mm | 0.00002 ft per 2 ft |
| Memory | >1,000,000 readings | >1,000,000 readings |
| Repeatability | ±0.002° | ±0.002° |
| System Accuracy | ±2 mm per 25 m | ±0.1 in. per 100 ft |
| Axis alignment | Digitally nulled | Digitally nulled |
| Temperature rating | -40 to +70°C | -40 to +158°F |
| Sensor Type | MEMS Accelerometer, Biaxial |
CABLE SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Cable diameter | 6.40 mm (±0.1 mm) | 0.25 in |
| Cable weight | 2.3 kg / 50 m | 3.1 lbs / 100 ft |
| Cable breaking strength | 1.8 kN | 400 lbs |
| Cable reinforcement | Kevlar® ‡ | Kevlar® ‡ |
| Cable jacket | Polyurethane | Polyurethane |
| Cable stretch (suspended in 50 m dry borehole) | 7.0 mm | 0.27 in |
CABLE REEL SPECIFICATIONS
| ITEM | METRIC SYSTEM | IMPERIAL SYSTEM |
| Up to 75 m cable reel diameter | 310 mm | 12.2 in |
| 100 to 200 m cable reel diameter | 380 mm | 15 in |
| +225 m cable reel diameter | 460 mm | 18 in |
| Reel weight with 50 m (100 ft.) cable | 4.7 kg | 8.4 lbs |
The Digital Inclinometer System is commonly used for:
- Dams
- Reservoirs
- Geotechnical Applications
- Structural Applications
- Underground Mines
- Open Pit Mines
View illustrations on how the Digital Inclinometer System is used for:
Digital Inclinometer System ordering info
Metric
| PART # | SPECIFICATION |
| IC32003 | 30 m complete system with 0.5 m probe |
| IC32005 | 50 m complete system with 0.5 m probe |
| IC32075 | 75 m complete system with 0.5 m probe |
| IC32010 | 100 m complete system with 0.5 m probe |
| 125, 150, 200, 250, 300 m and longer systems available |
Imperial
| PART # | SPECIFICATION |
| IC32110 | 100 ft complete system with 2 ft probe |
| IC32115 | 150 ft complete system with 2 ft probe |
| IC32120 | 200 ft complete system with 2 ft probe |
| IC32130 | 300 ft complete system with 2 ft probe |
| 400, 500, 600, 800, 1000 ft and longer systems available |
Optional System Accessories
| PART # | SPECIFICATION |
| IC35805 | Dummy Probe 0.5 m wheelbase – METRIC |
| IC35802 | Dummy Probe 2 ft wheelbase – IMPERIAL |
| IC32705 | Digital MEMS Inclinometer Spiral Sensor (see separate brochure) |
| IC35600 | RST Inclinalysis™ – Digital Inclinometer Analysis Software |
| IC35650 | Protective Aluminum Carrying Case – for Inclinometer Probe |
| Horizontal MEMS Inclinometer (probe available in custom lengths in Metric and Imperial units – view separate brochure or contact sales at RST Instruments). |
Included System Components

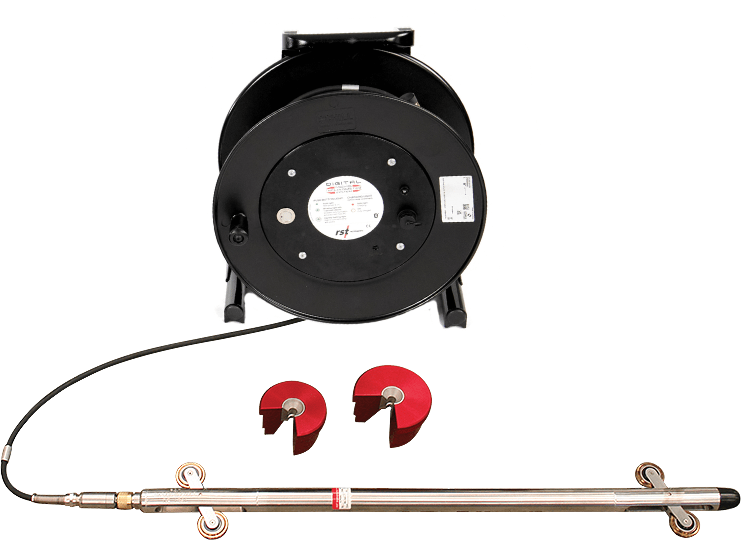

| MEMS Digital Inclinometer probe with protective case |
| Cable Reel with Wireless Communication System |
| Cable Reel Carrying Case |
| Silicone spray for probe/cable connectors |
| Data collection & transfer software |
| 70 & 85 mm cable grips |
| AC Adapter for Reel Battery Charger |
