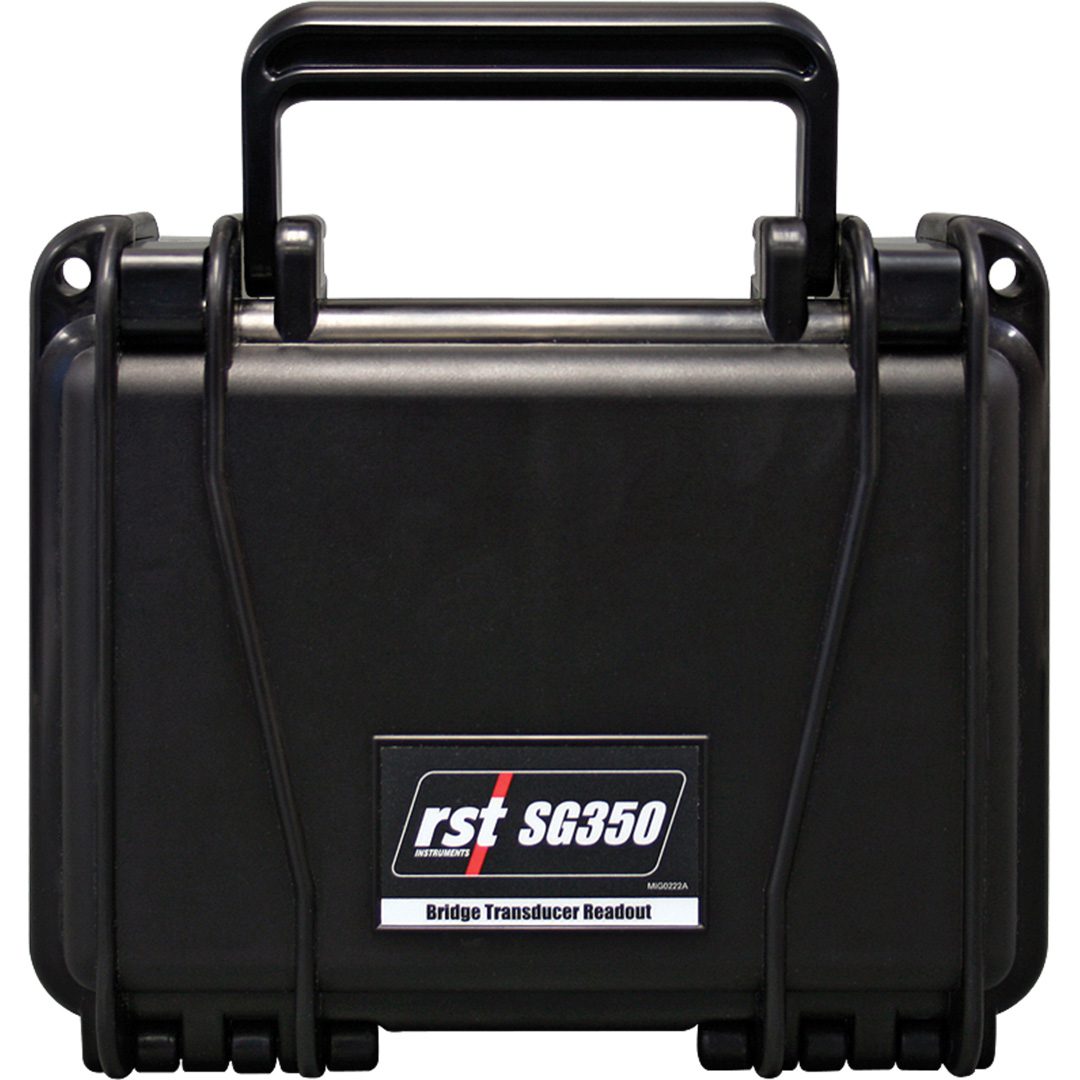

SG350: Bridge Transducer Readout
The SG350 reads, displays, and logs bridge transducers. Unprecedented accuracy, flexible memory options and ease of use make the SG350 Bridge Transducer Readout invaluable for projects requiring monitoring of bridge transducers. Maximum download time is only 15 seconds.
Overview
The SG350 reads, displays, and logs bridge transducers. Unprecedented accuracy, flexible memory options and ease of use make the SG350 Bridge Transducer Readout invaluable for projects requiring monitoring of bridge transducers. Maximum download time is only 15 seconds.

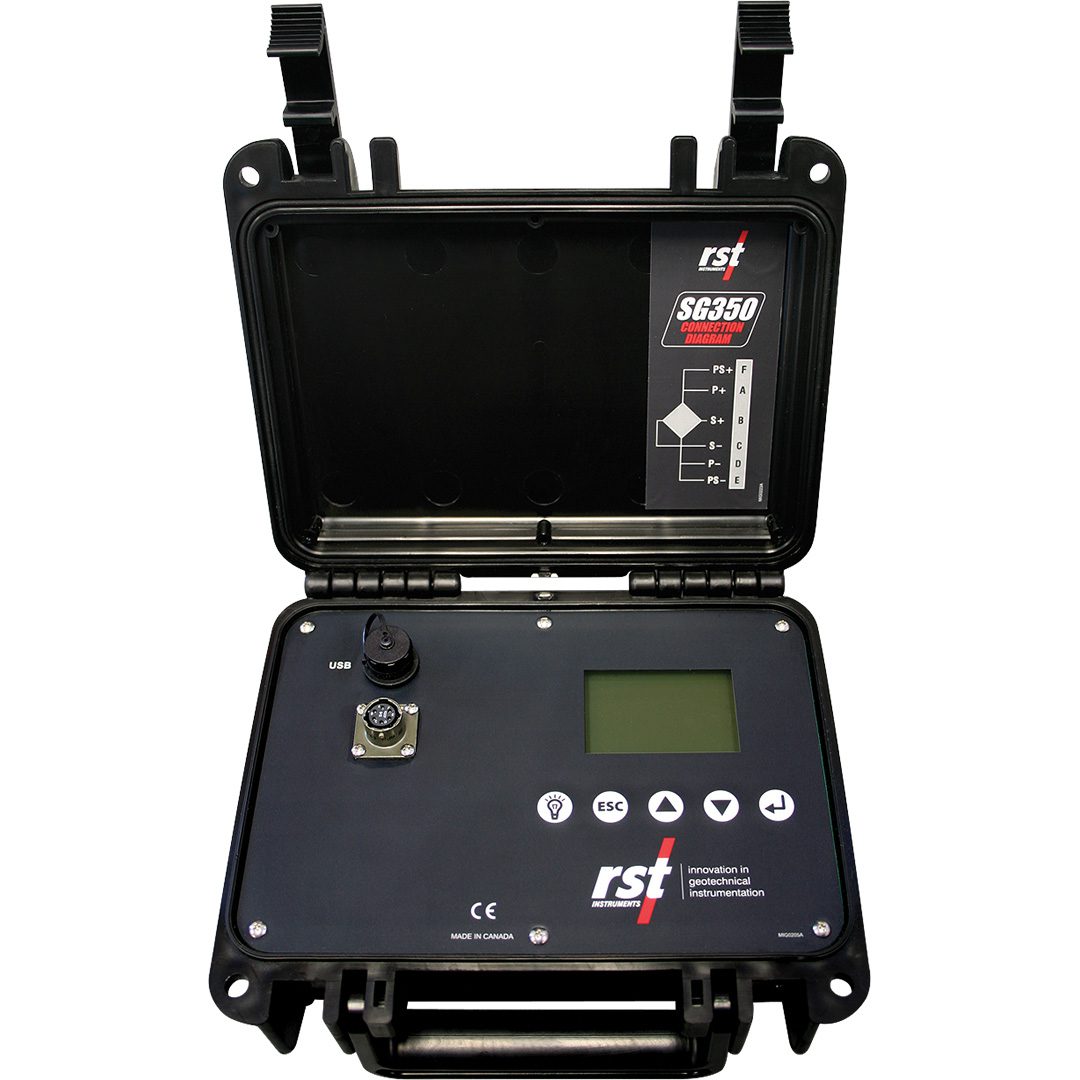

Complementing its high level of accuracy, the SG350 is also designed for maximum efficiency with the user in mind. In addition to the simple power requirements of only 3 “AA” batteries, the SG350 comes well-equipped with standard features such as a large graphics display with backlight and easily accessible USB port and multi-pin transducer connector.
SG350: Bridge Transducer Readout Specifications
| ITEM | SPECIFICATION |
| Excitation | 3.3V |
| Resolution | 0.1μV |
| Display | Graphic 128 x 64 pixels large character display |
| Display Backlight | High efficiency LCD with auto off |
| Max Instrument Locations | 254 |
| Memory Capacity | 11,400 custom labeled points |
| Location Identification String | Up to 20 characters |
| Download Speed | 15 seconds (full memory) |
| Battery | 3 “AA” alkaline |
| Battery Indicator | On-screen, low battery indicator |
| Operating Temperature | -20°C to 60°C |
| Dimensions | W 22 cm x D 19 cm x H 9.5 cm (8.75 x 7.5 x 3.75in.) |
| Weight | 1.1 kg (2.4 lbs) |
SG350: Bridge Transducer Readouts read, display, and log bridge transducers.
| ITEM | PART # |
| SG350 Bridge Transducer Readout | ELSG350 |
File Name
SG350 Bridge Transducer Readout Instruction Manual
Resource Type
Manual| Language | Version | Download |
|---|---|---|
| English | ELM0059C |
|
File Name
RST Readout Host Software
Resource Type
SoftwareNote
Unzip the ZIP file once it is downloaded.
DO NOT connect the USB cable until all software has been installed first.
Run the “RST_Readout_Setup_*.exe” file.
| Language | Version | Download |
|---|---|---|
| English | 1.40.2 |
|
File Name
Readout Host Software Instruction Manual
Resource Type
Manual| Language | Version | Download |
|---|---|---|
| English | ELM0084B |
|
File Name
SG350 Firmware
Resource Type
Software| Language | Version | Download |
|---|---|---|
| English | 3.00 |
|
