RSTAR L900 Wireless Data Acquisition for Geotechnical Instruments
The RSTAR Array Radio Series uses wireless technology to provide automated data acquisition.
Overview
The RSTAR Array Radio Series uses wireless technology to provide automated data acquisition. A complete RSTAR L900 System uses L900 RSTAR Nodes at the sensor level, deployed in a star topology from a continuously active L900 RSTAR Hub, which consists of an L900 RTU interfaced to a FlexDAQ Data Logger. The RSTAR Array Radio Series is based on the 900 MHZ, 868 MHz, and 2.4 GHz spread spectrum band (country dependent) with extensive open-country range through use of simple dipole or directional antennae.
Power requirements for a single RSTAR L900 node is one lithium standard cell. The FlexDAQ can be powered by a solar panel, batteries, or AC power.
L900 SYSTEM SPECIFICATIONS
| ITEM | SPECIFICATION |
| Operating Frequency (country dependent) | 900 MHz, 868 MHz, 2.4 GHz – Spread Spectrum band |
| Access Frequency | 24 hours |
| Outdoor Range | Up to 14 km (at 900 MHz) in open country, depending on frequency and antenna |
| Maximum Nodes | 255 |
| Communication | See diagram on inside |
L900 NODE SPECIFICATIONS
| ITEM | SPECIFICATION |
| Memory | 4 MB |
| Time Format | Month / day / year Hour / minute / second |
| Power Source | 1 lithium standard cell battery |
| Additional Quiescent Current | 15 µA |
| Battery Life | Years |
| Temperature Range | -40°C to 60°C (-40° to 140°F) |
| Enclosure dimensions will vary according to chosen data logger |
A wireless data collection system to quickly get you connected to your data.
View illustrations on how this is used for:

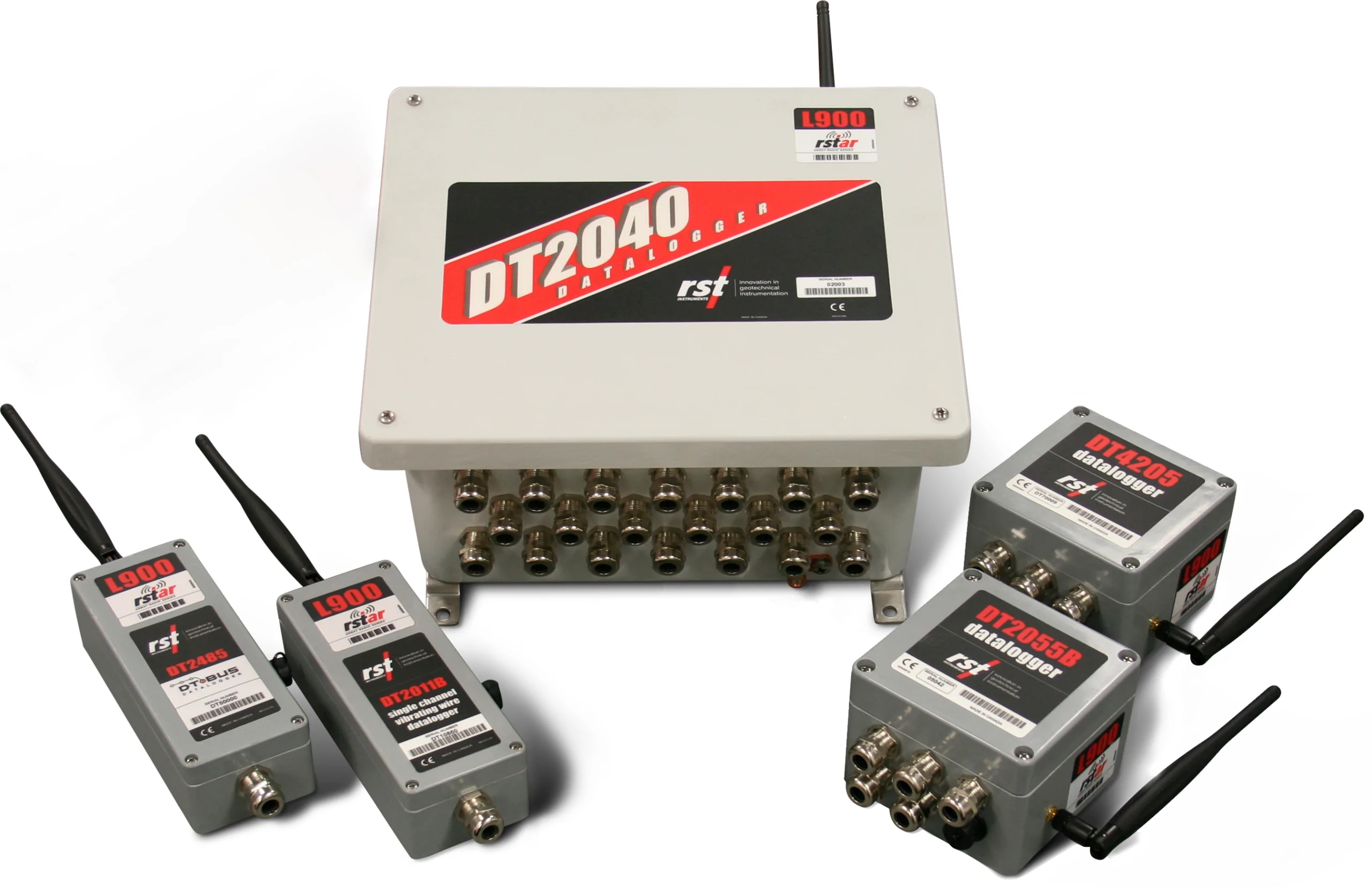

L900 COMPATIBLE DATA LOGGERS
| DATA LOGGER | DESCRIPTION |
| DT2011B | Single Channel Vibrating Wire Data Logger |
| DT2040 | 20/40 Channel Vibrating Wire/Thermistor Data Logger |
| DT2055B | 5/10 Channel Vibrating Wire/Thermistor Data Logger |
| DT2306 | Potentiometer Data Logger |
| DT2350 | 2 Channel Load Cell Data Logger |
| DT2485 | Digital Bus (DT-BUS) Data Logger |
| DT4205 | 5/10 Channel 4-20mA Transmitter Data Logger Thermistor Data Logger |
| DTL201B | Uniaxial Tilt Data Logger |
| DTL202B | Biaxial Tilt Data Logger |
| ELGL1430 | flexDAQ Data Logger CR300 (RSTAR Hub) |
| ELGL1206 | flexDAQ Data Logger CR6 (RSTAR Hub) |
L900 RSTAR RADIO & ANTENNA KIT
Please specify frequency based on location
| FREQUENCY | LOCATION |
| 900 MHz | North America |
| 2.4 GHz | Worldwide |
| 868 MHz | EU Countries/Europe |
| 900 MHz | Australia |
| 900 MHz | Brazil (Anatel) |
| 900 MHz | Chile |
| 900 MHz | Singapore |
*Optional GeoViewer: A sensor configuration with RSTAR is easily incorporated into RST’s GeoViewer Software for multi-sensor management.
