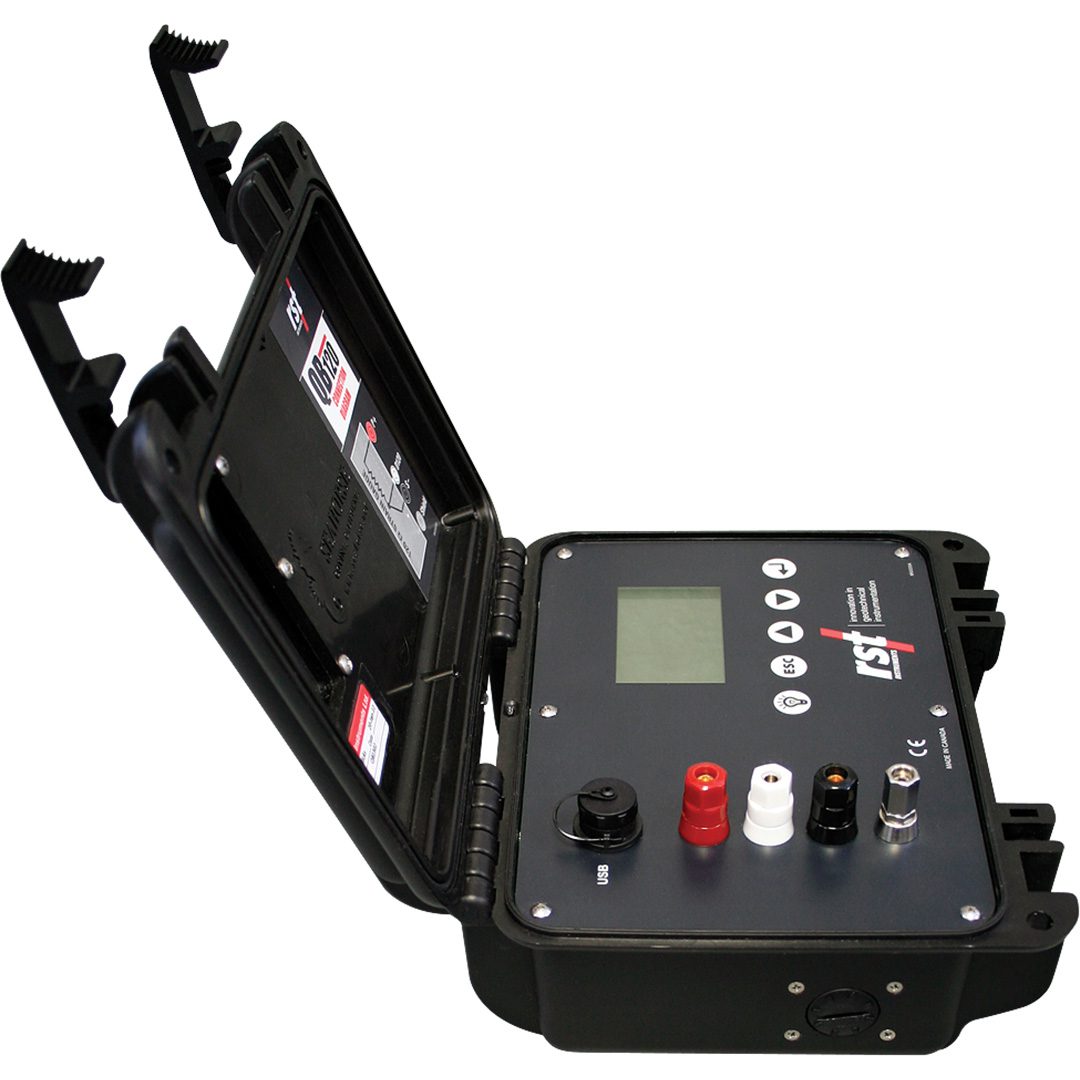

QB120: Resistance Strain Gauge Readout

Category:

The QB120 Resistance Strain Gauge Readout, reads, displays, and logs 1/4 bridge strain gauges. It is also the intended readout for the TENSMEG – Tension Measuring Gauge.

Quantity

Add to Quote

Overview

The QB120 Resistance Strain Gauge Readout, reads, displays, and logs 1/4 bridge strain gauges. It is also the intended readout for the TENSMEG – Tension Measuring Gauge.

Unprecedented accuracy, flexible memory options and ease of use make the QB120 invaluable for projects requiring 1/4 bridge strain gauge monitoring. Maximum download time is only 15 seconds.

Complementing its high level of accuracy, the QB120 is also designed for maximum efficiency with the user in mind. In addition to the simple power requirements of only 3 “AA” batteries, the QB120 comes well-equipped with standard features such as a large graphics display with backlight.


QB120: Resistance Strain Gauge Readout Specifications

ITEM SPECIFICATION
Resolution 0.04 με
Display Graphic 128 x 64 pixels large character display
Display Backlight High-efficiency LCD with auto-off
Max Instrument Locations 254
Memory Capacity 10,900 custom labelled points
Location Identification String Up to 20 characters
Download Speed 15 seconds (full memory)
Battery 3 “AA” alkaline
Battery Indicator On-screen, low battery indicator
Operating Temperature -20°C to 60°C
Dimensions W 22 cm x D 19 cm x H 9.5 cm (8.75 x 7.5 x 3.75in.)
Weight 1.1 kg (2.4 lbs)

QB120: Resistance Strain Gauge Readouts reads, displays, and logs 1/4 bridge strain gauges.

QB120 – Resistance Strain Gauge Readout Ordering Info

ITEM PART #
QB120 Resistance Strain Gauge Readout ELTM-QB120

File Name

QB120 Resistance Strain Gauge Readout Instruction Manual

Resource Type

Manual
Language Version Download
English ELM0055B

File Name

QB120 Resistance Strain Gauge Readout

Resource Type

Brochure
Language Version Download
English MIB0059B
Portugese MIB0086A
