Inclinometer Casing
RST’s Inclinometer Casing is engineered to be assembled quickly and accurately for long and short term monitoring in the most adverse field conditions.
Overview
RST’s Inclinometer Casing is engineered to be assembled quickly and accurately for long and short term monitoring in the most adverse field conditions. It is suited to be installed in boreholes, embankments, piles, set into concrete or attached to structures.
The casing serves as an access tube to guide a MEMS-based inclinometer probe in the two orthogonal directions of measurement. Changes in the output of the probe caused by the deformation of the casing, is proportional to the sine of the angle of inclination of the long sensor axis from vertical. These displacements are incrementally summed to provide profiles of total displacement versus depth.
Key to quality inclinometer casing is not only the material, but the quality and shape of the grooves. The inclinometer probe utilizes grooves in the casing to control the azimuth of the inclinometer probe.
RST casing is manufactured from non-recycled virgin ABS resin. While more costly than common PVC resin, ABS is preferred due to superior flexibility, stability and low temperature impact resistance. Using recycled resin degrades the performance of casing. All RST casing is machined to ensure the highest quality possible.
Inclinometer Casing Specifications
| ITEM | 70 MM (2.75 IN.) OD | 85 MM (3.34 IN.) OD |
| Casing OD (including coupling) | 70 mm (2.75 in.) | 85 mm (3.34 in.) |
| Casing ID | 59 mm (2.32 in.) | 73 mm (2.87 in.) |
| Casing Length | 5 or 10 ft. (1.5 or 3 m) | 5 or 10 ft. (1.5 or 3 m) |
| Casing Weight | 1.27 kg/m (.85 lbs/ft.) | 1.49 kg/m (1.0 lbs/ft.) |
| Material | ABS Plastic | ABS Plastic |
| Groove Spiral | ≤ 0.3 deg./10 ft. | ≤ 0.3 deg./10 ft. |
Glue & Snap Specifications – 70 mm
- Load Test (738 kg (1630 lbs.))
- Collapse Test (17.2 bar (250 psi))
TELESCOPIC SECTION SPECIFICATIONS
| ITEM | 70 MM (2.75 IN.) CASING | 85 MM (3.34 IN.) CASING |
| Telescopic Section OD | 76.96 mm (3.03 in.) | 91.44 mm (3.6 in.) |
| Compressed Length | 457 mm (18 in.) | 457 mm (18 in.) |
| Extended Length | 609 mm (24 in.) | 609 mm (24 in.) |
| Range | 152 mm (6 in.) | 152 mm (6 in.) |
| Weight | 0.77 kg (1.7 lbs.) | 0.9 kg (2 lbs.) |
Inclinometer casing is commonly used for:
- Pilings
- Landslides and slope stability
- Subsidence control
- Under large storage tanks
- Embankment and dam stability
- Bridge pier, abutments deflection
- Areas next to large excavations
View illustrations on how inclinometer casing is used for:
Glue & Snap Ordering Info
Glue & Snap provides the speed and convenience of a snap-together flush coupling combined with the low cost and high tensile/high torsional strength of a glue joint. Installation is simply done by applying a bead of glue to the male end, snap casing together and insert down hole.
| ITEM | 70 MM (2.75 IN.) | 85 MM (3.34 IN.) |
| 1.52 m length (5 ft.) | ICGC205 | ICGC305 |
| 1.50 m length (4.92 ft.) | ICGC205M | ICGC305M |
| 3.05 m length (10 ft.) | ICGC210 | ICGC310 |
| 3 m length (9.84 ft.) | ICGC210M | ICGC310M |

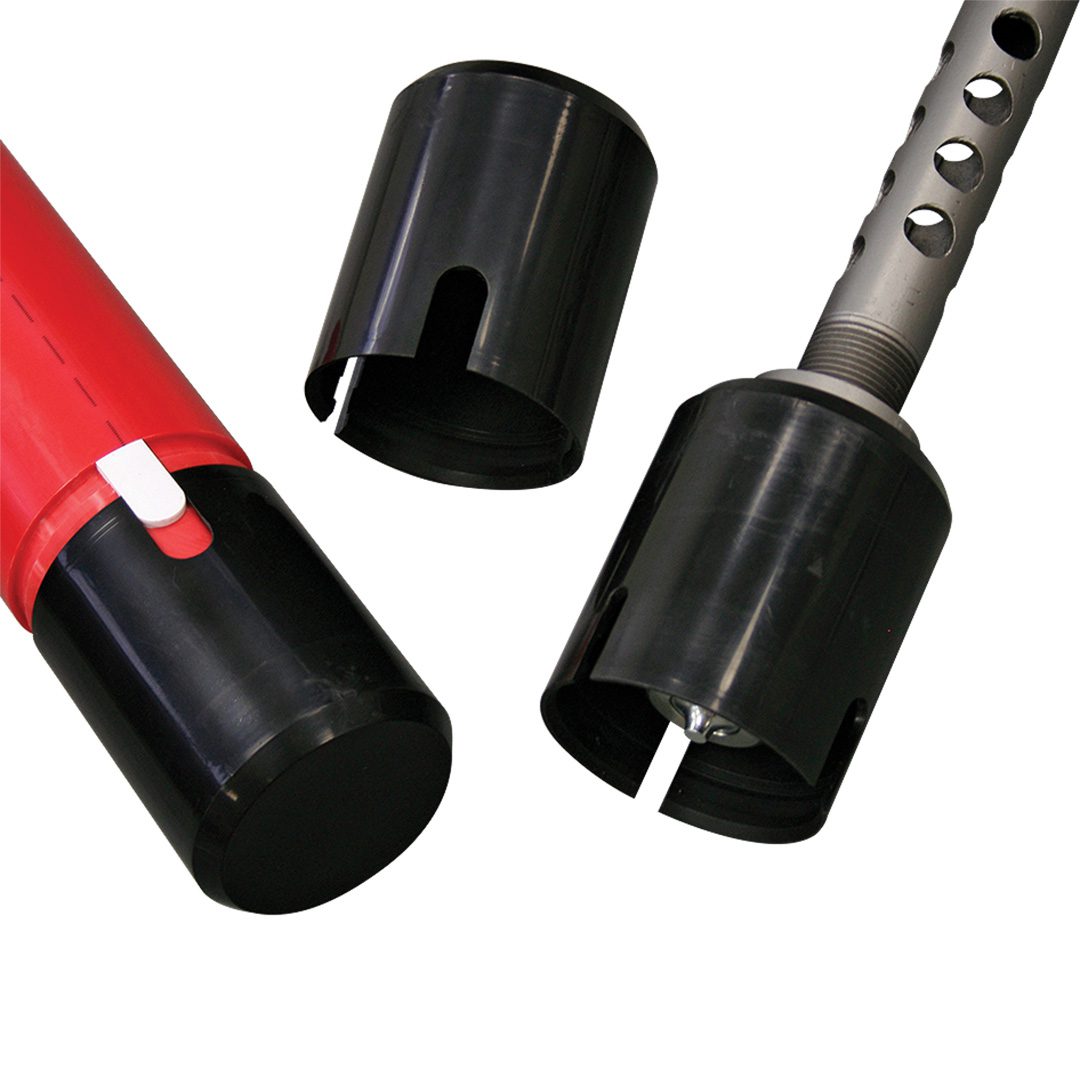

| Top Cap | ICC2TC | ICC3TC |
| Bottom Cap | ICGC2BC | ICGC3BC |
| Casing Anchor | ICGC2CA | ICGC3CA |
| Casing Anchor with Grout Cap | ICGC2CG | ICGC3CG |
| Grout Cap | ICGC2CP | ICGC3CP |
| Repair Coupling | ICGC2RC | ICGC3RC |
| Alignment Tool for Coupling | IC1002 | IC1003 |
| ABS Solvent Cement (1/2 pint) (NOTE: cannot be air shipped) | IC1020 | IC1020 |
| Female Grout Adapter 3/4” NPT | IC1200 | IC1200 |
| Telescopic Section | ICGC2TS | ICGC3TS |

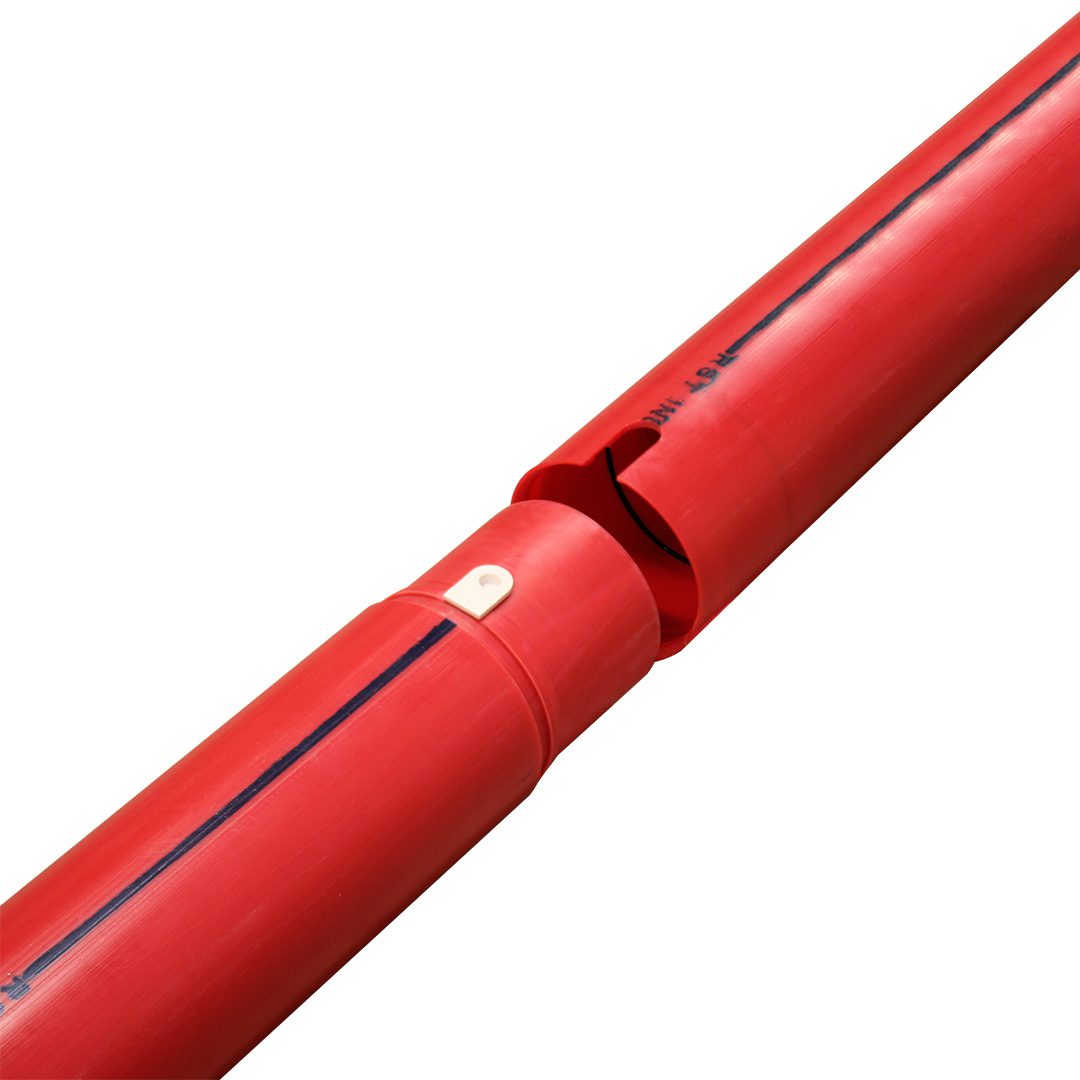

Snap Seal Ordering Info
Snap Seal is the original O-ring sealed coupling system, which does not require glue, pop rivets, screws, or shear wires. This patented, innovative system allows casing sections to lock together while maintaining precise groove alignment and high collapse strength. The Snap Seal system is flush coupled for ease of installation in hollow stem augers and casing advancers.
| ITEM | 70 MM (2.75 IN.) | 85 MM (3.34 IN.) |
| 1.52 m length (5 ft.) | ICSC205 | ICSC305 |
| 1.50 m length (4.92 ft.) | ICSC205M | ICSC305M |
| 3.05 m length (10 ft.) | ICSC210 | ICSC310 |
| 3 m length (9.84 ft.) | ICSC210M | ICSC310M |
| Top Cap | ICC2TC | ICC3TC |
| Bottom Cap | ICSC2BC | ICSC3BC |
| Casing Anchor | ICSC2CA | ICSC3CA |
| Casing Anchor with Grout Cap | ICSC2CG | ICSC3CG |
| Grout Cap | ICSC2CP | ICSC3CP |
| Repair Coupling | ICSC2RC | ICSC3RC |
| Alignment Tool for Coupling | IC1002 | IC1003 |
| ABS Solvent Cement (1/2 pint) (NOTE: cannot be air shipped) | IC1020 | IC1020 |
| Female Grout Adapter 3/4” NPT | IC1200 | IC1200 |
| Telescopic Section | ICSC2TS | ICSC3TS |

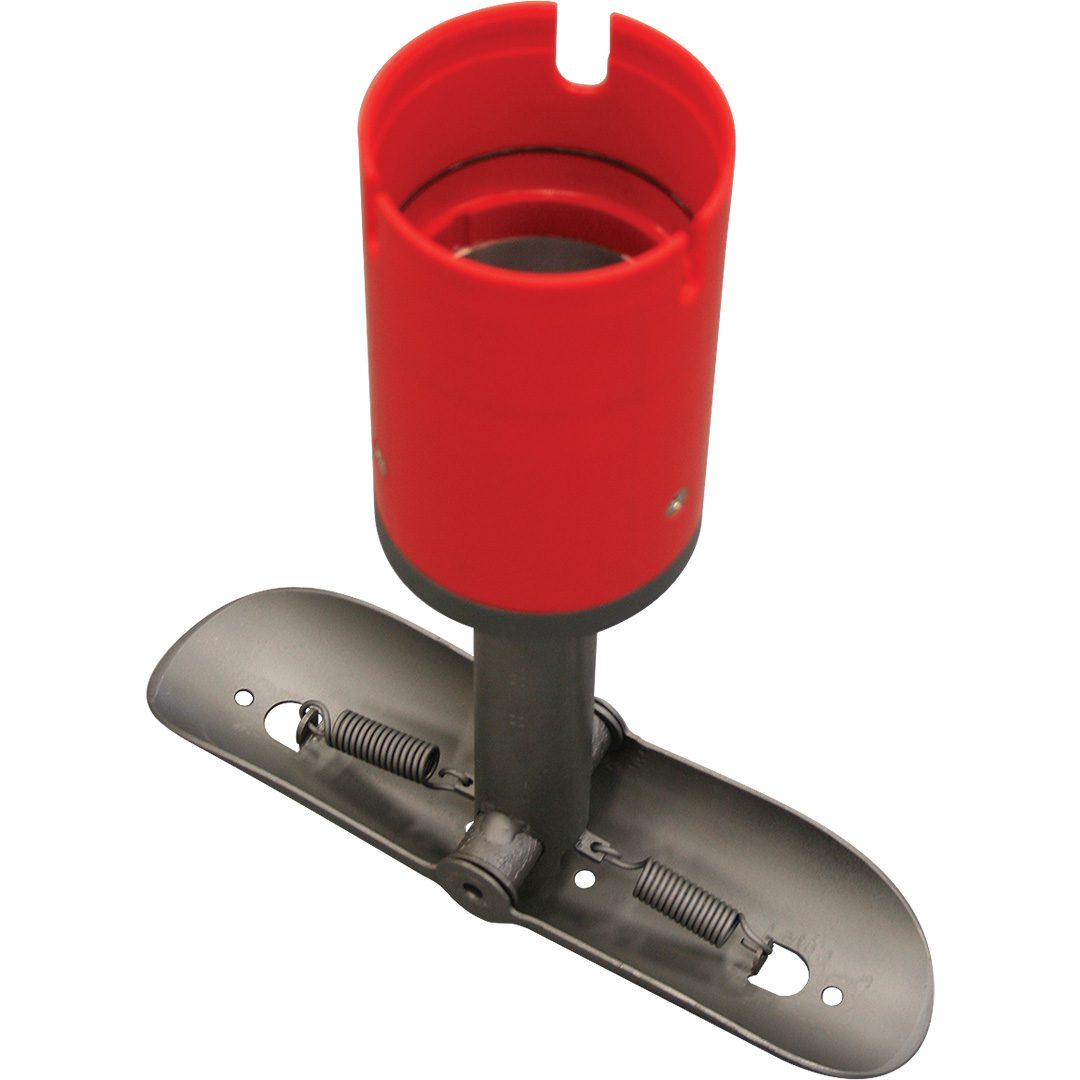

Inclinometer Casing Anchor
The Inclinometer Casing Anchor prevents buoyant uplift of inclinometer casing during installation. It is affixed to the bottom of the inclinometer casing prior to inserting it into the drill-rod/borehole. As soon as the anchor exits the bottom opening of the drill-rod/borehole, the spring loaded arms of the anchor are automatically extended to grip the borehole wall.
Telescopic Section
When vertical heave or settlement is anticipated
to exceed 1-2%, Inclinometer Casing Telescoping Sections must be used to allow axial movement of the casing while minimizing distortion due to vertical strain. Telescopic sections must be inserted appropriately extended or collapsed to accommodate the expected settlement/rebound. Settlement sections are available in 70 mm (2.75 in.) and 85 mm (3.34 in.) and each section can accommodate up to 150 mm (6 in.) of compression or heave.
