GAA Slope Monitoring System

Category:

Geo-Acoustic Aware (GAA) is a low-cost, reliable solution for the spatial infill of ground movement data instead of traditional instrumentation (Inclinometers, ShapeArray) at shallow depths, and to allow for early warning of movement.

Quantity

Add to Quote

Overview

Geo-Acoustic Aware (GAA) is a low-cost, reliable solution for the spatial infill of ground movement data instead of traditional instrumentation (Inclinometers, ShapeArray) at shallow depths, and to allow for early warning of movement. It is used in conjunction with Inclinometers, In-Place Inclinometers, ShapeArray (SAA), piezometers, weather sensors, and other instruments to monitor slow to moderate slope movement rates in landslides, roads and highways, pipelines and tailings dams.

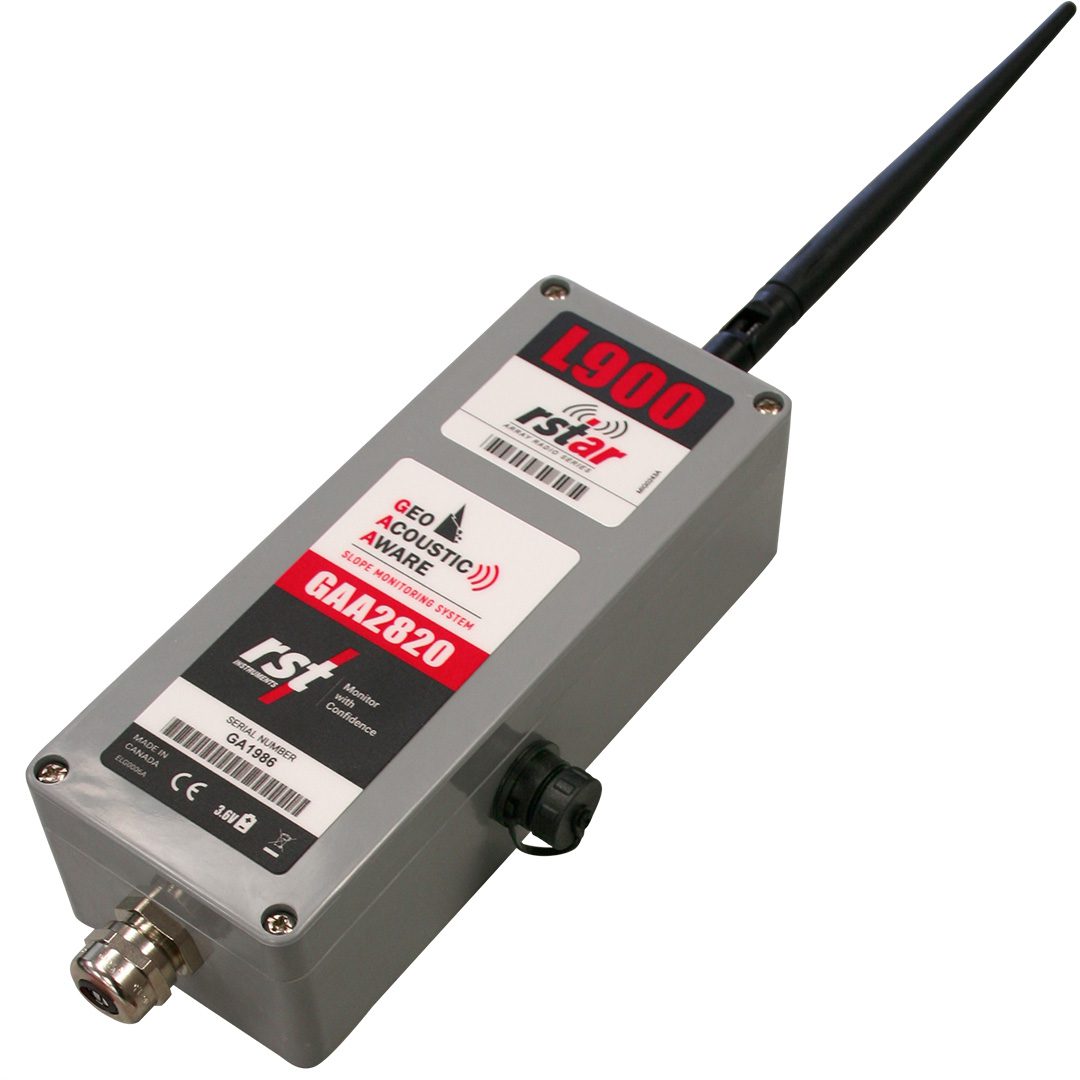

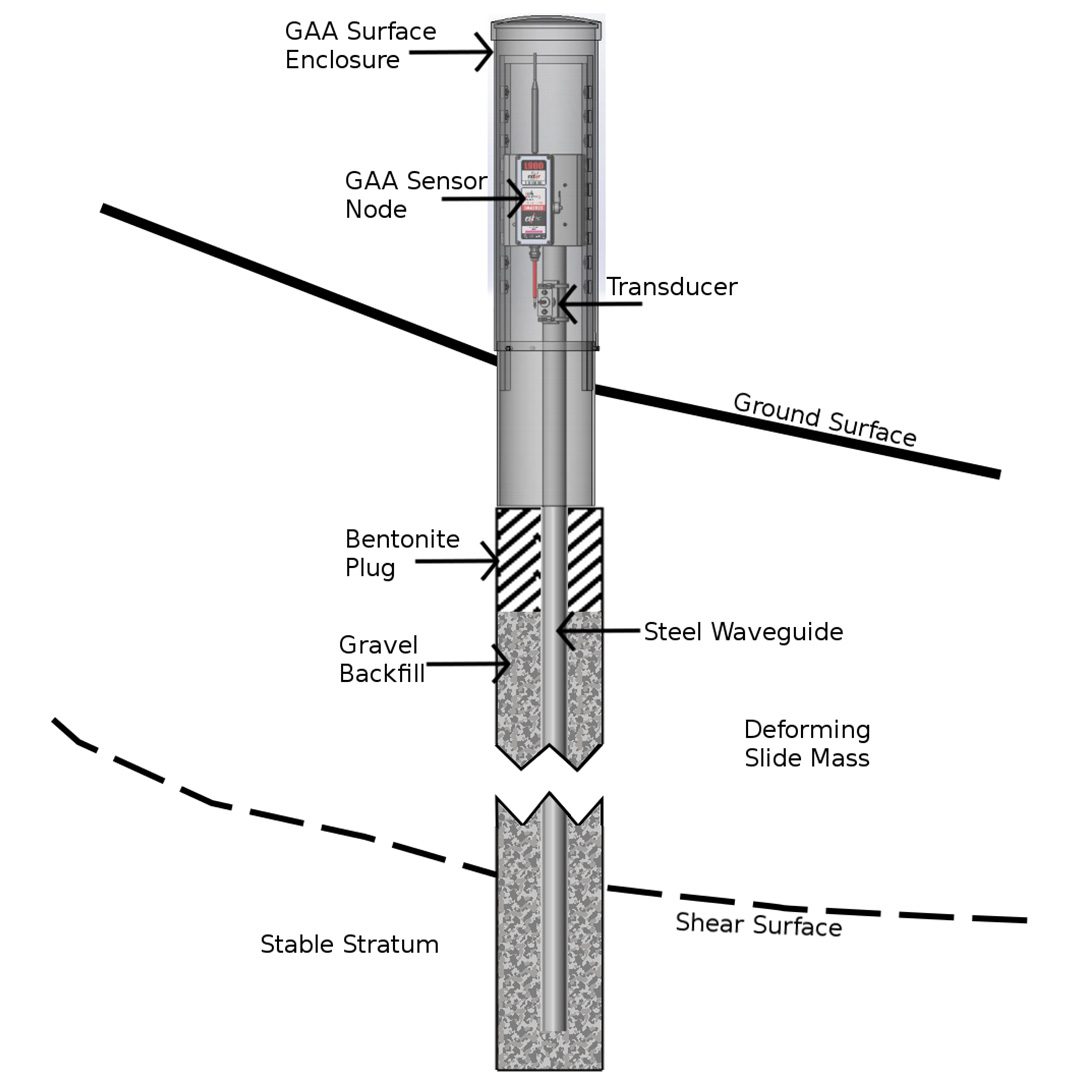

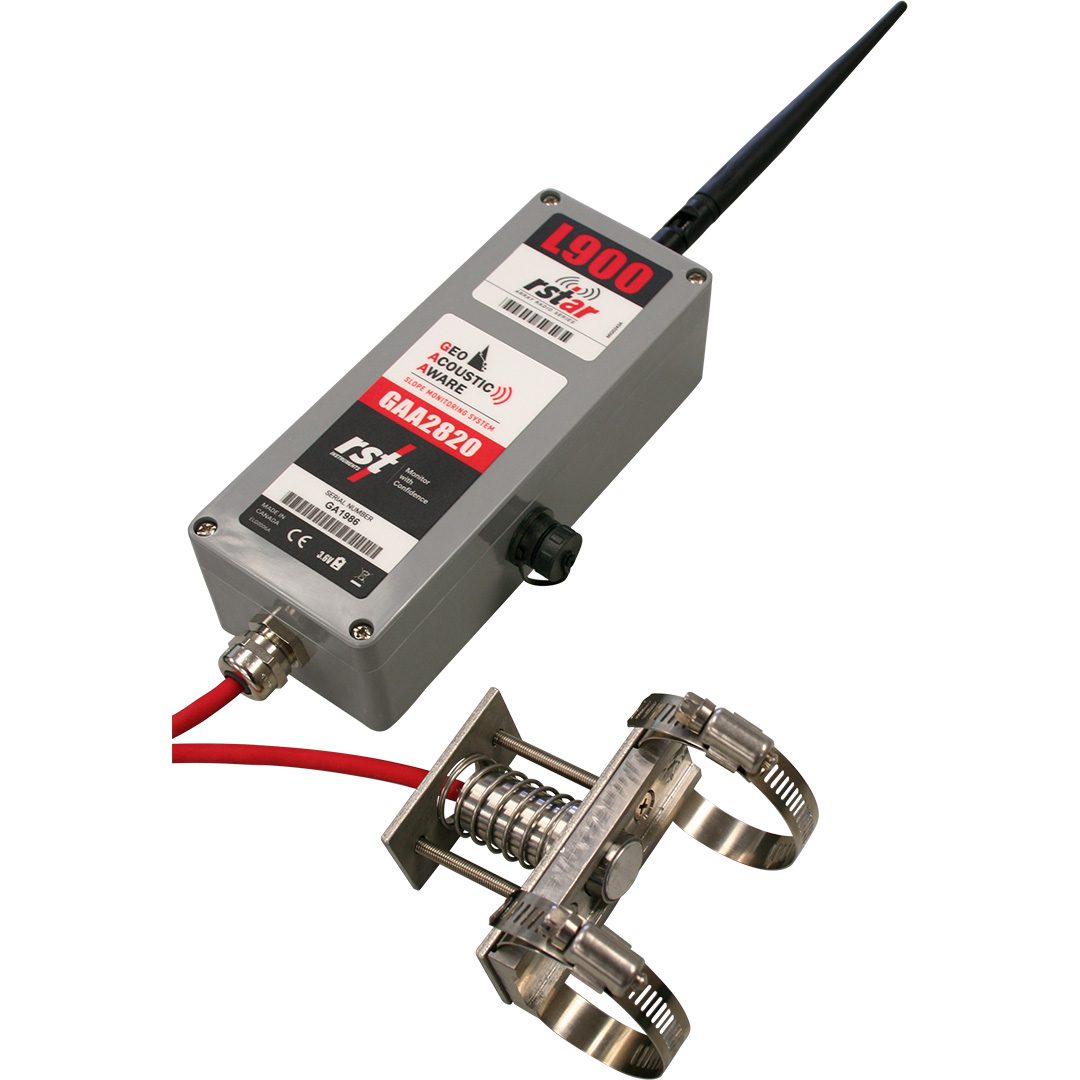

The sensor is attached to a steel pipe (waveguide) in a borehole backfilled with packed angular gravel. The GAA sensor detects acoustic emission stress waves generated by inter-particle friction. Increases in acoustic emission stress waves indicate accelerating slope movement. The sensor is connected to the GAA2820 Data Logger for real-time monitoring.

Acoustic emission stress waves are counted by the data logger during the reading interval (1 hour recommended) and the recorded value is the sum of the waves during this period. This recorded value is called Ring Down Count (RDC). RDC/hour is correlated to the landslide velocity scale presented by Cruden & Varnes (1996)*. The RDC represents an approximation of movement velocity and order of magnitude changes in RDC represents acceleration of the ground.

GAA boasts increased range over other solutions. In cases of large-displacement where traditional instrumentation will exceed their range, GAA can measure, record and transmit data as the waveguide continues to deform in the ground (>500 mm displacement).

The waveguide and data logger are simple to install. The data logger setup and future data collection is done using a laptop. RST’s DT Logger Host Software is also included.
Wireless communication via the RSTAR network allows the data to be combined with other data sets and boasts a large open country Hub-to-Node range.


Geo-Acoustic Aware Specifications

ITEM SPECIFICATION
Reporting Units Ring Down Count (RDC)
Memory Records Up to 600,000 records including time, RDC
Power Source Lithium ‘D’ cell battery
Battery Life Up to 1.5 years (assuming 1 hour reading frequency) / 4 memory fills depending on temperature and use
Communication RSTAR, USB (for setup)
Dimensions 190 x 75 x 55 mm (7.48 x. 2.95 x 2.17 in.)
Temperature Range -40°C to 60°C (-40° to 140°F)
Enclosure NEMA 4X (IP65)



MEMORY SPECIFICATIONS

ITEM SPECIFICATION
Memory Size 4MB
Data Transfer 2,300 data points per second
Interval Mode 1 hour recommended (optional 15 minutes)
Time Format Month / day / year   Hour / minute / second
Memory Full Behaviour “Wrap around” or “fill & stop” option

The GAA Slope Monitoring System is commonly used for spatial infill of data from traditional instruments in landslides, roads and highways, pipelines and tailings dams.

View illustrations on how the GAA Slope Monitoring System is used for:

Geo-Acoustic Aware Ordering Info

ITEM PART #
GAA Surface Assembly (includes sensor and mount, data logger, antenna and secondary enclosure) GAA2820
Waveguide (3 m length, and threaded) GAA150410
Waveguide Coupling GAA1504C

File Name

GAA Slope Monitoring System Instruction Manual

Resource Type

Manual
Language Version Download
English ACM0001B

File Name

Geo-Acoustic Aware (GAA) Slope Monitoring System

Resource Type

Brochure
Language Version Download
English ACB0002B
Portugese ACB0003A
Spanish ACB0001B
