RST’s Digital Tilt Loggers are low-cost, battery-powered data loggers and tilt meter in a single, compact unit.

Quantity

Add to Quote

Overview

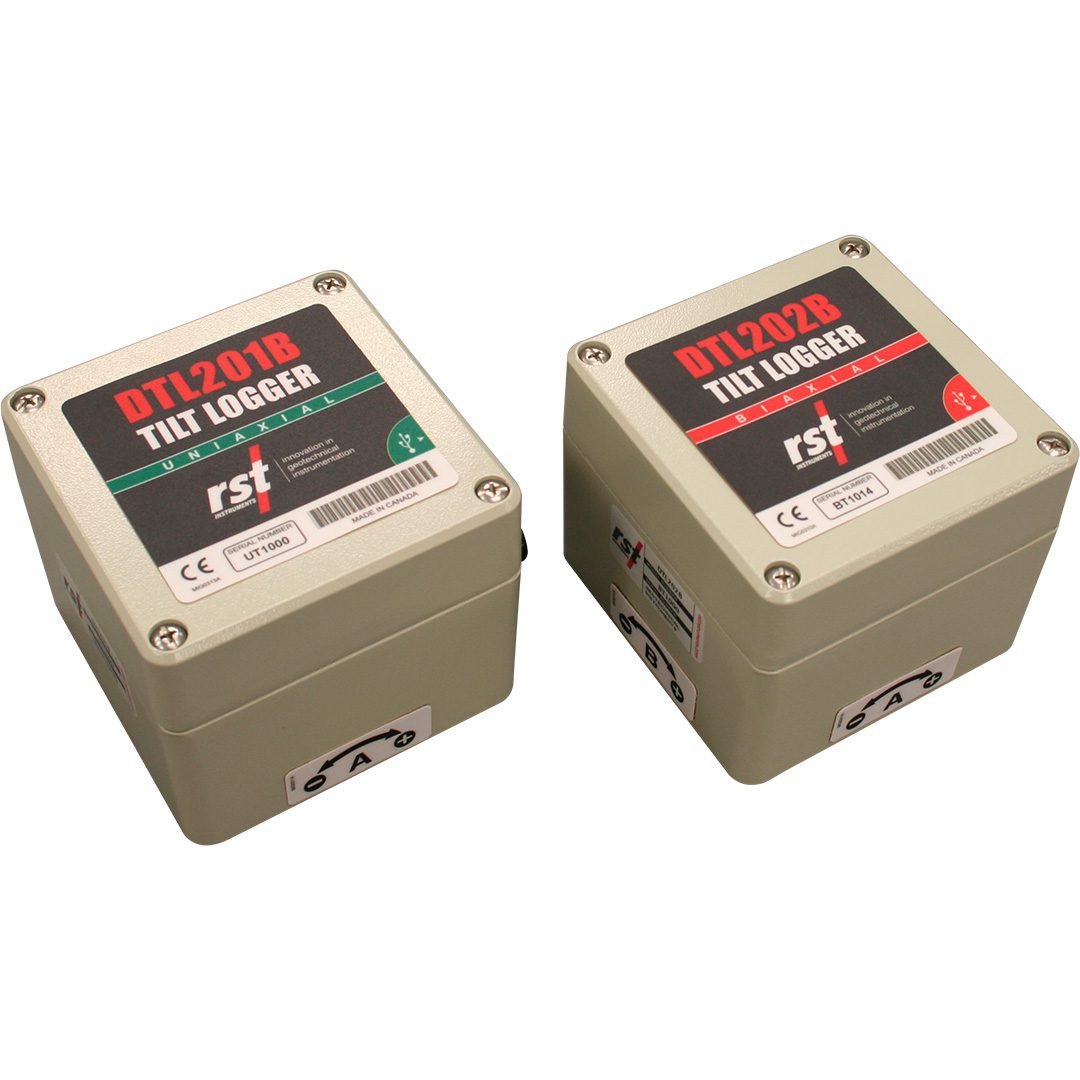

RST’s family of Digital Tilt Loggers are low cost, battery powered data loggers and tilt meter in a single, compact unit. They measure tilt in either one (uniaxial) or two (biaxial) perpendicular axes in the plane of the base and are intended to be permanently installed to provide
long term observation with maximum resolution and sensitivity.

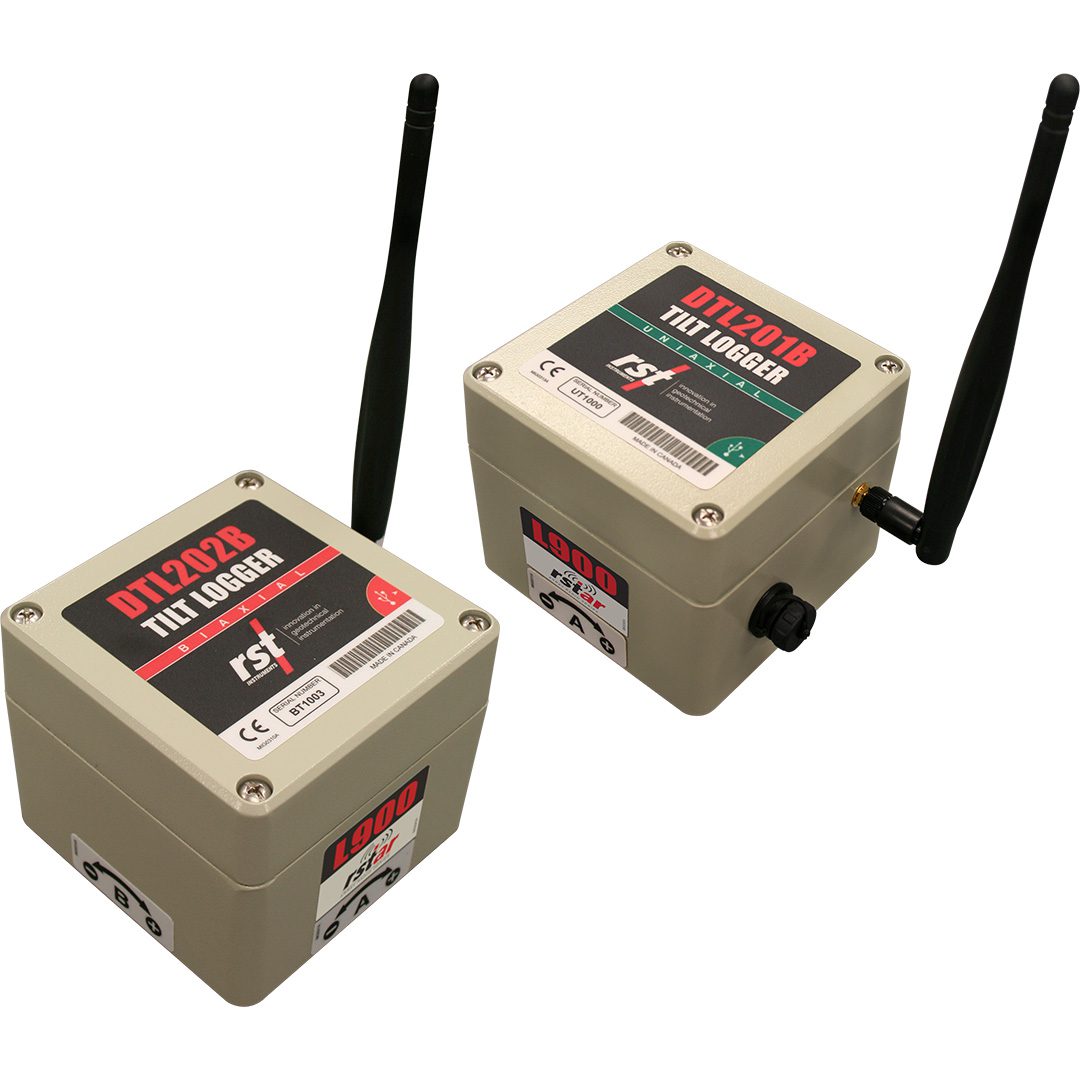

The DTL201B (uniaxial) and DTL202B (biaxial) Digital Tilt Loggers are designed for either manual monitoring or remote data acquisition. The optional radio antenna allows them to be incorporated into an RSTAR Array Radio System for automated, remote data acquisition. The optional radio antenna can also be used for enabling the DTL201B and DTL202B for RST’s DT LINK which allows wireless collection of data logger data in hard to access areas.

RST’s Digital Tilt Loggers consists of one or two MEMS tilt sensors, a battery supply, non-volatile memory, USB cable and Windows® host software. The electronics are housed in a NEMA 4X (IP-65) enclosure for environmental protection, and is typically bolted to the structure via mounting plate or bracket.


DTL201B/DTL202B: Uniaxial/Biaxial Digital Tilt Loggers Specifications

ITEM SPECIFICATION
Range ±15°
Resolution ±2 arc sec. (±0.0006°) (0.01 mm/m)
Non-linearity ±0.0125% F.S. (±0.002°) (0.03 mm/m)
Repeatability ±0.0125% F.S. (±0.002°) (0.03 mm/m)
Sensor MEMS (Micro-Electro-Mechanical Systems) Accelerometer
Power Source Lithium ‘C’ or ‘D’ cell battery
Battery Life > 1-2 years
Communication – USB Type B connector
– Optional radio for RSTAR and/or DT LINK
Operating Temp. -40 to 60°C (-40 to 140°F)
Dimensions 120 x 120 x 100 mm (4.72 x 4.72 x 3.94 in.)

MEMORY SPECIFICATIONS

ITEM SPECIFICATION
Memory Size 4MB
Data Transfer 2,300 data points per second
Interval Mode 10 seconds to 1 day
Variable Rate Mode 16 user programmable sampling rates
Time Format Month / day / year Hour / minute / second
Memory Full Behaviour “Wrap around” or “fill & stop” option

DTL201B/DTL202B: Uniaxial/Biaxial Digital Tilt Loggers are commonly used for:

  • Monitoring and log tilt data from retaining and building walls.
  • Tilt of concrete dams.
  • Structural load testing.
  • Landslide monitoring.
  • Building safety along adjacent excavations.
  • Applications where the failure mode is expected to have a rotational component.
  • Observation of benches and berms in open pit mines.
  • Bridge pier monitoring.
  • Ground subsidence.

View illustrations on how DTL201B/DTL202B: Uniaxial/Biaxial Digital Tilt Loggers are used for:

DTL201B/DTL202B: Uniaxial/Biaxial Digital Tilt Loggers ordering info

ITEM PART #
Uniaxial Tilt Logger DTL201B
Biaxial Tilt Logger DTL202B

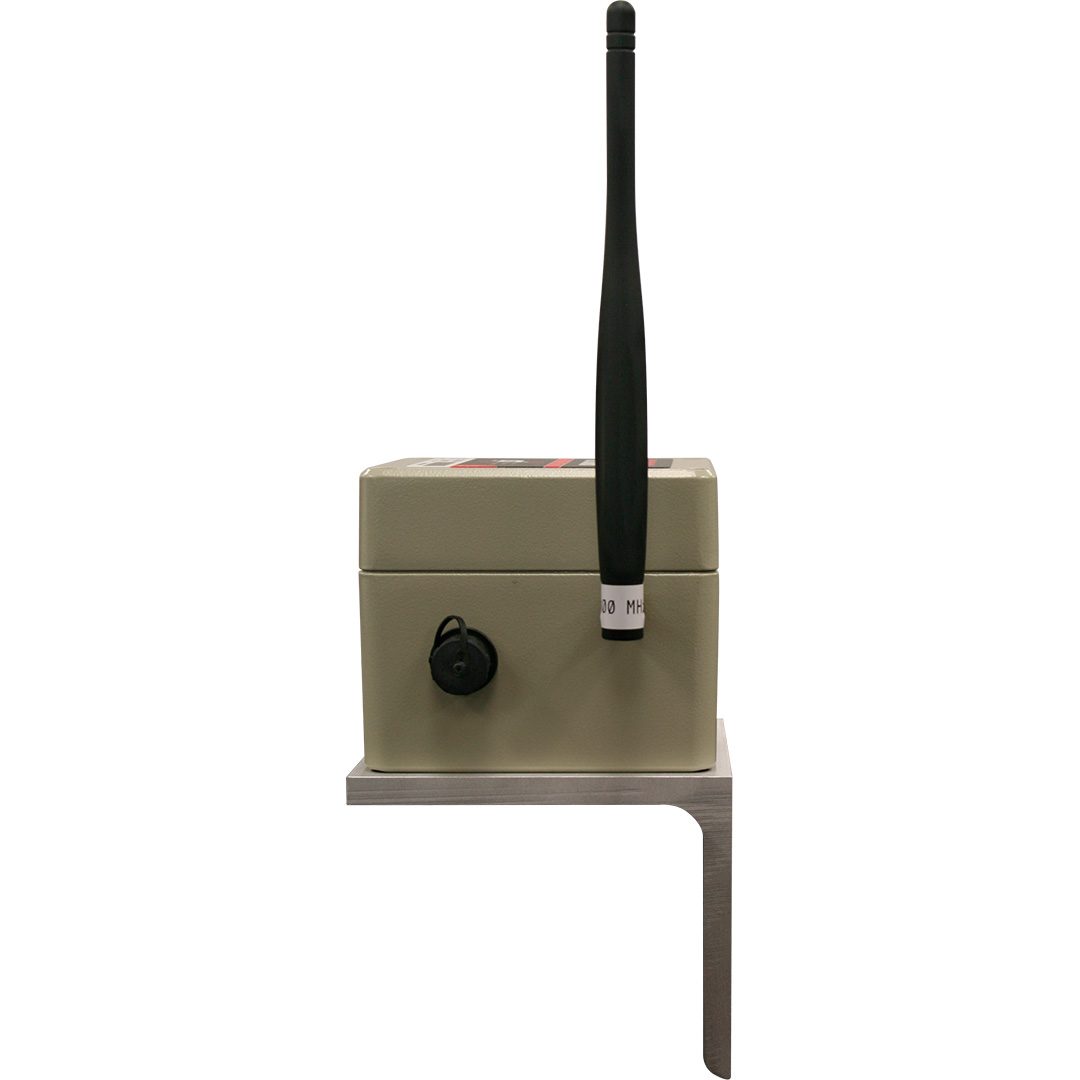

Digital Tilt Logger Horizontal Mounting Plate IC6510
Digital Tilt Logger Vertical Mounting Bracket IC6512



Options

RSTAR L900 – automated wireless data collection
DT LINK – wireless data collection

File Name

DTL201B/DTL202B: Uniaxial/Biaxial Digital Tilt Loggers

Resource Type

Brochure
Language Version Download
English ICB0039L
Spanish ICB0059E
Portugese ICB0080A

File Name

DT Series Dataloggers Installation Guidelines

Resource Type

Manual
Language Version Download
English ELM0089B

File Name

DT Series Dataloggers Maintenance and Service Guidelines

Resource Type

Manual
Language Version Download
English ELM0088B

File Name

DT Logger Host Instruction Manual PC Platform

Resource Type

Manual
Language Version Download
English ELM0080L

File Name

DT Logger Host Instruction Manual – Mobile Platform

Resource Type

Manual
Language Version Download
English ELM0081D
