DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger
The DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger is a low cost, battery powered data logger, designed for reliable, unattended monitoring of up to 10 channels which may be any mix of 4-20mA sensors or thermistors.
Overview
The DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger is a low-cost, battery-powered data logger, designed for reliable, unattended monitoring of up to 10 channels which may be any mix of 4-20mA sensors or thermistors.
The DT4205 is ideal for remote locations or instruments that require frequent reliable data recording and connects to most instruments with 4-20mA sensors.
Data logger setup and data collection is done using a laptop. DT Logger Host Software is also included.

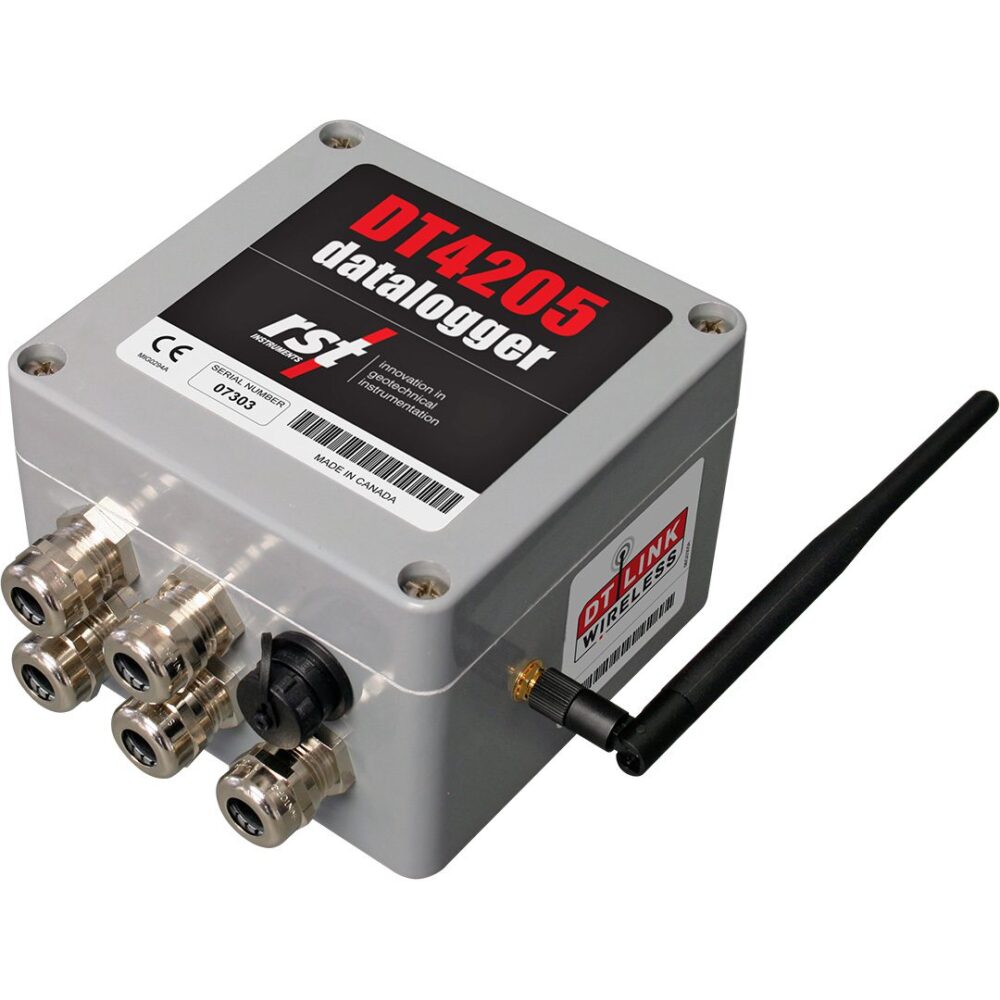

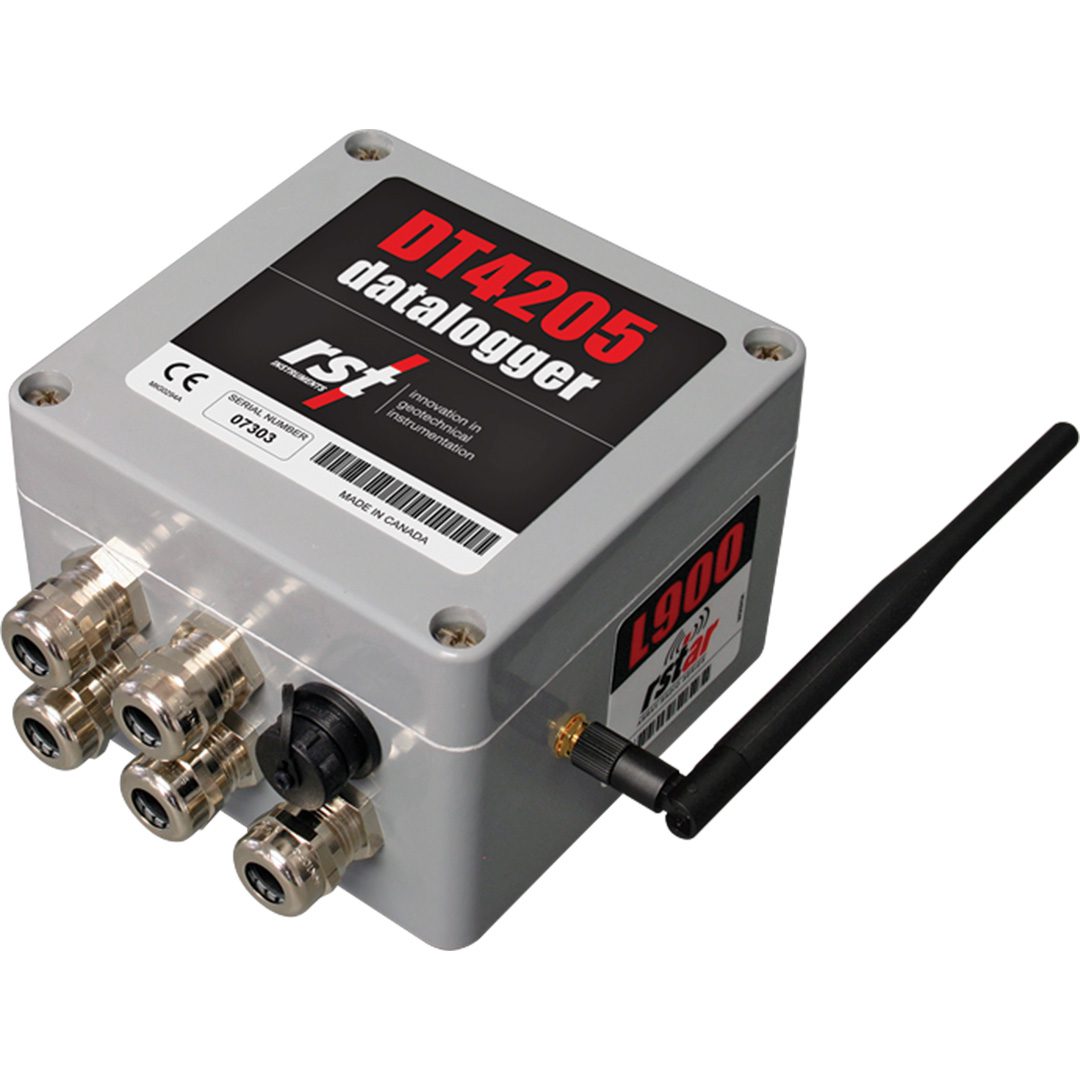

The DT4205 can also be equipped with an optional radio antenna to incorporate it into an RSTAR or DT Link wireless system.
DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger Specifications
| ITEM | SPECIFICATION |
| Frequency Accuracy | 0.01% Full Scale |
| Resolution | 1 part in 32,000 |
| Memory Records | Up to 120,000 records including: time, 5 channels current, 5 channels thermistor |
| Power Source | Lithium ‘C’ or ‘D’ cell battery |
| Battery Life | Up to 5 years (assuming 1 hour reading frequency) / 2 memory fills depending on temperature and use |
| Communication | USB Type B connector (radio optional) |
| Dimensions | 120 x 122 x 90 mm (4.72 x. 4.80 x 3.54 in.) |
| Temperature Range | -40°C to 60°C (-40° to 140°F) |
| Enclosure | NEMA 4X (IP66) |
MEMORY SPECIFICATIONS
| ITEM | SPECIFICATION |
| Memory Size | 4MB |
| Data Transfer | 2,300 data points per second |
| Interval Mode | 10 seconds to 1 day |
| Variable Rate Mode | 16 user-programmable sampling rates |
| Time Format | Month / day / year Hour / minute / second |
| Memory Full Behaviour | “Wrap around” or “fill & stop” option |
The DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger is commonly used where reliable, unattended monitoring of up to 10 sensors (which may be any mix of 4-20mA sensors and thermistors) is required.
View illustrations on how the DT4205 is used for concrete dams.
DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger Ordering Info
| ITEM | PART # |
| DT4205: 5/10 Channel 4-20mA Transmitter Data Logger/Thermistor Data Logger | DT4205 |
| Cable Gland Nut Wrench | DT100 |
| Pole Mount Kit | DT20XX-M2 |
| 8” Secondary Enclosure | DT2055-SE |
Options
| RSTAR L900 – automated wireless data collection |
| DT4205 DTLINK – wireless data collection |
| Communications cable |
