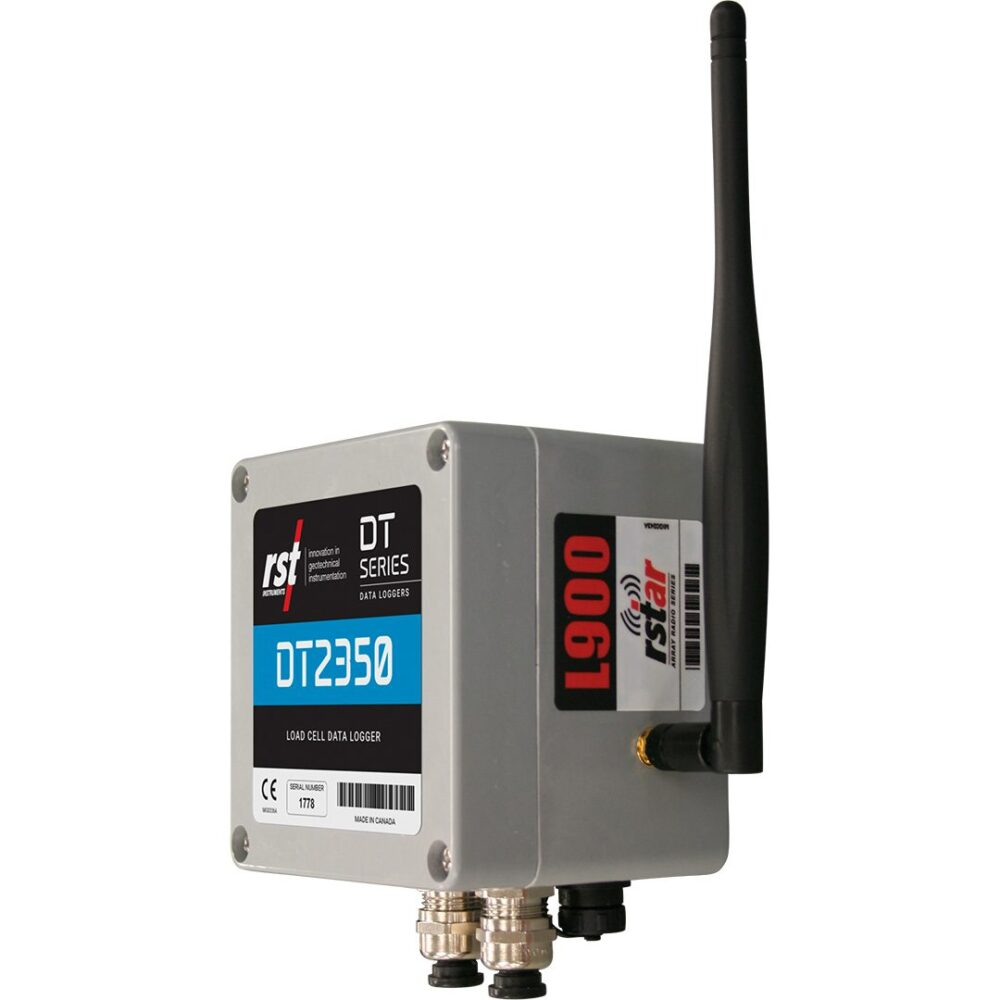

DT2350: Load Cell Data Logger

Category:

The DT2350 Load Cell Data Logger is a 2 channel data logger for resistance strain gauge load cells and other strain gauge sensors, pressure transducers, etc. The DT2350 is part of RST’s “DT Series” Data Loggers and is fully compatible with the RSTAR or DT LINK Wireless Data Collection Systems.

Quantity

Add to Quote

Overview

The DT2350 Load Cell Data Logger is a 2 channel data logger for resistance strain gauge load cells and other strain gauge sensors, pressure transducers, etc. The DT2350 is part of RST’s “DT Series” Data Loggers and is fully compatible with the RSTAR or DT LINK Wireless Data Collection Systems.


DT2350: Load Cell Data Logger Specifications

ITEM SPECIFICATION
Analog Channels 2
Analog Sensors Supported Bridge Transducers
Thermistor A/D Type 24 Bit Delta-Sigma
0.001%
Zero Stability (Logger Only) 0.001%
Nonlinearity (Logger Only) 0.003%
Memory Type 4MB Flash
Memory Records Up to 600,000 records of Date/Time, 2 Sensors
Memory Endurance Unpowered 100 years
Power Source Lithium compact or standard cell battery (NOTE: standard cell required for radio use)
Battery Life Up to 4 years (non-radio or RSTAR) or 3.5 years (DT LINK) (NOTE: specs based on 1-hour reading frequency and dependent on temperature and use)
Enclosure NEMA 4X (IP65)
Dimensions 120 x 122 x 90 mm (4.72 x. 4.80 x 3.54 in.)



The DT2350: Load Cell Data Logger is commonly used for:

  • Monitoring load cells
  • Pile tests
  • Anchor tests

DT2350: Load Cell Data Logger ordering info

ITEM PART #
DT2350: 2 Channel Load Cell Data Logger DT2350
Cable Gland Nut Wrench DT100
Pole Mount Kit DT20XX-M2
8” Secondary Enclosure DT2055-SE



Options

RSTAR L900 – automated wireless data collection
DT2055B DTLINK – wireless data collection

File Name

DT2350 2-Channel Strain Gauge Load Cell Data Logger Manual

Resource Type

Manual
Language Version Download
English ELM0099A

File Name

DT Series Dataloggers Installation Guidelines

Resource Type

Manual
Language Version Download
English ELM0089B

File Name

DT Series Dataloggers Maintenance and Service Guidelines

Resource Type

Manual
Language Version Download
English ELM0088B

File Name

DT2350: 2 Channel Load Cell Data Logger

Resource Type

Brochure
Language Version Download
English ELB0053F
Portugese ELB0092A
Spanish ELB0059C

File Name

DT Logger Host Instruction Manual PC Platform

Resource Type

Manual
Language Version Download
English ELM0080L

File Name

DT Logger Host Instruction Manual – Mobile Platform

Resource Type

Manual
Language Version Download
English ELM0081D
