DT2306: Potentiometer Data Logger

Category:

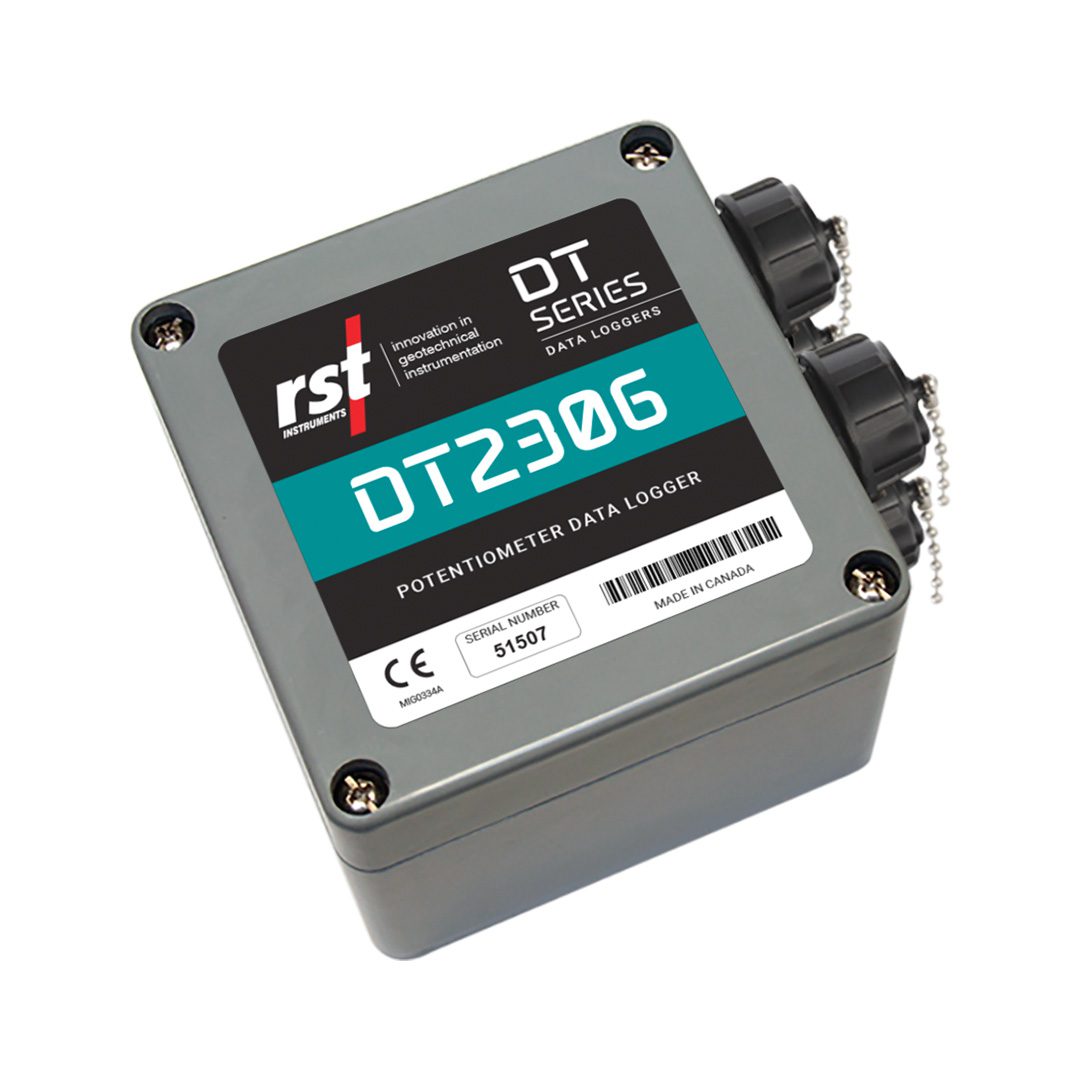

The DT2306 Potentiometer Data Logger is a low-cost, battery-powered data logger, designed for reliable, unattended monitoring of up to 18 potentiometers including multi-point extensometers with potentiometer sensors.

Quantity

Add to Quote

Overview

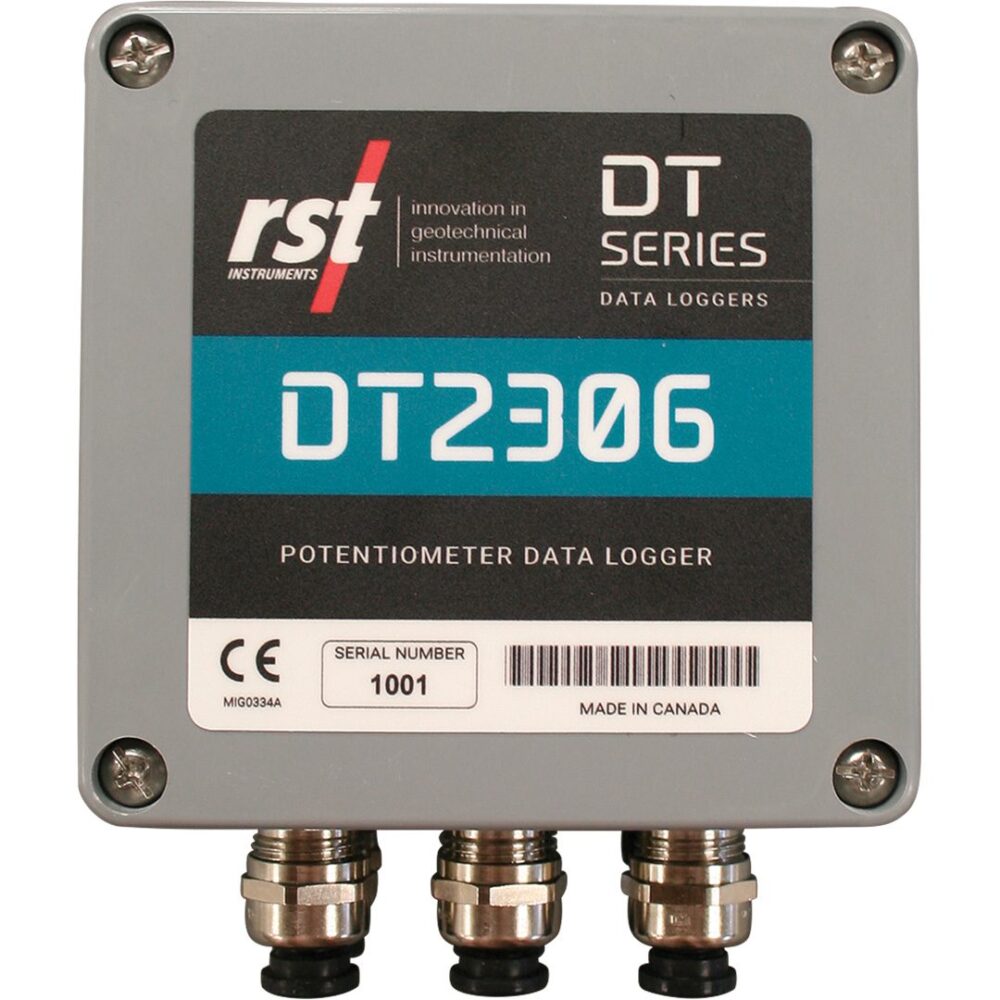

The DT2306 Potentiometer Data Logger is a low-cost, battery-powered data logger, designed for reliable, unattended monitoring of up to 18 potentiometers including multi-point extensometers with potentiometer sensors. The DT2306 Potentiometer Data Logger is ideal for remote locations or instruments that require frequent reliable data recording. The standard model comes with cable glands.

Data logger setup and data collection is done using a laptop. DT Logger Host Software is also included.

The DT2306 can also be equipped with an optional radio antenna to incorporate it into an RSTAR or DT LINK wireless system.


DT2306: Potentiometer Data Logger Specifications

ITEM SPECIFICATION
Output Units 0 – 100% of FS range
Resolution 1 part in 32,000
Memory Records Up to 60,000 records including: time, 18 channels % of range
Power Source Lithium compact or standard cell battery (NOTE: standard cell required for radio use)
Battery Life Up to 4 years (non-radio or RSTAR) or 3.5 years (DT LINK)
(NOTE: above specs based on 1-hour reading frequency and dependent on temperature and use)
Communication USB Type B connector (radio optional)
Dimensions 120 x 122 x 90 mm (4.72 x. 4.80 x 3.54 in.)
Temperature Range -40°C to 60°C (-40° to 140°F)
Enclosure NEMA 4X (IP65)

MEMORY SPECIFICATIONS

ITEM SPECIFICATION
Memory Size 4MB
Data Transfer 4,000 data points per second
Interval Mode 10 seconds to 1 day
Variable Rate Mode 16 user-programmable sampling rates
Time Format Month / day / year Hour / minute / second
Memory Full Behaviour “Wrap around” or “fill & stop” option

DT2306: Potentiometer Data Logger are commonly used where reliable, unattended monitoring of up to 18 potentiometers (including multi-point extensometers) is required.

DT2306: Potentiometer Data Logger Specifications

ITEM PART #
DT2306 Potentiometer Data Logger DT2306
Cable Gland Nut Wrench DT100
Pole Mount Kit DT20XX-M2
8” Secondary Enclosure DT2055-SE



Options

RSTAR L900 – automated wireless data collection
DTLINK – wireless data collection

File Name

DT2306 Potentiometer Data Logger Manual

Resource Type

Manual
Language Version Download
English ELM0075B

File Name

DT Series Dataloggers Maintenance and Service Guidelines

Resource Type

Manual
Language Version Download
English ELM0088B

File Name

DT2306 Potentiometer Data Logger

Resource Type

Brochure
Language Version Download
English ELB0051H
Portugese ELB0091A
Spanish ELB0058C

File Name

DT Logger Host Instruction Manual – Mobile Platform

Resource Type

Manual
Language Version Download
English ELM0081D

File Name

DT Logger Host Software for PC

Resource Type

Software

Note

Unzip the ZIP file once it is downloaded.
From the extracted files, double click on the “.exe” file.
Follow the instructions to install.

Language Version Download
English 1.19.3
