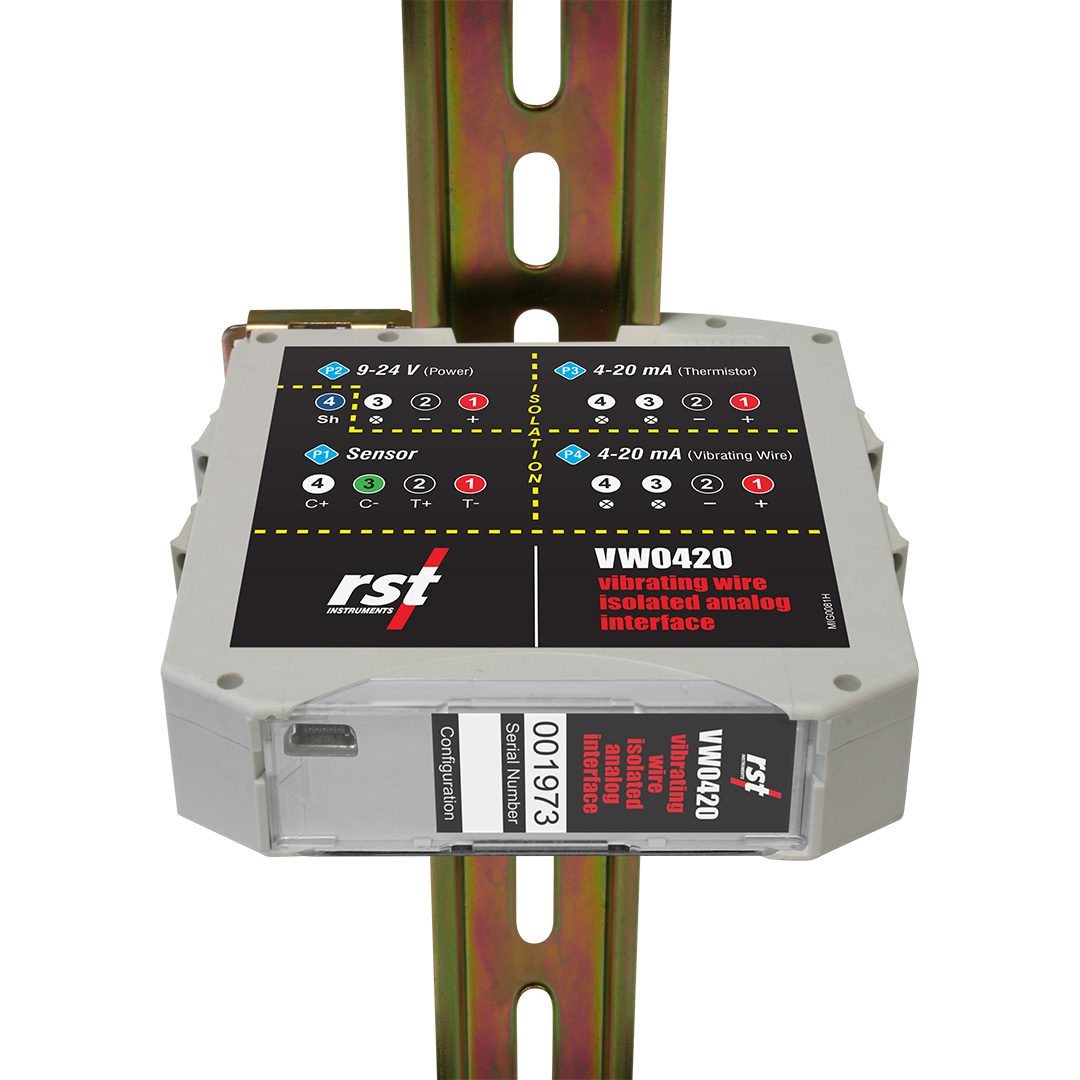

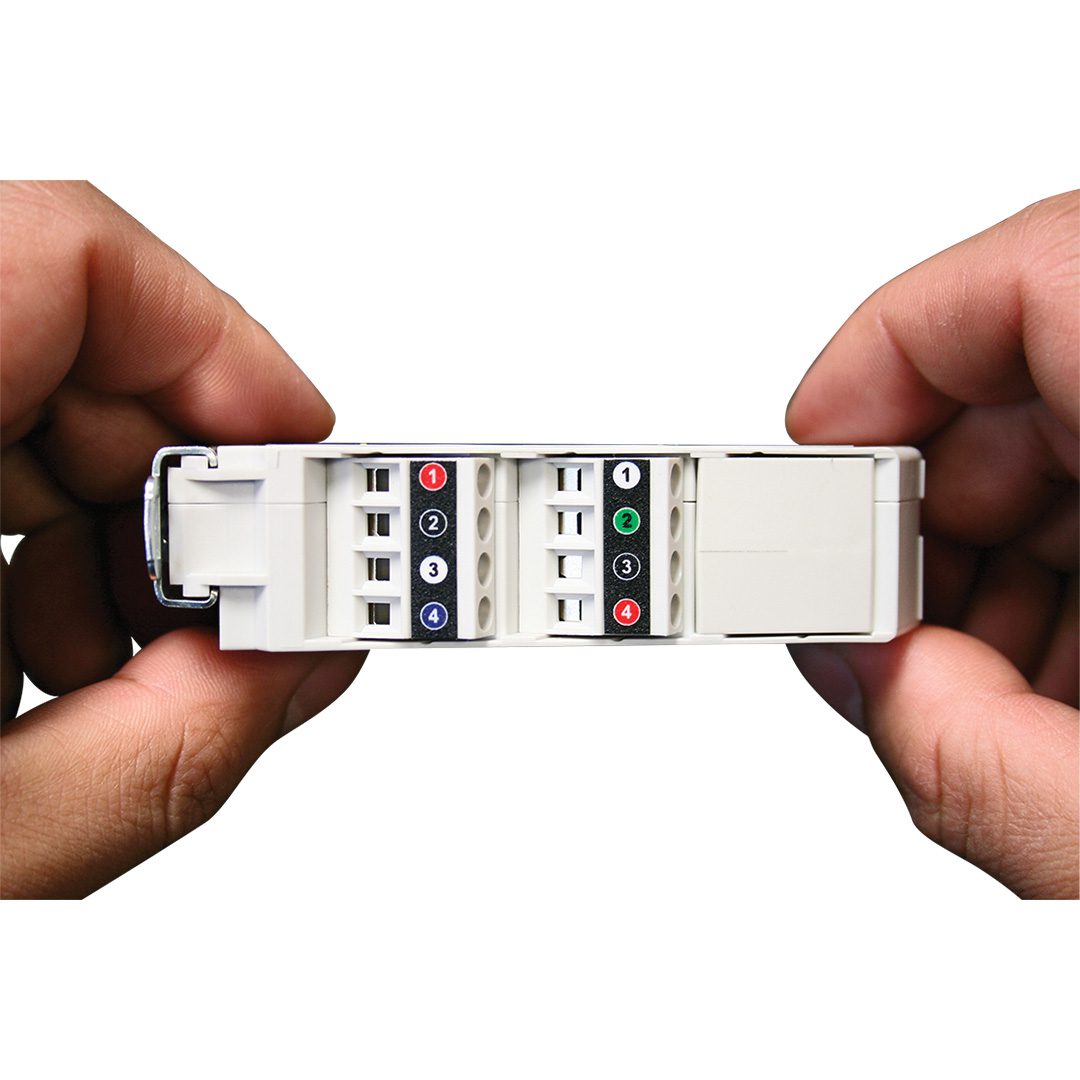

VW0420: Vibrating Wire Isolated Analog Interface

Category:

The VW0420 provides an interface between vibrating wire instruments and factory automation systems which support 4-20 mA sensors.

Quantity

Add to Quote

Overview

The VW0420 provides an interface between vibrating wire instruments and factory automation systems which support 4-20 mA sensors. The vibrating wire section measures the natural frequency and temperature of the sensor. The measurements are then converted to engineering units, unit converted etc. as required, and scaled to the 4-20 mA outputs. Setup of the device is straightforward, using a Windows host program connected via USB cable.


VW0420: Vibrating Wire Isolated Analog Interface Specifications

ITEM SPECIFICATION
Vibrating Wire Sensor Types Piezometer, strain gauge, mini-strain gauge, displacement sensor etc.
Sweep Types A,B,C,D,E,F, user-defined
Frequency Input 450-6000 hz
Update Rate 2 seconds
Vibrating Wire Calibration mX+b, polynomial, units conversion, temperature compensation
Thermistor Types NTC 3000, 2252, 5k, 10k, 2k RTD
Current Outputs (2) Vibrating Wire, Thermistor
Current Output 4-20 mA nominal, isolated between channels and with respect to sensor to 2500 VAC
Vibrating Wire Conversion Base Raw data, engineering units, temperature corrected
Vibrating Wire Conversion Base Unit B units, kPa, psi, mH2O, µe, etc
Temperature Conversion Base °C, °F, ohms
Current Resolution 0.002%
Current Conversion Accuracy 0.02%
Host Program PC Connection USB 2.0, USB mini B connector
Compatible Operating Systems Windows 10
Operating Temperature -40 to 55°C
Power Supply 9-24 VDC, 8-35 mA, isolated to 1000 VAC
Dimensions 3.55 x 3.62 x 0.89 in. (90 x 92x 22.5 mm)

The VW0420: Vibrating Wire Isolated Analog Interface provides an interface between vibrating wire instruments and factory automation systems which support 4-20 mA sensors.

File Name

VW0420 Analog VW Interface Instruction Manual

Resource Type

Manual
Language Version Download
English ELM0046E

File Name

VW0420 Vibrating Wire Isolated Analog Interface

Resource Type

Brochure
Language Version Download
English ELB0031C
