Vibrating Wire Liquid Settlement System
The RST Vibrating Wire Liquid Settlement System SSVW105 monitors settlement or heave in soils and different types of man-made structures such as embankments, and earth and rockfil dams.
Overview

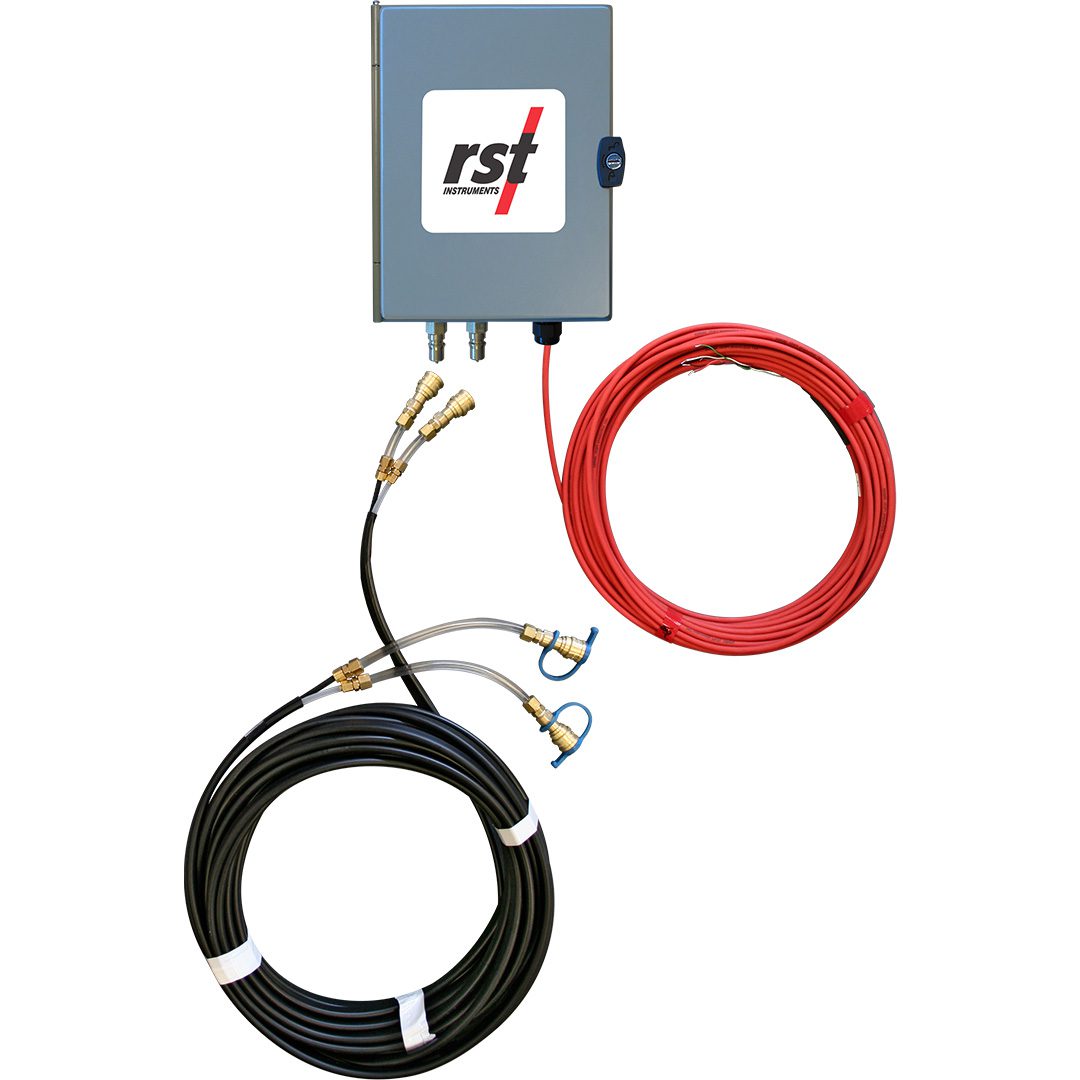

The RST Vibrating Wire Liquid Settlement System SSVW105 monitors settlement or heave in soils and different types of man-made structures such as embankments, and earth and rockfil dams. The system consists of a fluid body, reservoir, flexible tubing, and sensor and readout unit.

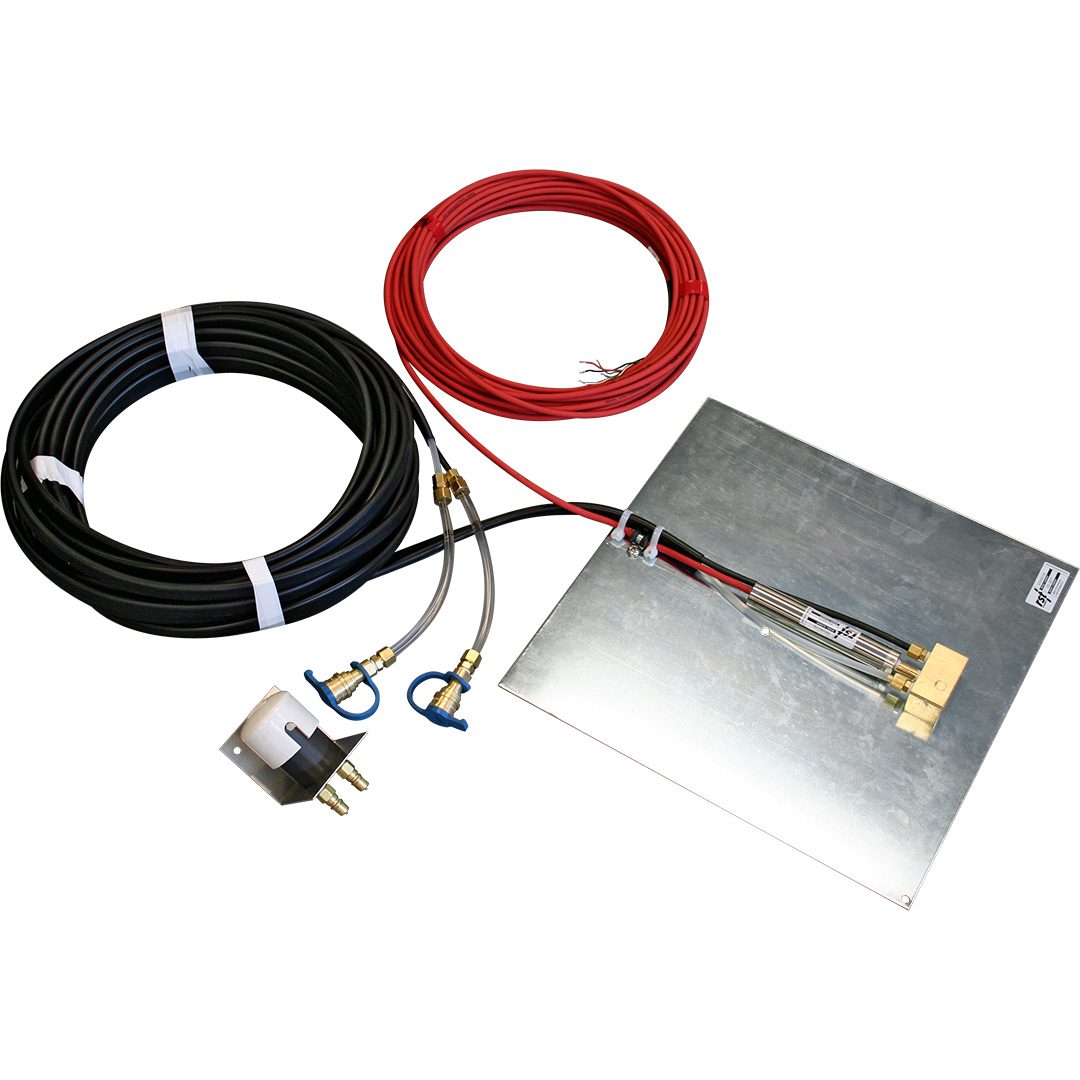

A vibrating wire pressure sensor is attached to a settlement plate located at the point to be monitored, and connected via two liquid-filled tubes extending laterally to a reservoir located on stable ground. The sensor measures the hydraulic head of liquid between the sensor and reservoir locations. The liquid filled tubes can also be flushed.
| ITEM | SPECIFICATION |
| Standard Ranges | 7, 17, 35 m |
| Resolution/Repeatability | 0.025% FS |
Sensor Accuracy
System accuracy specification dependent on site conditions |
0.1% FS |
| Temperature Range | -20°C to +80°C |
D AERATOR SPECIFICATIONS
| ITEM | SPECIFICATION |
| Power | 12 VDC rechargeable battery. 100-240 VAC to 12 VDC charging system with extension cord. |
| Dimensions | 50 D x 40 W x 19 H cm (19.68 W x 15.74 D x 7.48 H in.) |
| Weight | 12 kg |
Vibrating Wire Liquid Settlement Systems are commonly used for:
- Preload consolidation monitoring.
- Embankment construction control.
- Subsidence monitoring.
- Monitor settlement or heave.
View illustrations on how the Vibrating Wire Liquid Settlement System is used for:
| ITEM | PART # |
| Vibrating Wire Liquid Settlement System 70 kpa including Settlement Plate with Cover | SSVW105 |
| Vibrating Wire Liquid Settlement System 170 kpa including Settlement Plate with Cover | SSVW105-170 |
| Vibrating Wire Liquid Settlement System 350 kpa including Settlement Plate with Cover | SSVW105-350 |
| Liquid settlement system vented reservoir | SSSP105RV-1. The last number will indicate how many cells required (cell range 1 to 12). |
| Enclosure to house Liquid Settlement vented reservoir (Reservoir not included) |
SSSP105RVENC-### (For best configuration options contact RST) |
| Cable | EL380004 |
| 2×1/4” PE Tubing PVC Jacket Water/Glycol | SS003000 |
| Custom enclosure for reservoir and optional data logger | SSP105RV-ENC |
| De-aired, 60/40 glycol/water mixture (1 L) | SSSP106M |
Optional
| ITEM | PART # |
| D Aerator SS6000 – Liquid Settlement System De-airing Unit |
SS6000 |
| Tubing Splice Kit NOTE: Must de-air system after splicing. |
PP0175 |
| Cable splice kit for vibrating wire sensors | ELSPLICE4 |
| Ordering Considerations |
| Range of pressure transducer on cells (Based on the expected settlements and vertical distance between cells and reservoirs) |
| Cable and tubing lengths for each individual cells |
| Number of cells for each reservoir (RST recommends using an additional cell per reservoir to act as a reference cell) |
| Enclosure type to house reservoirs and loggers as an option |
Note: Saturated extension pipes with quick connect ends are available upon request
