Submersible Tilt Meter
The RST Submersible Tiltmeter provides precision real-time remote monitoring of tilt of submerged structures.
Overview
The RST Submersible Tiltmeter provides precision real-time remote monitoring of tilt of submerged structures. It consists of a MEMS inclinometer sensor and electronics mounted inside a rugged waterproof enclosure. The instrument housing is machined from solid stainless steel, providing extreme endurance for long-term high-pressure underwater service. The cable entry is a submarine grade connector, which provides watertight performance at depths exceeding 200 meters.
SUBMERSIBLE TILT METER SPECIFICATIONS
| ITEM | SPECIFICATION |
| Range | ±15° |
| Resolution (digital) | ±2 arc sec. (±0.0006°) (0.01 mm/m) |
| Resolution (analog) | ±5 arc sec. (±0.025 mm/m) (10Hz BW) |
| Non-linearity (digital) | ±0.0125% F.S. (±0.002°) (0.03 mm/m) |
| Non-linearity (analog) | ±0.05% F.S. (±0.0075°) (0.13 mm/m) |
| Repeatability (digital) | ±0.0125% F.S. (±0.002°) (0.03 mm/m) |
| Repeatability (analog) | ±0.025% F.S. (±0.004°) (0.06 mm/m) |
| Sensor | MEMS (Micro-Electro-Mechanical Systems) Accelerometer, Uniaxial or Biaxial |
| Operating Temp. | -40 to 85°C (-40 to 185°F) |
Submersible Tilt Meters are commonly used for:
- Remote, real-time monitoring of inclination of concrete-face rockfill dam slabs and concrete dams.
- Monitoring of tilt of retaining walls, piles, and bridge piers.
- Monitoring of offshore structures.
- Installation of submerged pipelines.
Submersible Tilt Meter Ordering Info
| ITEM | PART # |
| MEMS Submersible Uniaxial Tiltmeter Digital Output | IC6750 |
| MEMS Submersible Uniaxial Tiltmeter 4-20mA Output | IC6752 |
| MEMS Submersible Biaxial Tiltmeter Digital Output | IC6756 |
| MEMS Submersible Biaxial Tiltmeter 4-20mA Output | IC6753 |
| Signal Cable: 4 conductor 22 AWG OSD with polyurethane jacket | EL380004 |

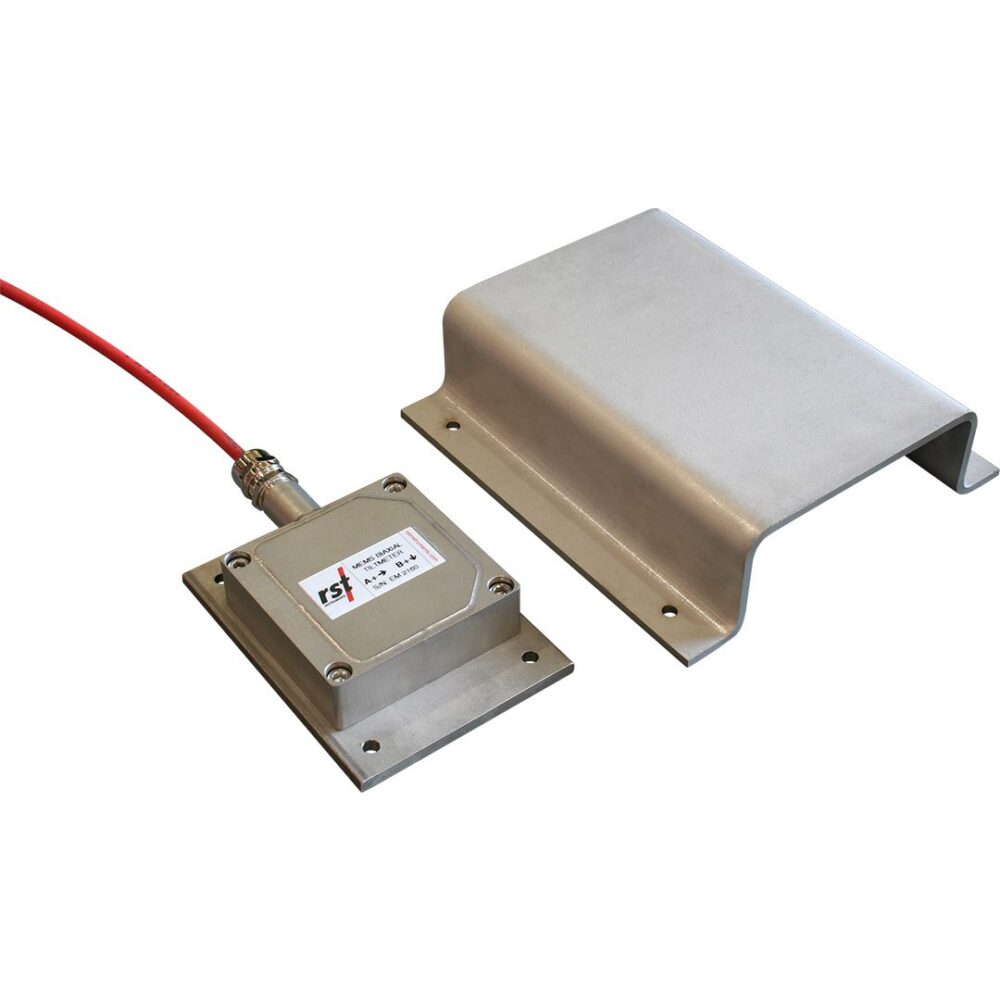

Mounting Ordering Info
| ITEM | PART # |

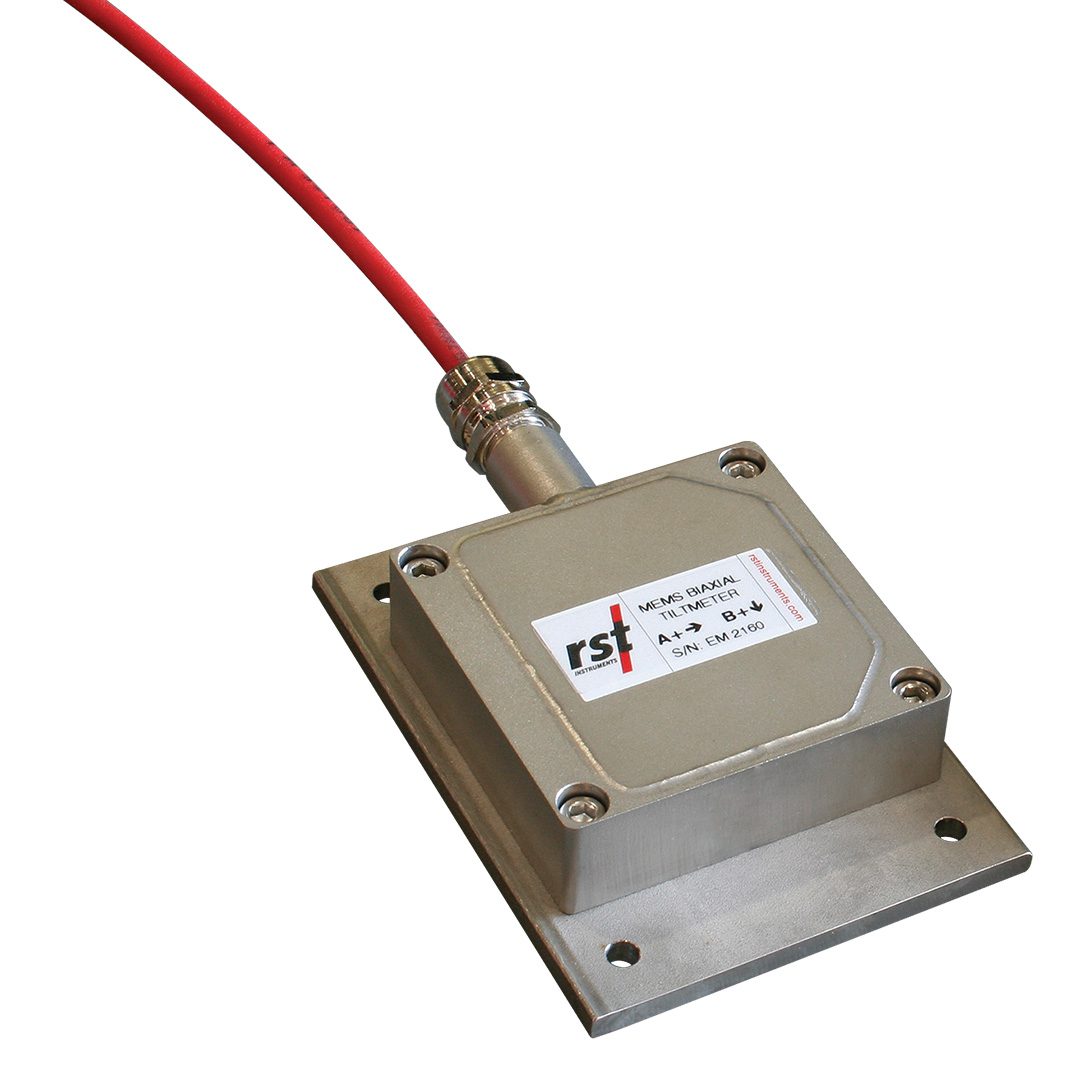

| Horizontal Mounting Plate – MEMS Submersible Tiltmeter | IC6760 |
| Vertical Mounting Bracket – MEMS Submersible Tiltmeter | IC6761 |
Readouts & Data Loggers Ordering
| ITEM | PART # |
| flexDAQ Dataloggers (analog and digital systems) |
