Strain Gauge Load Cells
Strain Gauge Load Cells incorporate from 8 to 16 high output electrical resistance strain gauges in a full bridge configuration that are bonded to a high strength steel or stainless steel spool.
Overview

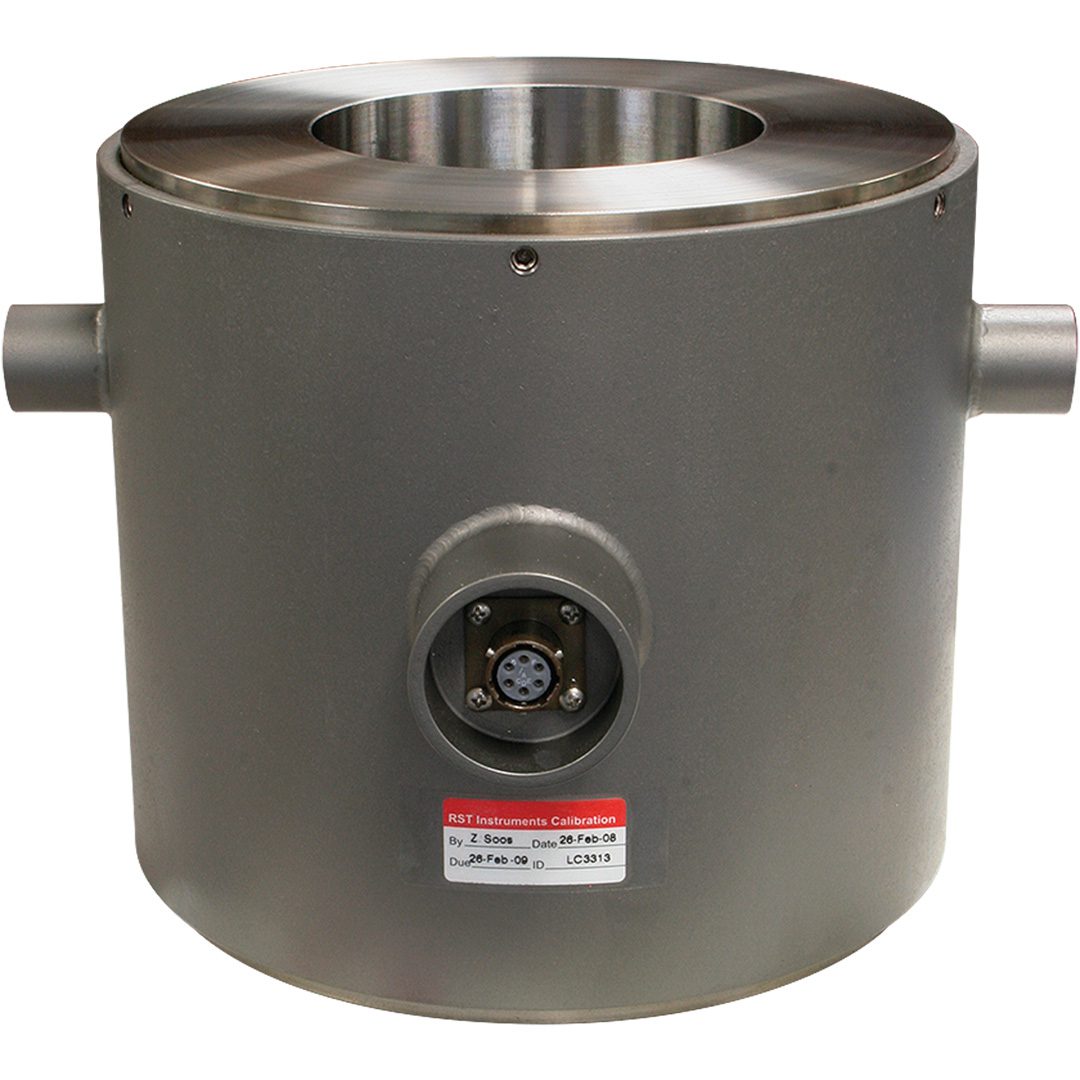

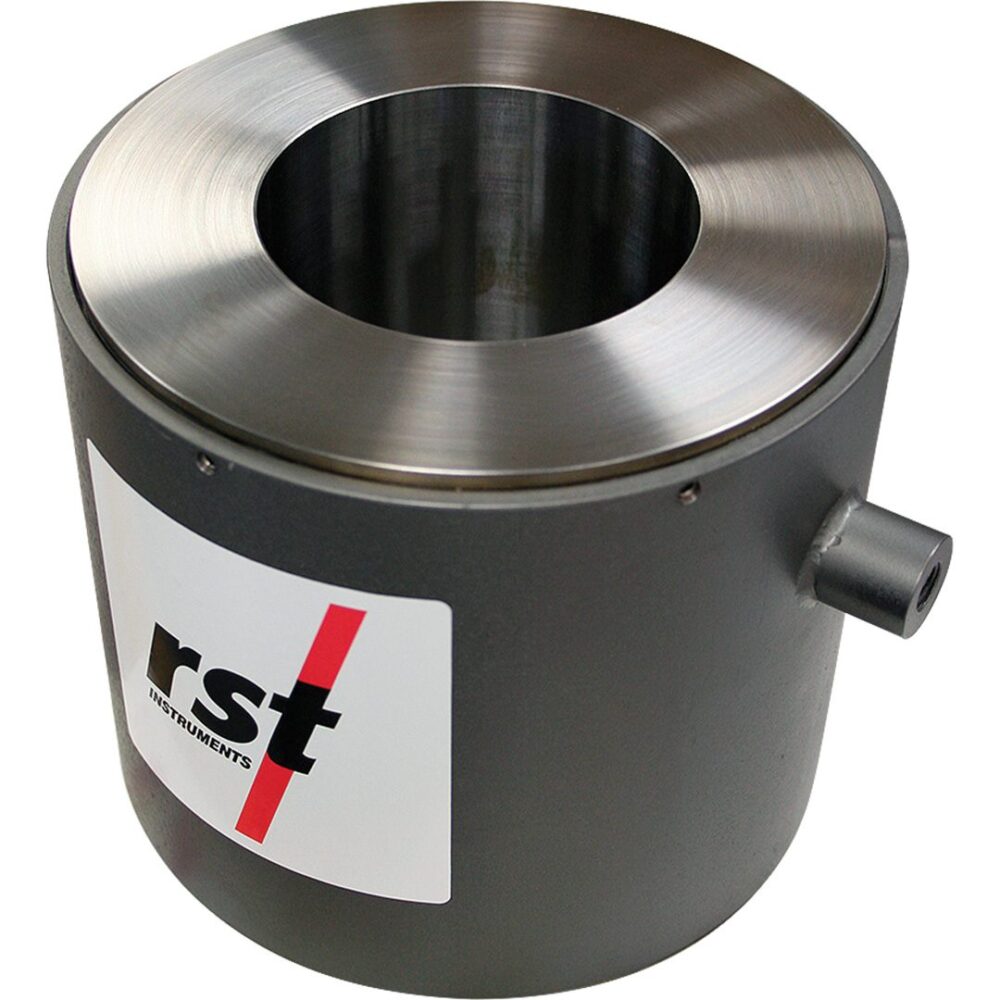

Strain Gauge Load Cells incorporate from 8 to 16 high output electrical resistance strain gauges in a full bridge configuration that are bonded to a high strength steel or stainless steel spool. This arrangement compensates for both temperature effects and off center loading. Strain Gauge Load Cells are available in virtually any size, in both annular and solid styles. Gauge waterproofing utilizes the latest application techniques and protective materials. The rugged design includes heavy duty protective cover, sealed construction, and low deflection under load.

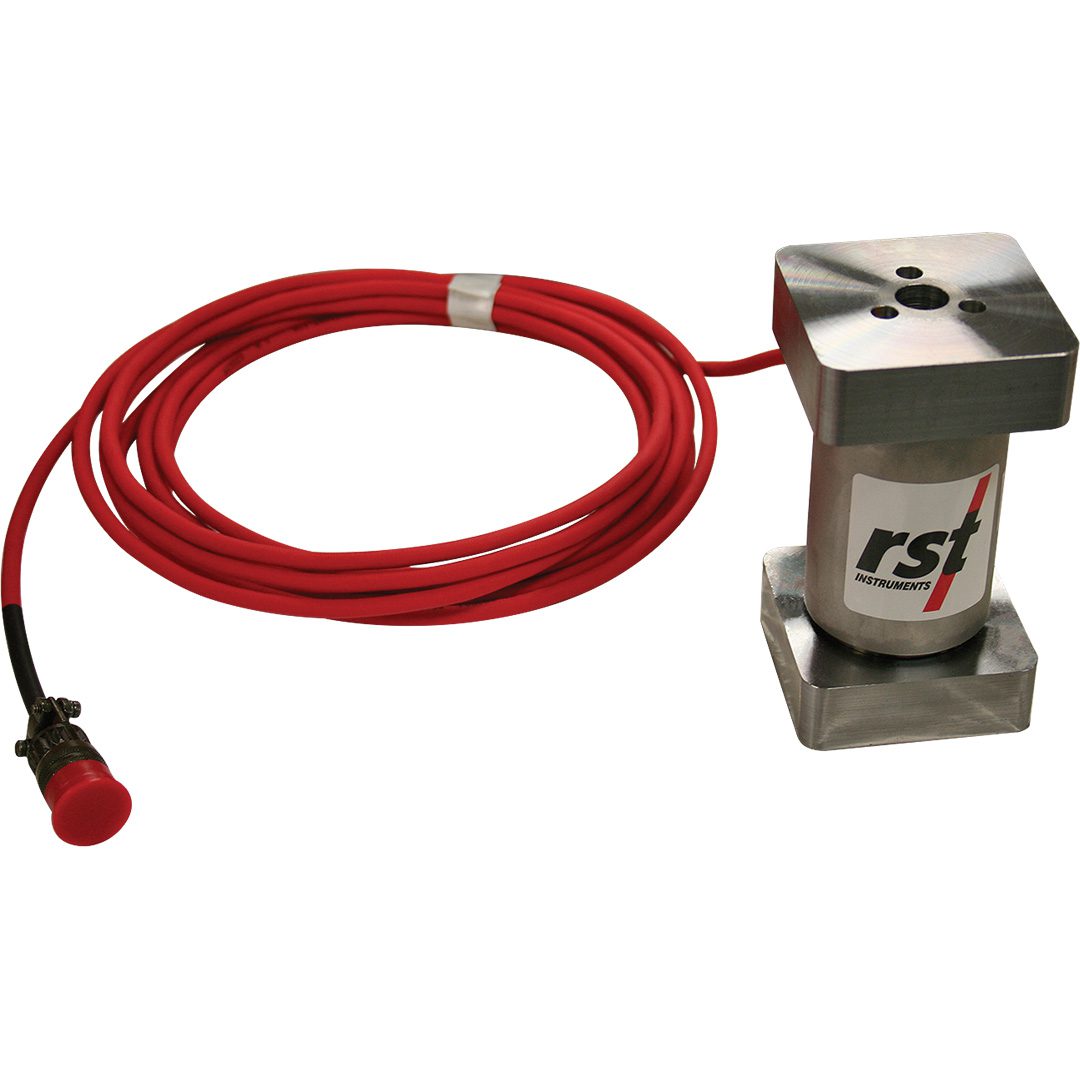

Mounting surfaces should be flat and parallel for optimum performance. RST recommends the use of top & bottom loading platens for best performance with annular load cells.
STRAIN GAUGE LOAD CELL SPECIFICATIONS
| ITEM | SPECIFICATION |
| Capacity | 22.5 kN to 10675 kN (5,000 lbs to 2,400,000 lbs) |
| Hole Size | 16 mm to 356 mm (5/8 in. to 14 in.), as required |
| Material | High strength steel or stainless elements |
| Temperature Compensation | -40°F to +107°F (-40°C to +40°C) |
| Overrange | 100% FS |
| Sensitivity | ±2.0mV/V |
Strain Gauge Load Cells are commonly used to measure load/strain in various applications.
Strain Gauge Load Cells Ordering Info
| Application |
| Annular or solid cell |
| Maximum capacity and smallest increment required |
| Environmental data |
| Size limitations |
| Cable connection and length |
| Loading Platens |
Optional Equipment
| Armored cable |
| Metal military, or plastic connectors (connectors not recommended in waterproof applications) |
| Readout: SG350 Bridge Transducer Readout |
Accessories
| Cable |
| Load and bearing plates |
| Terminal stations |
| Centralizer bushings if required |
