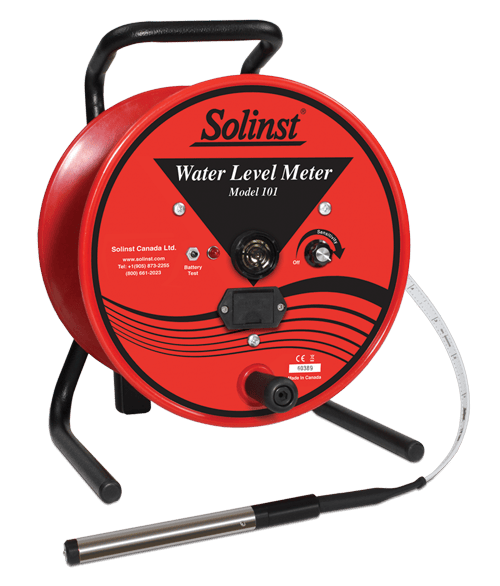

Solinst Water Level Meter – Model 101 P7
Solinst’s Model 101 P7 Water Level Meters are the industry standard for portable hand-operated meters, used for the convenient and accurate measurement of the depth to water in wells, boreholes, standpipes, and tanks. They employ a high-accuracy, NIST/EU-traceable, non-stretch, flat tape, permanently laser-etched in 1 mm or 1/100 ft. graduations.
Overview

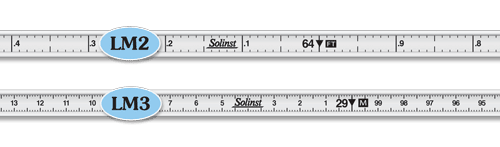

The Solinst Model 101 P7 Water Level Meter is a high-performance, field-ready instrument designed for precise measurement of depth of water in wells, boreholes, standpipes, tanks, and more. Featuring a pressure-proof stainless-steel P7 probe rated to 500 psi and submersible to 300 m (1,000 ft), it delivers accurate total-depth readings with virtually zero displacement, due to its tip-located sensor—making it reliable even in cascading or turbulent water. Its rugged PVDF flat tape is laser-etched every 0.01 ft (mm), reinforced with 19 strands of steel, and shaped in a “dog-bone” profile to prevent sticking and resist corrosion. The markings are traceable to NIST/EU standards for compliance-grade accuracy.
Powered by a simple 9 V battery and housed in an ergonomic, IP‑64 splash-resistant reel, the meter incorporates an audible buzzer and LED light that activate upon water contact. Users can easily adjust sensitivity to filter false signals in challenging conductivity conditions, take the depth reading at the tape datum, and smoothly rewind via its built-in guide and brake. Fully repairable and compatible with interchangeable tapes, this meter is engineered for longevity and on-the-spot fixes. All water-level monitoring essentials converge in this compact meter: deep‑well reach, pinpoint accuracy, rugged durability, and intuitive operation. The Solinst Model 101 P7 Water Level Meter is engineered to simplify groundwater monitoring and significantly improve field efficiency.
SOLINST MODEL 101 P7 WATER LEVEL METER SPECIFICATIONS
| ITEM | SPECIFICATION |
| Operating temperature of reel | -20°C to +50°C |
| Submerged operating temperature (tape/probe) | -20°C to +80°C |
| Wetted materials (tape/probe) | PVDF, Santoprene, ®Delrin, ®Viton, 316 stainless steel |
| Probe pressure rating | Fully submersible to depth of all tape lengths |
| Reel IP Rating | IP64 (dust- and splash-proof) |
| Tape lengths | 100 to 5000 ft, 30 – 1500 m |
SOLINST MODEL 101 P7 WATER LEVEL METER ORDERING INFORMATION
| WATER LEVEL METER LENGTH (m) | PART NUMBER |
| 30 | SWL1030 |
| 60 | SWL1060 |
| 100 | SWL1100 |
| 150 | SWL1150 |
| 250 | SWL1250 |
| 300 | SWL1300 |
| WATER LEVEL METER LENGTH (ft) | PART NUMBER |
| 100 | SWL2010 |
| 200 | SWL2020 |
| 300 | SWL2030 |
| 500 | SWL2050 |
Solinst Model 101 P7 Water Level Meters are commonly used for measuring the elevation of groundwater in standpipes, boreholes, and wells.
