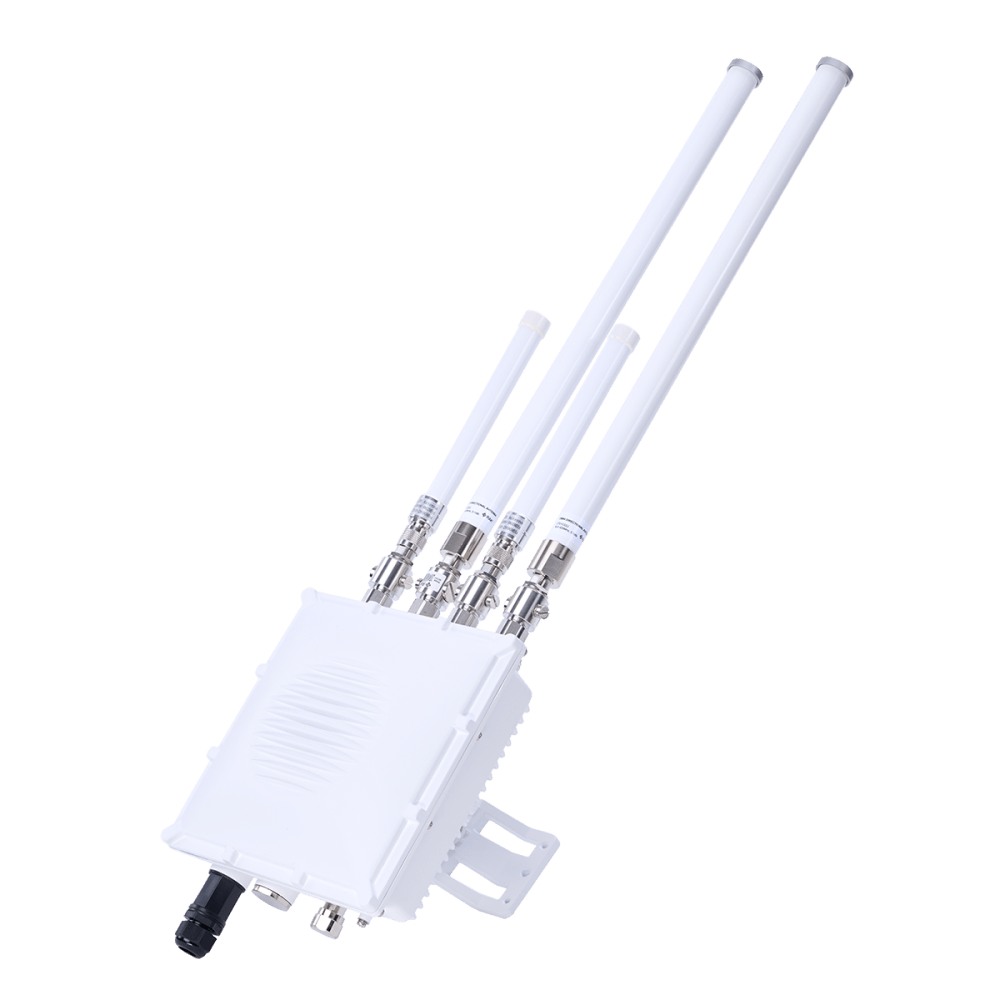

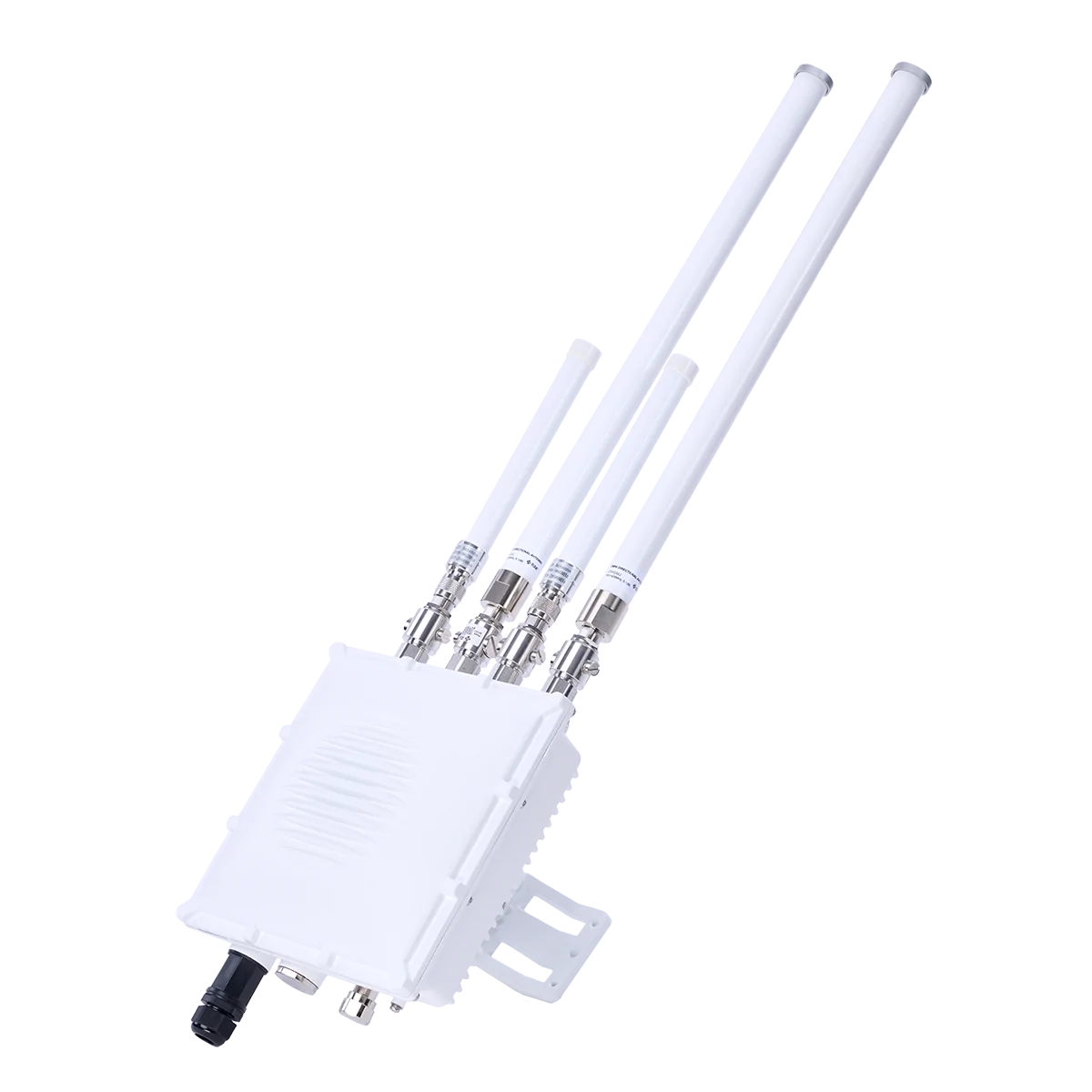

RSTAR Affinity Gateway

The RSTAR Affinity Gateway is easy to set up and connect to RSTAR Data Loggers for seamless communication in a wide range of geotechnical applications.

Quantity

Add to Quote

Product Features

  • Bi-directional connectivity between field devices and the RSTAR Affinity browser-based UI dashboard and mobile application.
  • Flexible connectivity including Ethernet, cellular, Wi-Fi, local radio LAN.
  • A pole mount is included with the gateway enclosure. An optional wall mount is also available.
  • RSTAR Affinity is OpenAPI 3.0 compliant.

Overview

The RSTAR Affinity gateway receives telemetry from RSTAR Affinity data loggers through LoRa radio. The data is forwarded to the RSTAR Affinity cloud server through wired internet, Wi-Fi, LTE, or to an on-premise server through local ISM radio.

The RSTAR Affinity gateway enables secure wireless communication between data loggers and the RSTAR Affinity browser-based dashboard and mobile application so sensor data can be transmitted and analyzed.

RSTAR Affinity

Built by our team of seasoned instrumentation experts specifically for geotechnical monitoring projects, the RSTAR Affinity system comprises loggers, gateways, secure communications for data telemetry, and mobile and desktop applications. Forget the headaches of improvised monitoring solutions cobbled together from different third-party vendors. RSTAR Affinity represents your complete industrial internet of things (IIoT) solution for reliable, real-time data flow from your work site to your desktop—all from a single source.


RSTAR Affinity Gateway Physical Specifications

ITEM SPECIFICATION
Dimensions Excluding Antenna(s) 220 mm (L) x 220 mm (W) x 104 mm (H)
Dimensions Including Antenna(s) 1150 mm (L) x 220 mm (W) x 104 mm (H)
Housing Material Die-cast aluminum
Ingress Protection Marking IP65 rated
Mounting Options Pole or wall mount
ISM Antenna Options 868 MHz: 3dBi antenna
900 MHz: 5.8dBi antenna
900 MHz: 8dBi antenna



General Specifications

ITEM SPECIFICATION
Temperature Operating
Range
Ambient temperatures from -40°C to 60°C



Power Specifications

ITEM SPECIFICATION

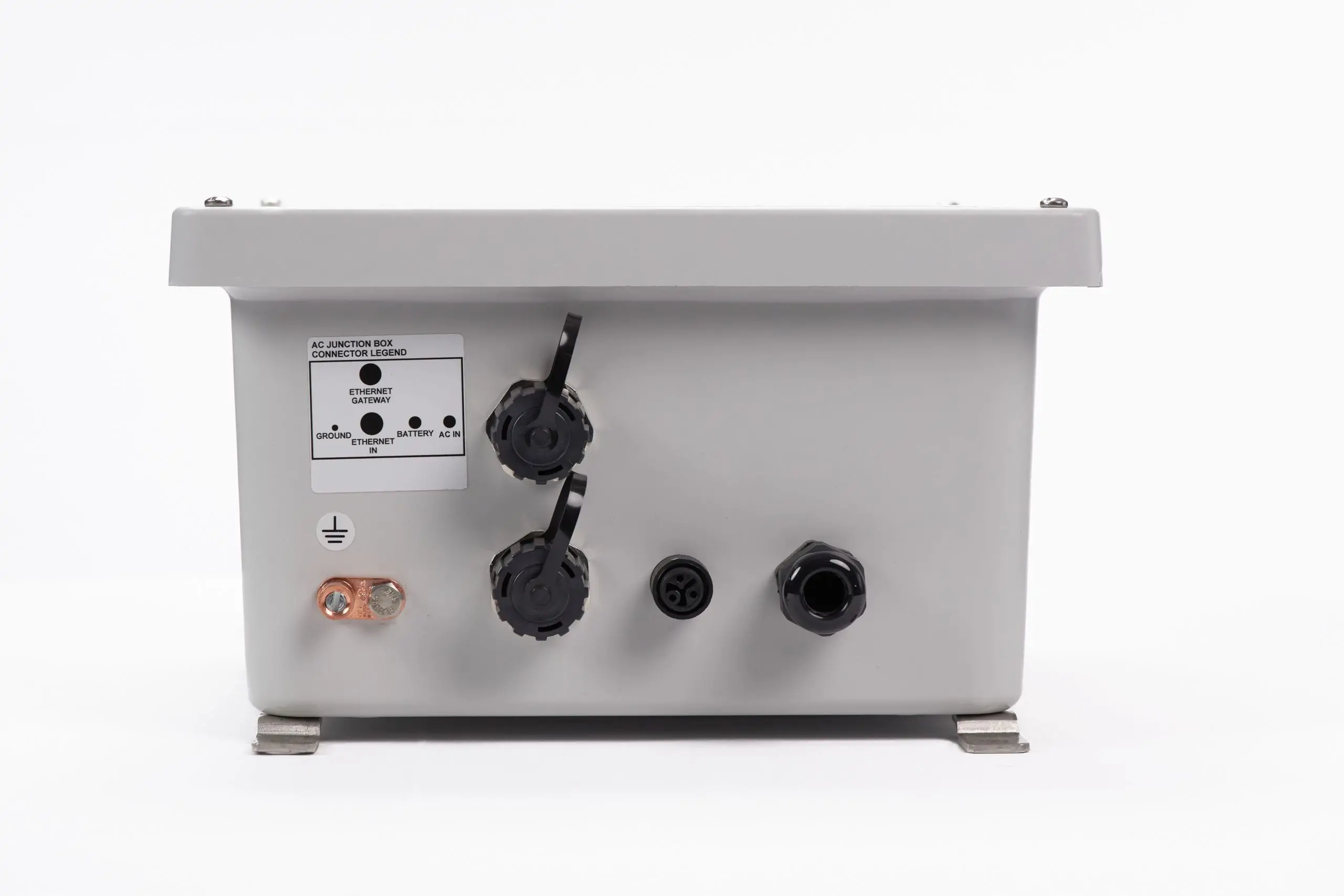

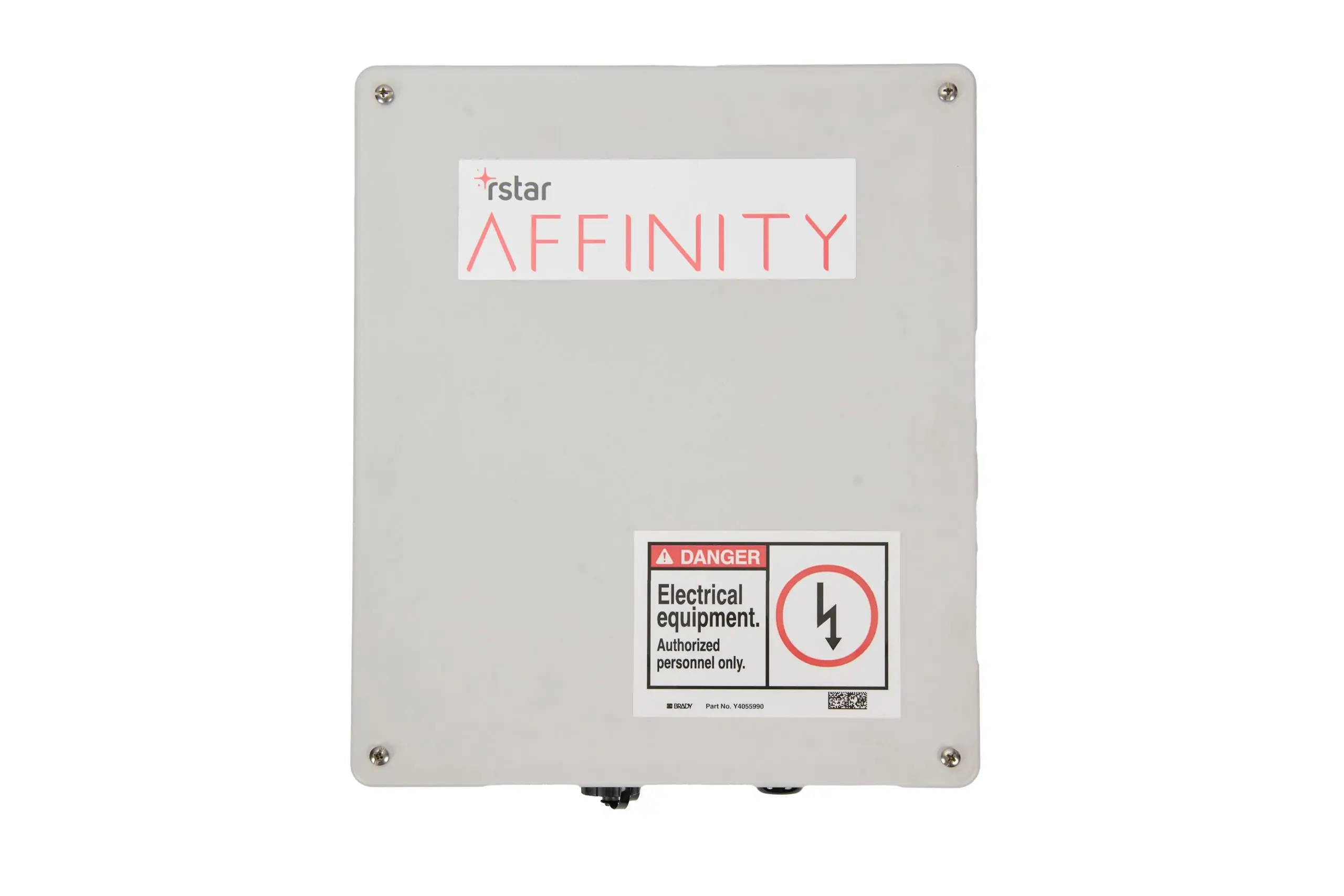

Power Supply 12 V DC from power enclosure via PoE
AC Power 120/240 V
Power Options High Capacity UPS, Solar Power



Cellular Specifications

ITEM SPECIFICATION
Frequency Bands for LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
Frequency Bands for LTE-TDD B38, B39, B40, B41
Frequency Bands for WCDMA B1, B2, B4, B5, B6, B8, B19
Frequency Bands for GSM B2, B3, B5, B8
Output Power 23~33dBm±2dB
Maximum Antenna Gain 3 dBi



Internet Specifications

ITEM SPECIFICATION
Standard Configuration LTE/WiFi/Ethernet
All gateways have ethernet available as a northbound connection.
Internet Options Radio Local Area Network (RLAN), Fiberoptic LAN



Field Connectivity

ITEM SPECIFICATION
Region LoRaWAN EU868 (Europe)
LoRaWAN EU433 (Europe)
LoRaWAN US915 (Americas)
LoRaWAN AU915 (Australia,Brazil)
LoRaWAN AS923-1/2/3/4 (Asia)



RSTAR Radio Specifications

ITEM SPECIFICATION
Operating Frequency (country dependent) 900 MHz, 868 MHz, 2.4 GHz spread spectrum band
Outdoor Range Up to 14 km (at 900 MHz) in open country, depending on frequency and antenna
Maximum Nodes Dependant on measurement frequencies and instrument types
