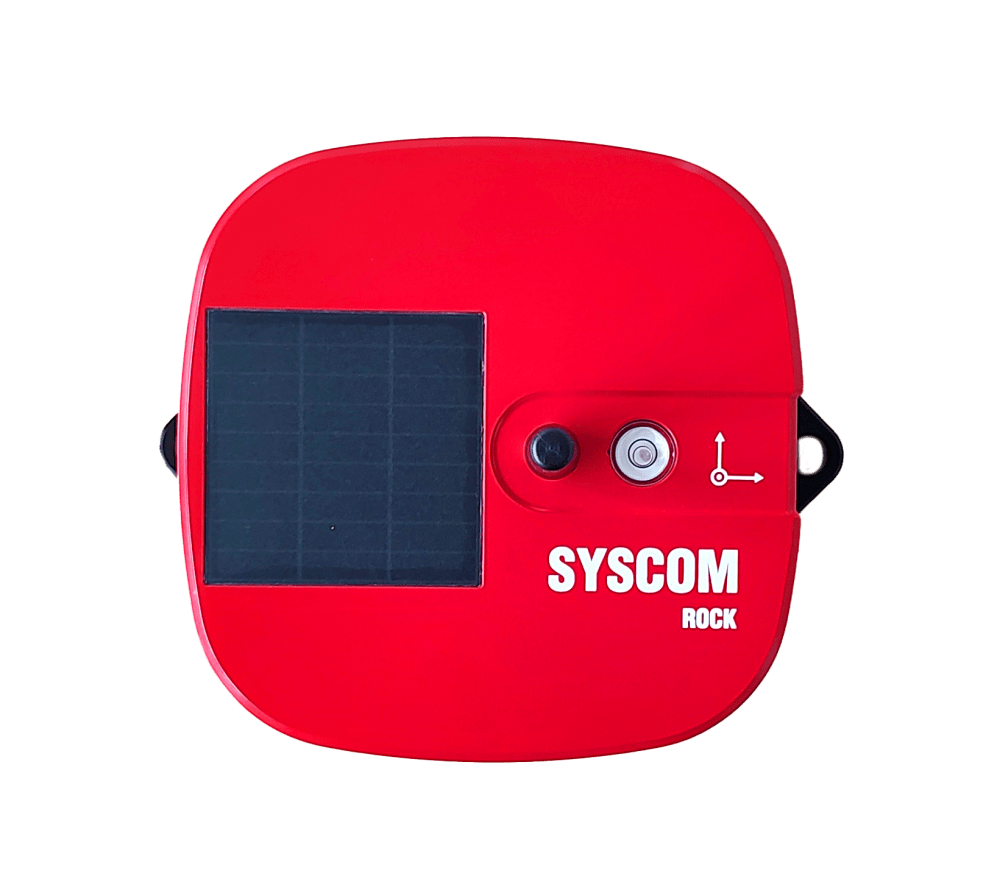

Syscom ROCK is a compact vibration monitoring device, embedded with extra-long autonomy feature, therefore operable in a cable-free manner. It integrates highly innovative and proven technologies, using ultra low power components. The complete solution provided with the Syscom Cloud Software (SCS) brings unrivaled ease of use and very quick return on investment.

Product supplied by Syscom Instruments.


Add to Quote

Product Features

  • Up to 6 to 8 months autonomy on battery
  • Compliant to many standards worldwide
  • Easy, cable-free installation
  • Optional embedded solar panel
  • Embedded 4G LTE modem


Galloping urbanization, new infrastructure projects in crowded locations, plethoric transportation modes, challenging construction works, tunneling and demolition sites, are now more and more instrumented in so called smart cities environments. This also brings unrivalled challenges to civil and structural engineering works and requires lots of sensor data for situation assessment in real time.

These multiple sources of vibrations, root causes to human disturbances or potential structural damages, are extensively monitored to ensure acceptable levels for people nuisances mitigation, risk management and assets sustainability.

Syscom recognizes these needs and address them with an innovative vibration compliance solution, redeemed possible with the latest available and proven technologies driven by IoT low power integrated components and new LTE communication networks. Envision this new generation of autonomous motion recorders providing affordable sensors, cable free installation, smart & sleek monitoring services for structural health monitoring and human comfort evaluation. Discover the Syscom vibration compliance solution.

Data Acquisition

Resolution 24 bits
Sampling-rate 500, 1000, 2000, 4000 samples per seconds
Number of channels 3 (X,Y, Z orthogonal axis)
Channel to channel skew None – simultaneous sampling on all channels
Dynamic range Typ. 110dB@1000sps
Data Filter IIR digital filters: k – 80 Hz, k – 250 Hz, k – 315 Hz; k=1 Hz, k=4.5 Hz
Trigger Principle Level trigger
Level trigger 0.1% to 100% full scale


Data Processing

Recording principle Event recording (time history), Background recording (continuous)
Header Contains status information at time of trigger and event summary
Event recording Max 60 seconds per event file, unlimited continuous event files
Pre-event recording 1 – 8 seconds (1s @ 4kHz – 8s @ 500Hz)
Post-event recording 1 – 30 seconds
Data memory Embedded memory chip, 2 GB. Data buffer automatically uploaded to SCS
Alarm triggers by SCS Smart alarming managed by Syscom Cloud Software
Alarm principle Two alarm levels independently settable as: threshold levels, curves defined
by the main regulations or user-defined curves
Alarm level range 0.1% to 100% full scale
Alarm based on standards Different standards: DIN 4150-3 (Germany), SN 640312
(Switzerland), Circulaire du 23/07/1986 (France) among others. Refer to SCS
User-defined alarm Amplitudes and frequencies individually settable for each axis
Notifications by SCS Various notification options, individually settable for each axis
Time synchronization Network Time Protocol (NTP)
Data/user interface User interface managed by Syscom Cloud Software
FTP FTP client in SCS to push data to any FTP server, ASCII data format available
Wireless Communication Mobile Network Multi-Band LTE Cat M1 and LTE NB-IoT, fallback 2G. Frequency band
width suitable for basement monitoring
SIM card Embedded SIM provided by Syscom


Other Features

ROCK keyboard LED 3 multicolors LEDs: Status, Record, 4G (Communication)
1 push-button On / Off button
Levelling Embedded Spirit level
Fixtures 2 holes, diameter 10.3 mm, 3 contact points according to DIN45669


Power Supply

Supply Voltage 5V DC through microUSB connector
Battery Compact high density Lithium battery, UN38.3 & IEC62133 certified
Autonomy Typ. 6 months on internal battery (based on 10 events per day, 1000sps,
continous monitoring)
Solar Panel Optional, 500mW solar panel for outdoor usage embedded on ROCK


I/O and Connectors

Type microUSB IP67 AB connector with protective cap
Power 5V DC
Power bank Optional, must provide 5V DC with microUSB type B connector


Sensors (Internal)

Triaxial Velocitymeter Type Velocity sensor with linearized frequency response
A3HV 315/1 (triaxial) (according to DIN 45669)
Triaxial Velocitymeter Principle Geophone
Measuring range full scale ± 135 mm/s – ± 5.3 in/s
Frequency range 1 – 350 Hz
Case-to-coil motion 4 mm p-p
Dynamic range > 130 dB
Linearity/Phase According to DIN 45669 (class 1)
Cross axis sensitivity According to DIN 45669 (<5%)
Orientation Horizontal (floor) mounting or vertical (wall mounting)
Self test Periodic Test-pulse, user selectable 1 – 30 days



Housing Aluminum, (L x W x H) 173 x 135 x 83 mm
Weight 2.3 kg
Protection degree IP65



Electrical Safety In compliance with IEC 61010
EMI/RFI In compliance with EN 61000
Environmental Shock: 30 g/11 ms half-sine
Heat: -20°C up to +50°C
Humidity: up to 100% rh
Vibration: up to 5 g (operating)
