Precision Liquid Settlement Array

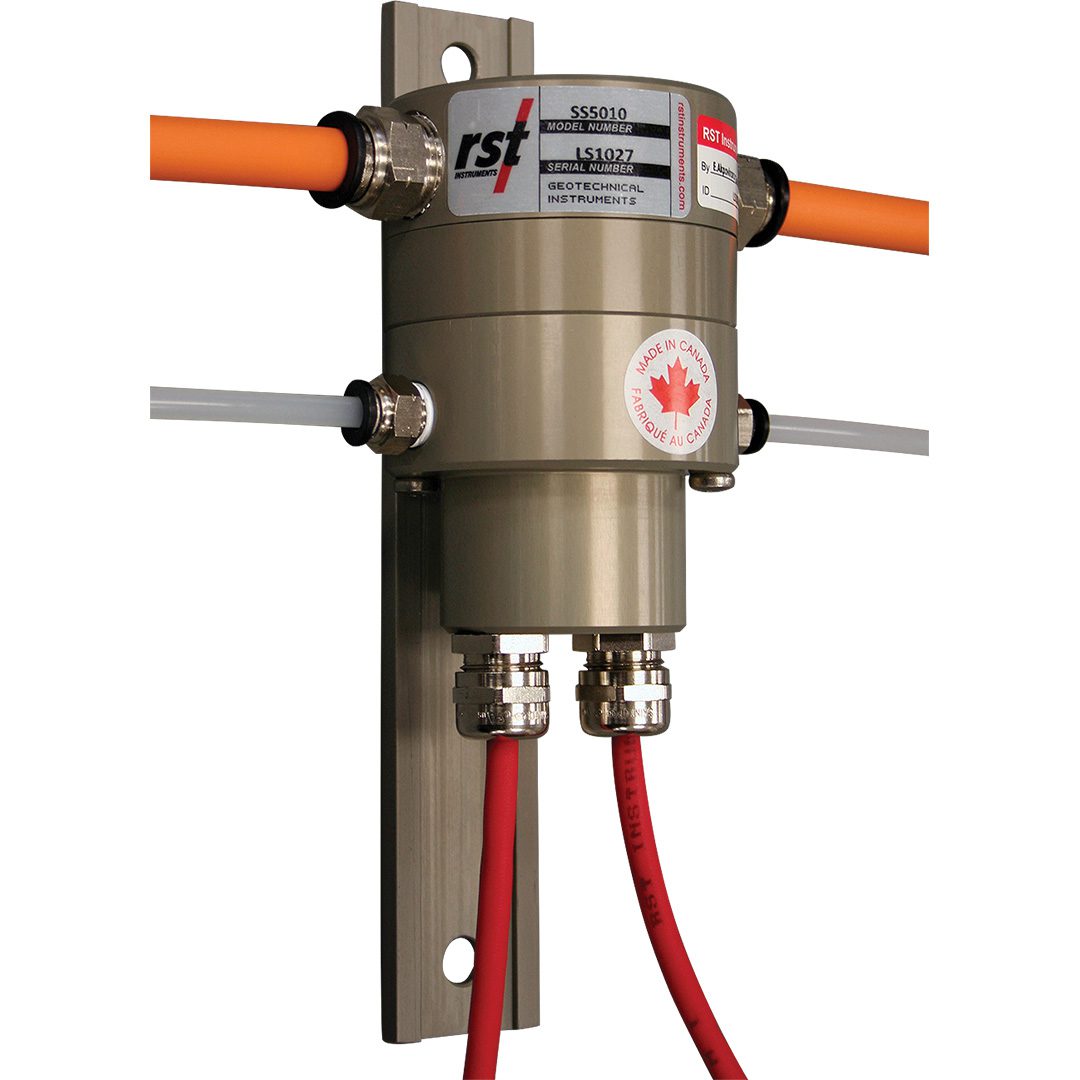

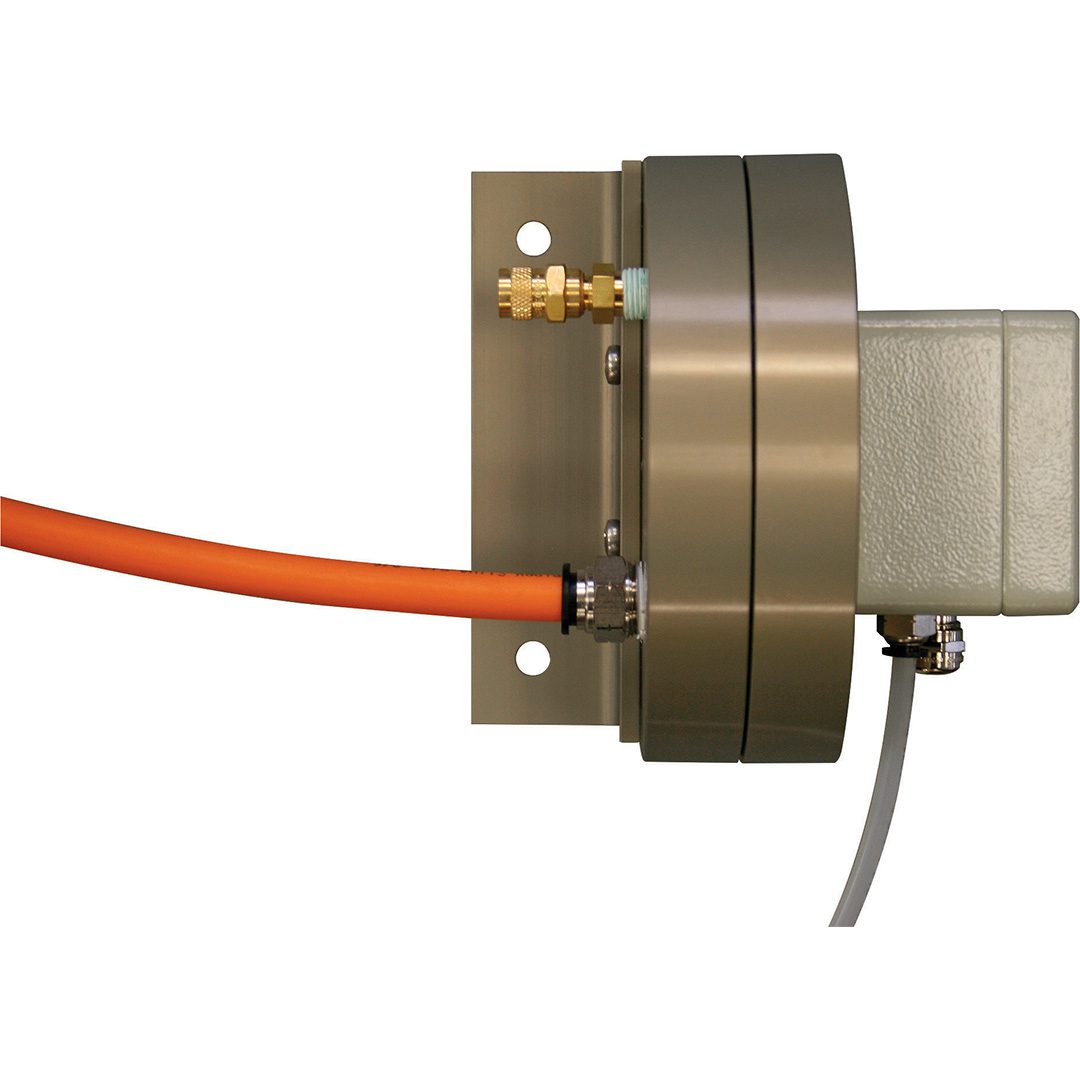

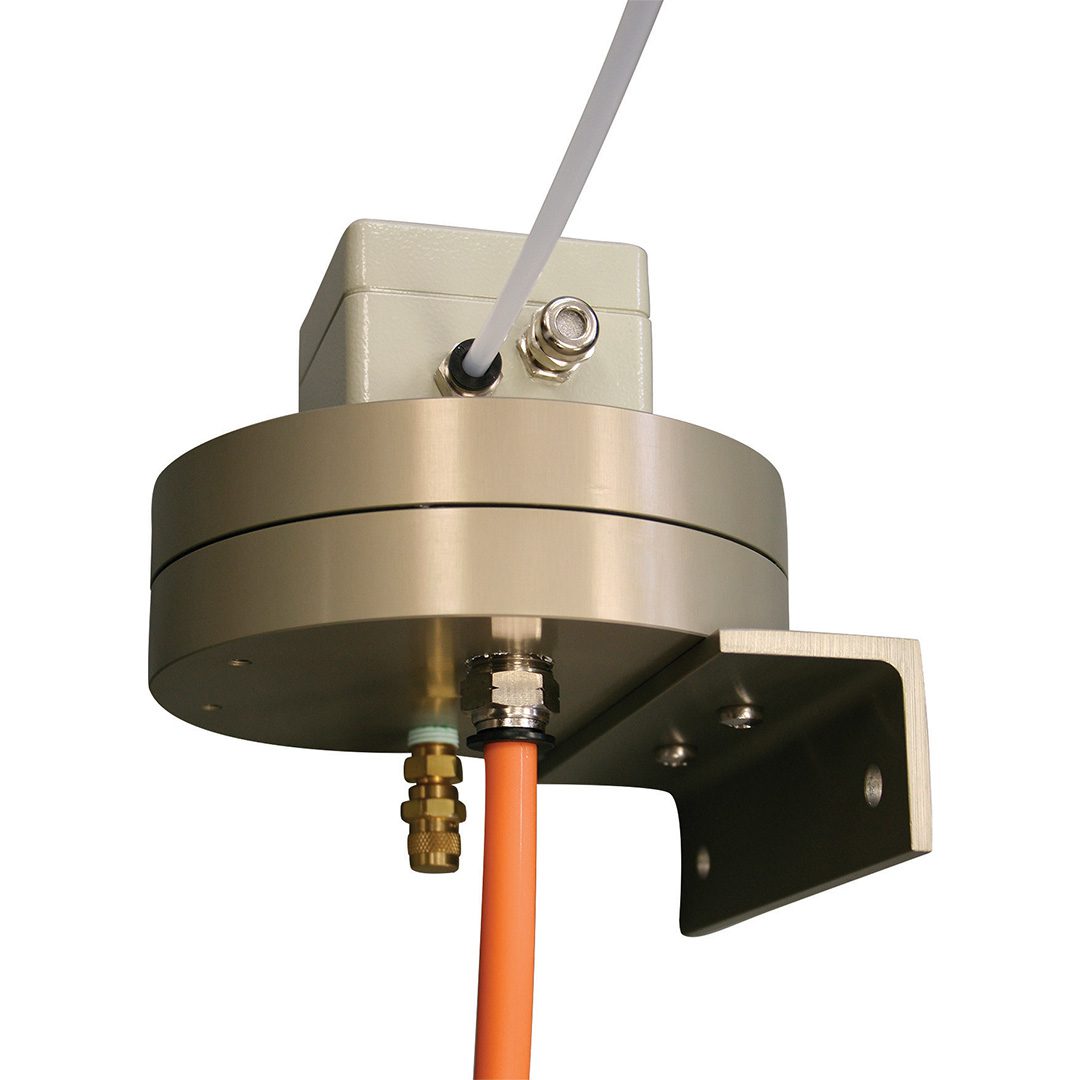

The Precision Liquid Settlement Array provides reliable, wireless, real-time remote monitoring of settlement and heave which may occur at excavation sites, tunneling projects, underground openings and related applications.
Overview
The Precision Liquid Settlement Array provides reliable, wireless, real-time remote monitoring of settlement and heave which may occur at excavation sites, tunneling projects, underground openings and related applications. It is ideal for monitoring under fills, preloads, embankments and grouting near structures. Users have real-time access through an internet connection on a PC and can also receive updates through email at chosen intervals, when used with an RST data logger.
PRECISION LIQUID SETTLEMENT ARRAY SPECIFICATIONS
| ITEM | SPECIFICATION |
| Measuring Ranges | 0.6, 1.8 and 3.0 m |
| Maximum Error (over full temperature and pressure range*) | 1 mm – for ‘SS5010’ at 0.6 m range (contact RST for additional error values) |
| Supply Voltage | 7 – 15 Volt |
| Temperature Range | -40°C to +50°C |
| Mounting Plate | Aluminum |
| Housing | Aluminum |
| Pressure Lines | XLPE/LDPE |
| Digital Data Cable | 4-wire (4 x 1 mm2) |
| Tubing – for liquid | 12.7 O.D.; 8.6 I.D. mm |
| Tubing – for air | 6.3 O.D.; 4.5 I.D. mm |
| Sensor Body Dimensions (excluding glands & tube ports) | Ø 76.2 x 111 H mm |
| Sensor Weight | 1 kg |
| Mounting Plate Size | 38 W x 6.3 D x 229 H mm |
| Mounting Plate Weight | 106 g |
| Long Term Stability | ≤ ±0.1% FSO/year |
* Sensors are calibrated over full temperature and pressure ranges for 24 hours at time of manufacturing.
* Calibration results can be viewed on the calibration sheet that will ship with your system.
Precision Liquid Settlement Arrays are commonly used for:
- Application where reliable, real-time monitoring of settlement and heave is required.
- Settlement monitoring underfills, preloads, and embankments.
- Settlement and rebound associated with tunneling and relate underground openings.
- Bottom heave in excavations.
- Heave as a result of grouting.
Precision Liquid Settlement Array Ordering Info
| ITEM | PART # |
| Precision Liquid Settlement Array – 0.6 m range | SS5010 |
| Precision Liquid Settlement Array – 1.8 m range | SS5020 |
| Precision Liquid Settlement Array – 3.0 m range | SS5030 |
| Fluid Reservoir | SS5100 |
| Tubing – for liquid | SS5200 |
| Tubing – for air | SS5300 |
| Cable | EL380004 |
| De-aired, 50/50 water/glycol mixture (1 L) | SSSP105M |
