Portable Tiltmeter

Category:

The RST Portable MEMS Tiltmeter utilizes a MEMS tiltmeter to measure tilt in either one or two axial planes perpendicular the surface of the base plate.

Quantity

Add to Quote
Speak with an Expert »

Product Features

  • Horizontal or vertical applications
  • High accuracy and repeatability
  • Readout units and portable sensors are lightweight and easy to use

Overview

The RST Portable MEMS Tiltmeter utilizes a MEMS tiltmeter to measure tilt in either one or two axial planes perpendicular the surface of the base plate. The output is a digital output and is directly proportional to the sine of angle of tilt. In the horizontal position the DC output is zero. Portable MEMS Tiltmeters require placing the tiltmeter in a reproducible position on a reference plate attached to the surface being monitored. It is designed for applications where a large number of measuring points are to be observed.


TILT SENSOR SPECIFICATIONS

ITEM SPECIFICATION
Range ±30°
Resolution ±0.0002° (0.004 mm/m)¹
Non-linearity ±0.0125% F.S. (±0.002°) (0.03 mm/m)
Repeatability ±0.0125% F.S. (±0.002°) (0.03 mm/m)
Sensor MEMS (Micro-Electro-Mechanical Systems) Accelerometer
Material Stainless steel / Aluminum NEMA 4X (IP-65) weatherproof enclosure
Weight 10.38 lbs (4.710 kg)



TILT PLATE SPECIFICATIONS

ITEM SPECIFICATION
Material 316 stainless steel
Dimensions 5.5 in. OD x 2.5 ID x 0.95 (140 x 63 x 14 mm)
4 pegs equally spaced on 4 in. (102 mm) dia.
Weight 1.7 lbs (0.77 kg)
Installation Epoxy or mechanical
4 x ¼ mounting holes on 4 in. (102 mm) dia.

Portable Tiltmeters are commonly used for:

  • Monitoring tilt of retaining and building walls.
  • Tilt of concrete dams.
  • Landslide monitoring.
  • Ground subsidence.
  • Building safety along adjacent excavations.
  • Applications where the failure mode is expected to have a rotational component.

Portable Tiltmeter Ordering

ITEM PART #
Portable MEMS Tiltmeter
– Digital Output (horizontal/vertical)		 ICTS0005B

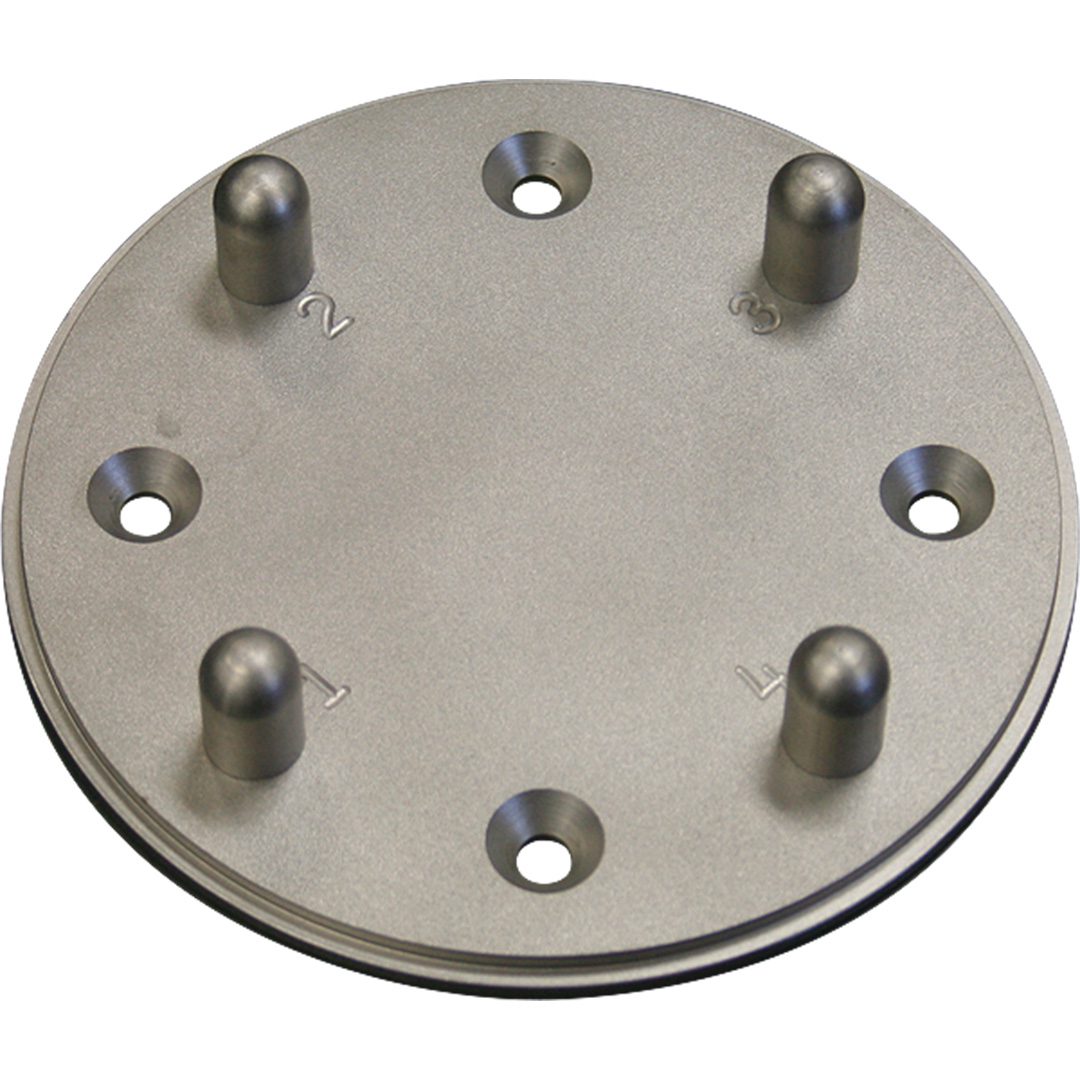

Tilt Plate ICTS0010

File Name

Portable Tilt Meter

Resource Type

Brochure
Language Version Download
English ICB0004Z

File Name

Portable Tilt Meter Mobile Software

Resource Type

Software

Note

Compatible with FieldPC2 and Nautiz X8 handheld.
From the extracted files, double click on the file titled as “Installing Portable Tiltmeter Host Software.txt”
Follow the instructions to install.

Language Version Download
English 1.0.2

File Name

Portable Tilt Meter Mobile software Manual

Resource Type

Manual
Language Version Download
English ICM0102B
