Multi-Point Borehole Extensometers
Stability and movement behavior of soil and rock masses can be determined by the use of borehole extensometers.

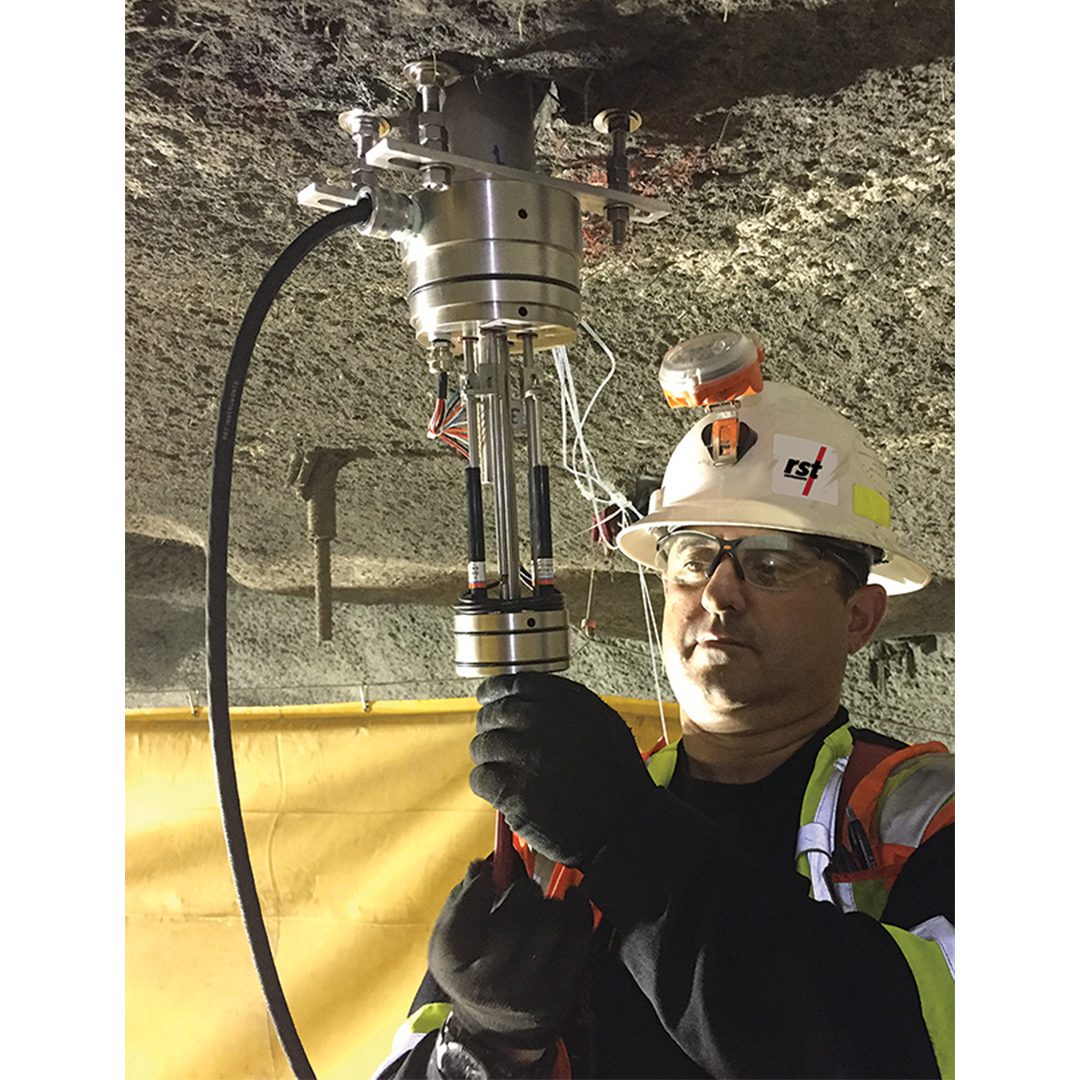

Overview
Stability and movement behavior of soil and rock masses can be determined by the use of borehole extensometers. A typical rod extensometer consists of a reference head, usually installed at the collar of a drill hole, and one or more in-hole anchors, each of which is fixed in place at a known depth in the borehole. As the soil or rock deforms, the distances between adjacent in-hole anchors change, as do the distances between the individual in-hole anchors and the reference head. This allows an accurate determination of distribution, magnitude, rate and acceleration of deformation in the rock or soil mass intersected by the drill hole.
The number of anchors and anchor depths should be selected based on site geology, geometry of structures in the area, and other site-specific details. The use of two, or more, anchors at various depths allows the engineer to distinguish between potentially dangerous deep seated movements and more trivial surface spalling.
| Specifications | |
| Sensor Range | 50, 100, 150, 200 mm |
| Accuracy | +/- 0.25% FSR |
| Resolution | 0.025% FSR |
| Linearity | 0.5% FSR |
| Operating Temperature | -20°C to 80°C |
| Thermal Zero Shift | <0.05% FSR/°C |
| Number of Anchors | 1 to 6 |
| Borehole Diameter Recommendation | Minimum 4″ (101 mm) |
Contact RST Instruments for available custom options.
| FLEXIBLE ROD
|
| ORDERING METHOD: 1) Select Above Grade or Below Grade Installation 2) Select Manual or Combination Head 3) Select type and range of sensors 4) Select type and length of rods 5) Select type of anchors |
| RIGID ROD SPECIFICATIONS
|
|
| Heads |
|
| ITEM | Part # |
| Combination Heads | MPBX |
| Mechanical Heads | EXMPBXMA1 (1 point)
EXMPBXMA2 (2 points) EXMPBXMA3 (3 points) EXMPBXMA4 (4 points) EXMPBXMA5 (5 points) EXMPBXMA6 (6 points) |
Rods
| 1/4 in. Standard, Stainless Steel Individual PVC Sheath | EXRO2502 (0.25 m) EXRO2505 (0.5 m) EXRO2510 (1.0 m) EXRO2515 (1.5 m) EXRO2520 (2.0 m) EXRO2530 (3.0 m) |
EXRO2535 (3 ft.) EXRO2550 (5 ft.) EXRO2600 (10 ft.) |
Anchors
| Groutable | EXMP11000M (metric) EXMP11000 (imperial) |
| Hydraulic Borros | EXHY13000 (double acting) |
| Groutable with Spring Legs | EXMP12000M (metric) EXMP12000 (imperial) |
| Bladder Anchor | EXIL14000 (customer specifies borehole diameter) |
Borehole Extensometers are commonly used for:
- Monitoring deformation around underground excavations.
- Consolidation settlement in soils.
- Strain in concrete structures.
- Pile load tests.
- Deformation of foundations in and under buildings.
- Movement behind the face of excavated slopes.
- Bottom heave in open cut excavations.
- Subsidence over mines, tunnels, etc.
- Monitoring of mine pillar deformation.
- Roof and wall stability in mines and underground workings.
View illustrations on how Borehole Extensometers are used for:
Ordering Info Considerations |
| Rod assembly type and material. |
| Number of anchors, type and depths. |
| Reference head type -if electrical, specify sensor type, range and accuracy. |
| Accessories required. |
| Cable length. |
| Borehole diameter. |
| Environmental considerations. |
| Extension or compression expectations. |
| Drilling method, soil and/or rock types. |
| Orientation of borehole. |
| How will the extensometer head be connected to the ground at the borehole collar? |
Accessories & Optional Equipment
|
|
| ITEM | PART # |
| Depth micrometer for Mechanical or Combination Heads. | EXDM150DT (metric, 0-150 mm range) |
| Hydraulic pump for hydraulic anchors. | EXHYDPUMP EXHYDPUMP-LARGE-3/16″ (up to 55 in³ oil capacity) EXHYDPUMP-SMALL-3/16″ (up to 20 in³ oil capacity) |
| Grout and/or bleed tubes |
Contact RST for details. |
| Portable readouts | |
| Terminal stations | |
| Data loggers | |
| Setting tools | |
| Rod spacers | |
Cables |
|
| ITEM | PART # |
| 1-3 Point Extensometer Cable | EL360008 |
| 4-6 Points Extensometer Cable | EL38007P |
