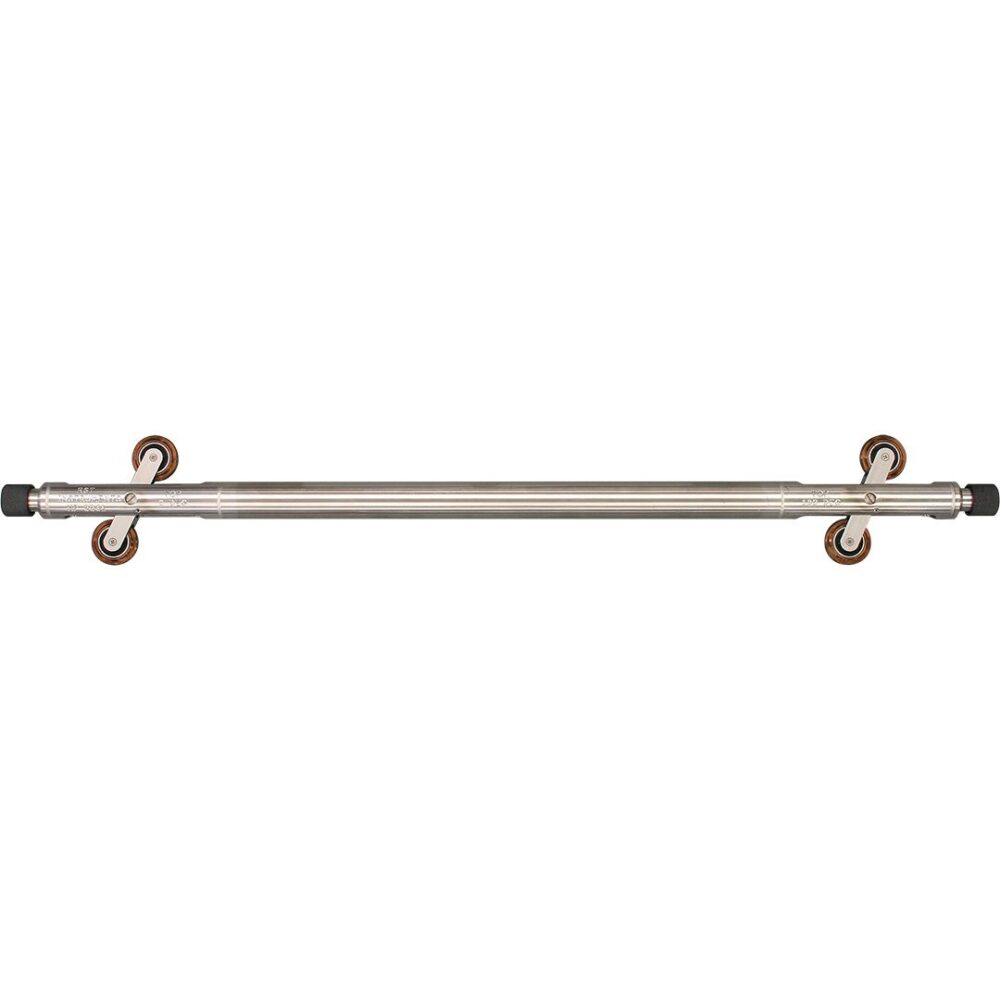

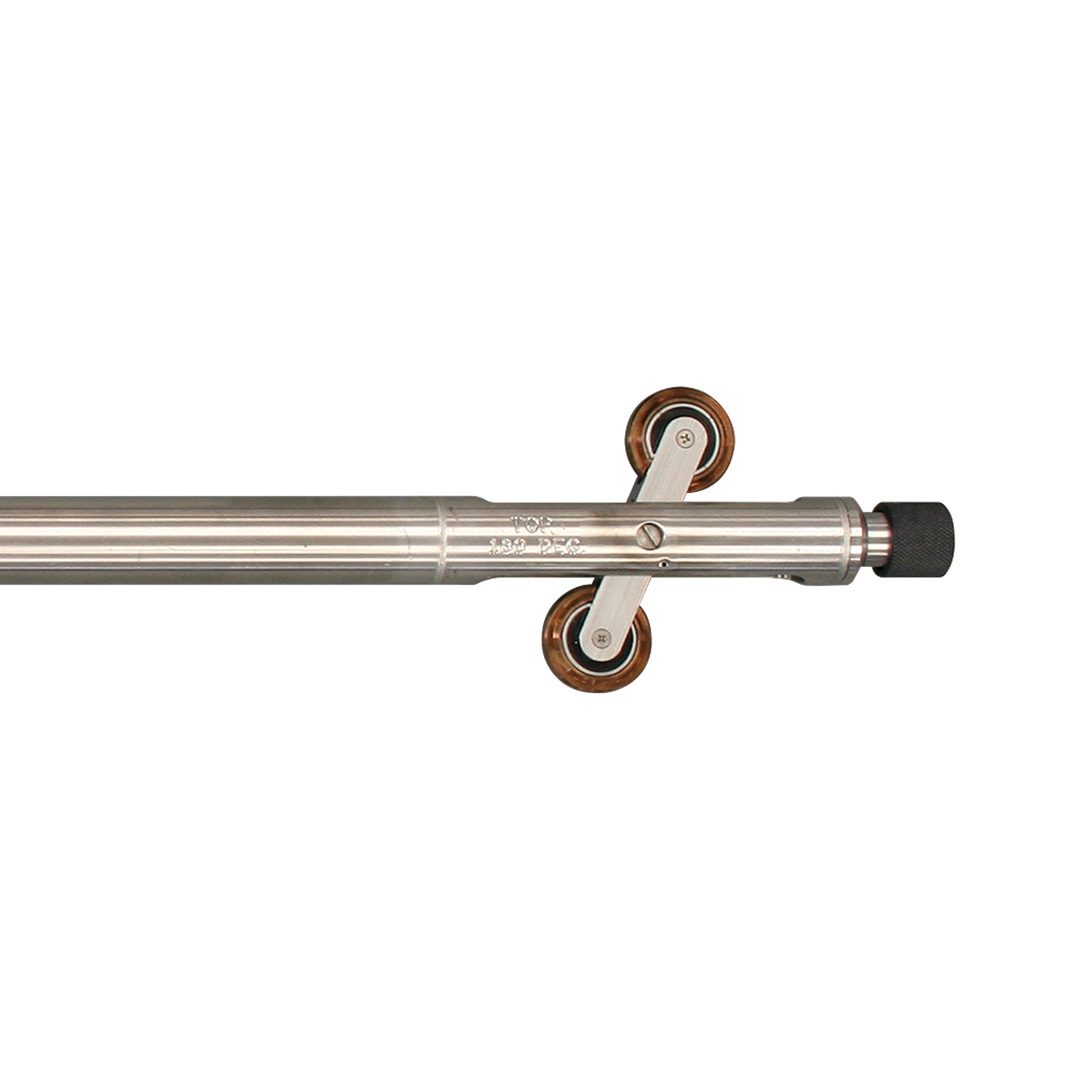

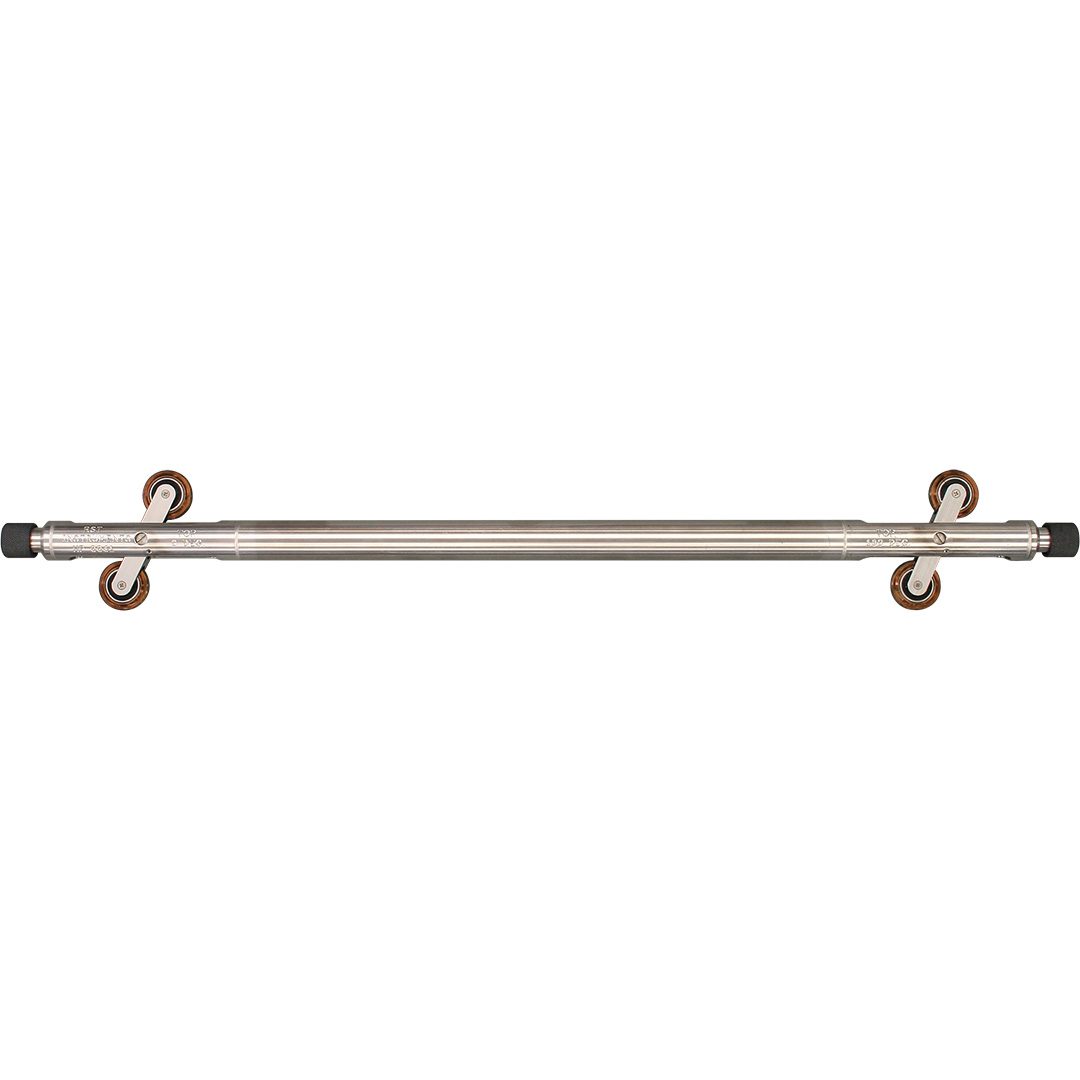

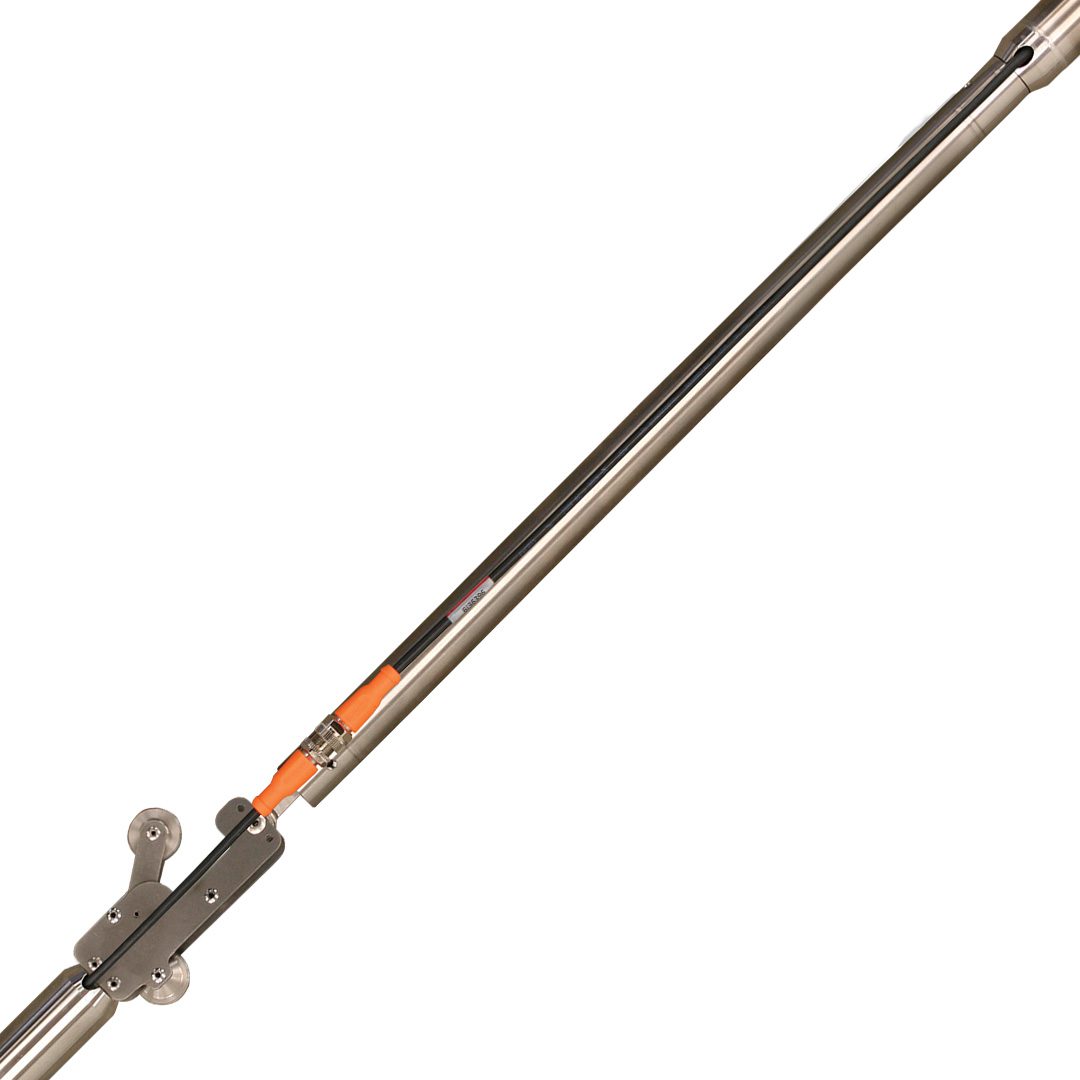

Digital Horizontal Inclinometer System
The Digital Horizontal Inclinometer System measures settlement or heave under embankments, dams, roadways, storage tanks, and landfills.
Overview
The Digital Horizontal Inclinometer System measures settlement or heave under embankments, dams, roadways, storage tanks, and landfills.
Essentially being a horizontal version of the RST Digital Inclinometer System (separate brochure), settlement profile surveys are conducted by running the probe in an inclinometer casing installed horizontally rather than vertically. Wireless communication between the inclinometer control cable and the Rugged Handheld Device ensures ease of use and reliability.
DIGITAL HORIZONTAL INCLINOMETER SYSTEM SPECIFICATIONS
| ITEM | SPECIFICATION |
| Sensor Type | MEMS (Micro-Electro-Mechanical Systems) Accelerometer |
| Measurement Range | ±30° from Horizontal |
| Casing Size Required | 70 mm (2.75”) or 85 mm (3.34”) |
| Materials | Stainless Steel |
| Readout | Rugged Handheld Device |
METRIC SYSTEM SPECIFICATIONS
| ITEM | SPECIFICATION |
| Data Resolution | 0.005 mm per 500 mm |
| Repeatability | ±0.002° |
| System Accuracy | ±2 mm per 25 m |
| Wheel Base | 500 mm |
| Probe Diameter | 25.4 mm |
| Probe Length (including lifting eye) | 708 mm |
| Temp. Rating | -40 to 60°C |
| Weight | 1.091 kg |
IMPERIAL SYSTEM SPECIFICATIONS
| ITEM | SPECIFICATION |
| Data Resolution | 0.00002 ft. per 2 ft. |
| Repeatability | ±0.002° |
| System Accuracy | ±0.1 in. per 100 ft. |
| Wheel Base | 24 in. |
| Probe Diameter | 1 in. |
| Probe Length (including lifting eye) | 32.19 in. |
| Temp. Rating | -40 to 140°F |
| Weight | 2.4 lbs. |
Digital Horizontal Inclinometer Systems are commonly used for:
- Monitoring settlement or heave under embankments, dams, roadways, storage tanks, and landfills.
- Observation of ground movements caused by construction and excavation, such as those involved with tunneling.
Digital Horizontal Inclinometer System Ordering
Metric Ordering:
| ITEM | PART # |
| 30 m System with 0.5 m Probe | IC32003H |
| 50 m System with 0.5 m Probe | IC32005H |
| 75 m System with 0.5 m Probe | IC32075H |
| 100 m System with 0.5 m Probe | IC32010H |
| 150 m System with 0.5 m Probe | IC32015H |
| Digital Horizontal 0.5 m Probe | IC32205H |
Imperial Ordering:
| ITEM | PART # |
| 100 ft. System with 2 ft. Probe | IC32110H |
| 150 ft. System with 2 ft. Probe | IC32115H |
| 200 ft. System with 2 ft. Probe | IC32120H |
| 300 ft. System with 2 ft. Probe | IC32130H |
| 500 ft. System with 2 ft. Probe | IC32150H |
| Digital Horizontal 2 ft. Inclinometer Probe | IC32202H |
Accessories Ordering
| ITEM | PART # |
| Inclinalysis™ Digital Inclinometer Analysis Software with USB Key | IC35600 |
| Pull Cable on a Reel | WLS-IC35805 |
| Cable Return Pipe | To be sourced locally, 0.5” PVC |
| Inclinometer Casing | Refer to separate brochure |
Additional Equipment
| ITEM | PART # |
| 3.34 in./85 mm Snap Seal Inclinometer Casing Dead-end Pulley | ICSC3DEP |
| 3.34 in./85 mm Glue & Snap Inclinometer Casing Dead-end Pulley | ICGC3DEP |
| 2.75 in./70 mm Snap Seal Inclinometer Casing Dead-end Pulley | ICSC2DEP |
| 2.75 in./70 mm Glue & Snap Inclinometer Casing Dead-end Pulley | ICGC2DEP |
