Cables

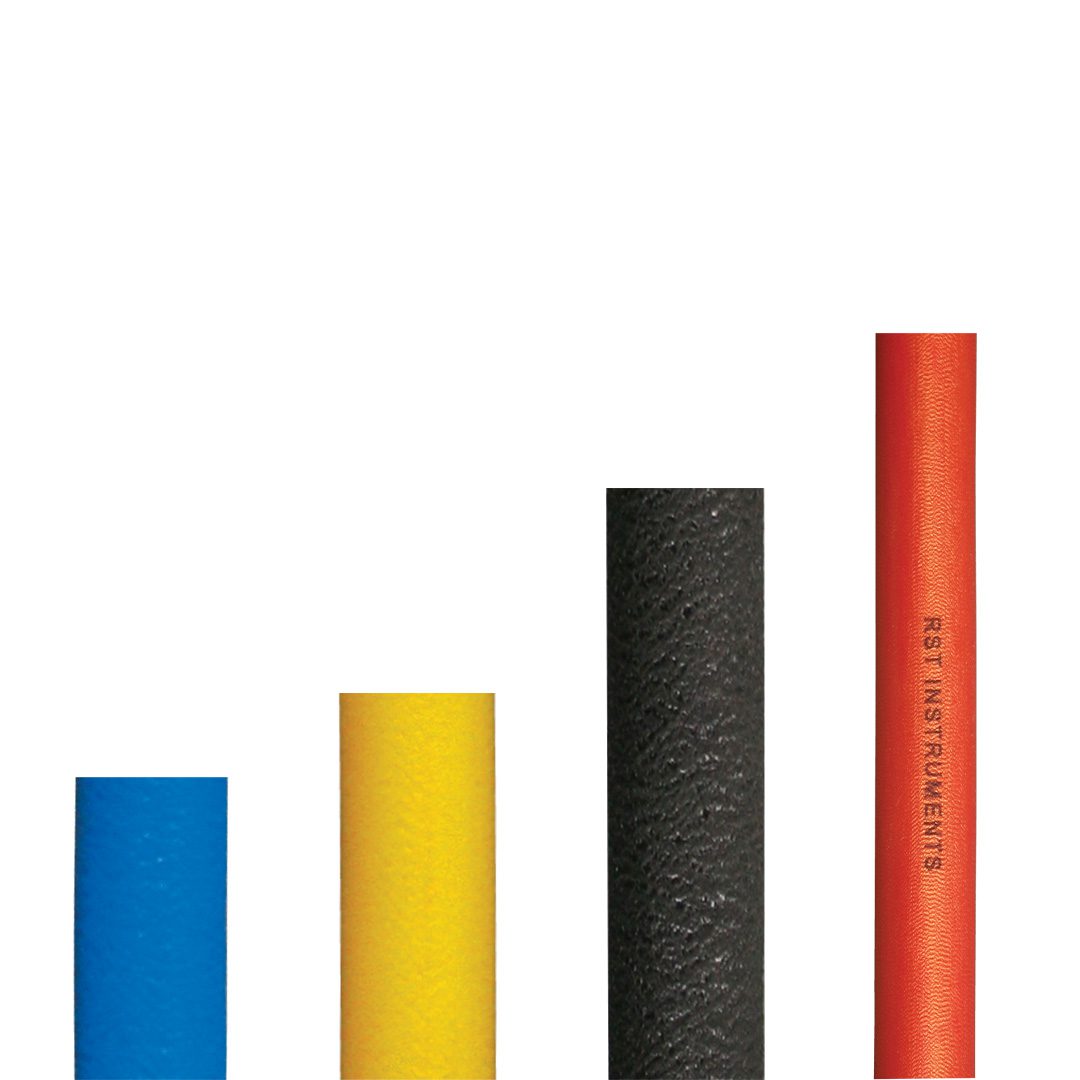

RST Instruments Ltd. offers a variety of cables that can be effectively matched to any instrument that requires a signal cable.
Overview
RST Instruments Ltd. offers a variety of cables that can be effectively matched to any instrument that requires a signal cable. RST uses Meter Marked Cable for a majority of our instruments that require a signal cable such as those used in Vibrating Wire Piezometers, Load/Pressure Cells, Crack Meters, Joint Meters, etc. In the unfortunate event of the cable being accidentally severed, the meter cable markings can be cross-referenced with the calibration record.
CABLE SPECIFICATIONS
| MODEL | DESCRIPTION | USED FOR: | CONDUCTORS | DIAM. O.D. |
| EL380002 | Abrasion-resistant polyurethane jacket. | Single Point Thermistors | 2 (1 twisted pair), 24 AWG (0.20 mm2) | 5.33 mm (0.210 in.) |
| EL380004 | Standard vibrating wire cable, abrasion-resistant polyurethane jacket. | · Vibrating Wire Piezometers and most other VW instruments · Strain Gauge Load Cells · MEMS In-place Inclinometers · MEMS Tilt Meters & Beams |
4 (2 twisted pairs), 22 AWG (0.33 mm2) | 6.35 mm (0.250 in.) |
| EL380004HDL | Heavy Duty Cable with a thick polyurethane jacket mold for added protection. | Direct burial of surface cable for: · Vibrating Wire Piezometers and most other VW instruments · MEMS In-place Inclinometers · MEMS Tilt Meters & Beams |
4 (2 twisted pairs), 22 AWG (0.33 mm2) | 9.52 mm (0.375 in.) |
| EL380004K | Kevlar® reinforced, non-stretch polyurethane jacketed cable for rigorous installations where the stretching of the cable is a concern. | VW Piezometers | 4 (2 twisted pairs),22 AWG (0.33 mm2) | 6.35 mm (0.250 in.) |
| EL370004 | Thin polyurethane jacket mold. | · VW Rebar Strain Meters · VW Embedment Strain Gauges · VW Arc Weldable Strain Gauges |
4 (2 twisted pairs), 24 AWG (0.20 mm2) | 4.76 mm (0.1875 in.) |
| EL342202 | HDPE jacket. | · Used in acidic applications (leachate) and land fills · Saltwater |
4 (2 twisted pairs), 22 AWG (0.33 mm2) | 6.35 mm (0.250 in.) |
| EL35VT04 | Vented polyurethane cable for barometric compensation; Kevlar® reinforced. | Low-Pressure Vented Transducers | 4 (2 twisted pairs), 22 AWG (0.33 mm2) | 7.92 mm (0.312 in.) (jacket) 3.17 mm (0.125 in.) OD (vent tube) |
| EL380006 | Water blocked, polyurethane jacket. Grease blocked. | · In-Place Tiltmeters (analog biaxial) · Strain Gauge Analog Piezometer with Thermistor · Push-In Pressure Cells · Thermistor Strings |
6 (3 twisted pairs), 22 AWG (0.33 mm2) | 6.35 mm (0.250 in.) |
| EL360008 | Polyurethane jacket. | · MPBX Heads · VW Load Cells · Remote multiplexer connection cable to logger · Thermistor Strings |
8 (4 twisted pairs), 20 AWG (0.52 mm2) | 8.13 mm (0.320 in.) |
| EL380012 | Kevlar® reinforced, polyurethane jacket. Grease blocked. | · Thermistor Strings and VW Piezometer Strings · VW Load Cells · MPBX Heads |
12 (6 twisted pairs), 24 AWG (0.20 mm2) | 10.54 mm (0.415 in.) |
| EL380007P | Polyurethane jacket. | · Thermistor Strings and VW Piezometer Strings · VW Load Cells · MPBX Heads |
14 conductors (7 pairs), 22 AWG (0.33 mm2) | 9.84 mm (0.3875 in.) |
| EL380013P | Kevlar® reinforced, polyurethane jacket. Grease blocked. | · Thermistor Strings and VW Piezometer Strings · VW Load Cells · MPBX Heads |
26 (13 twisted pairs), 24 AWG (0.20 mm2) | 10.88 mm (0.425 in.) |
Cables are commonly used for various types of sensors, in various environments, requiring a signal cable.
